Industrial Desktop Motherboards – μATX

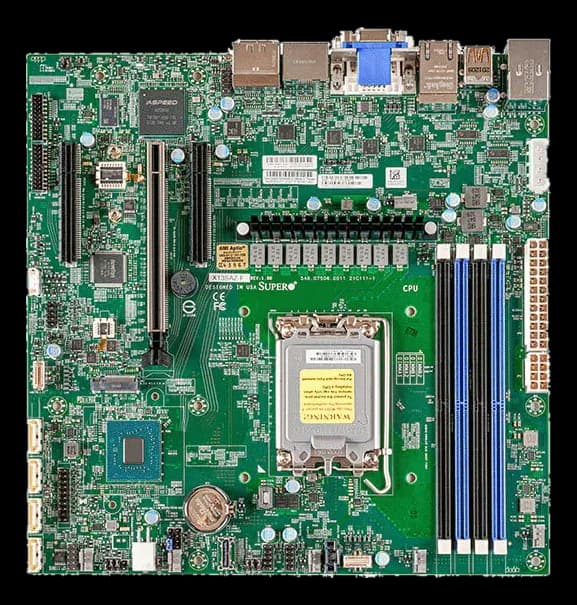

MBD-X13SAZ-FIndustrial microATX motherboard with Intel R680E chipset and LGA1700 socket
- Manufacturer
- Configurations
- 2 available configurations
MBD-X13SAZ-F is an industrial microATX motherboard: it takes Intel Core i9/i7/i5/i3 processors, 12th Gen (Alder Lake), 13th Gen (Raptor Lake) and 14th Gen (Raptor Lake-R), with TDP up to 125 W. Memory reaches 128 GB, with error correction.
Expansion offers PCIe x16, PCIe x8 and PCIe x4 slots. Video outputs cover VGA, HDMI and DVI. Storage covers M.2 NVMe and SATA. Operating range is declared between 0 and 60 °C.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 14th gen (Raptor Lake-R)
- Processor: Single L0 (LGA-1700); Intel® Core™ 3/5/7 (Series 2) and 14th/13th/12th Gen Core i3/i5/i7/i9 Processors
- CPU TDP: 125 W
- TPM: TPM 2.0
Technical specifications
| Chipset | R680E |
|---|---|
| CPU class | Intel Core i3/i5/i7/i9 |
| BIOS | AMI UEFI · SMBIOS 3.0 or later; UEFI 2.7; PCI FW 3.0; ACPI 6.1; RTC (Real Time Clock) Wakeup |
| CPU generation | 14th gen (Raptor Lake-R)12th gen (Alder Lake)13th gen (Raptor Lake) |
| Processor | Single L0 (LGA-1700); Intel® Core™ 3/5/7 (Series 2) and 14th/13th/12th Gen Core i3/i5/i7/i9 Processors |
| CPU TDP | 125 W |
| TPM | TPM 2.0 |
| CPU cores | 24–24 |
| CPU socket count | 1–1 |
| CPU threads | 24–24 |
| CPU socket | LGA1700 |
| RAM type | DDR5 |
|---|---|
| ECC support | sì |
| Maximum RAM | 128–128 GB |
| Memory | Slot Count: 4 DIMM Slots; Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM · 1.1V · Corrects single-bit errors; Detects double-bit errors (using ECC memory) |
| Storage | 4 SATA (6Gbps) via Intel R680E; RAID 0/1/5/10 support · 1 M.2 PCIe 4.0 x4 slot (M-key 2280/22110) |
|---|
| Video outputs | 1 VGA port(s); 1 DVI - D port(s); 2 Display Port port(s); 1 port(s) supporting 4K@60Hz as specified in HDMI® 2.0b |
|---|
| USB ports | 4 USB 2.0 port(s) (header); 4 USB 3.2 Gen2 Type-A port(s) (Rear); 2 USB 3.2 Gen2 port(s) (Header); 2 USB 3.2 Gen1 port(s) (Header) |
|---|---|
| Audio | Rear Audio; ALC 888S HD Audio |
| Ethernet ports | Dual LAN with Intel® Ethernet i225LM |
| Serial interfaces | 2 COM port(s) (header) |
| Other I/O | 6x 4-pin fan headers (up to 6 fans) |
| Form factor | microATX |
|---|
| Expansion | 1 PCIe 5.0 x16 slot; 2 PCIe 4.0 x4 (in x8) slots |
|---|
| Power input | ACPI Power Management; ATX Power connector; +12V DC Power Input |
|---|
| Dimensions | 243.8 × 243.8 |
|---|---|
| Other features | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Power Manager (SPM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!; Plug-ins for 3rd Party Software; IPMI Utilities · Wake-on-LAN; Watchdog; KVM with dedicated LAN · Cryptographically Signed Firmware; Secure Boot; Secure Firmware Updates; System Lockdown; Supports pluggable modules, header-only on motherboard · +1.35V,+1.5V,+1.8V,+12V,+3.3V,+5V,+5V standby,1.05 (PCH),6 fans with tachometer status monitoring,BMC/IPMI Heartbeat LED,Chipset voltage,CPU temperature,Dual cooling zones,Memory temperature,UID,VBAT · Power LED · 12V DC or ATX Power Source; ACPI power management; ATX power connector; Chassis intrusion detection; M.2 NGFF connector; RoHS |
| Storage temperature | -40–85 °C |
|---|---|
| Operating temperature | 0~60 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| MBD-X13SAZ-F-B |
| MBD-X13SAZ-F-O |
