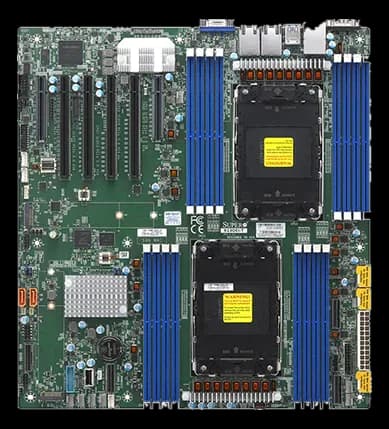

MBD-X13DEI-TDual socket LGA4677 ATX motherboard for Intel Xeon
- Manufacturer
- Configurations
- 2 available configurations
MBD-X13DEI-T is a server motherboard in ATX form factor with two LGA4677 sockets: the Intel Xeon processors work in parallel on the same board, with memory and I/O lanes split between the two sockets.
The Intel C741 chipset handles DDR5 memory with error correction and the platform accepts processors with TDP up to 350 W, a value that conditions the choice of heatsink and of air flow in the enclosure. Graphics and the VGA port go through the ASPEED AST2600 BMC, the same controller that exposes remote management; a serial port remains available for the service console.
At a glance
- CPU generation: 5th gen Scalable (Emerald Rapids)
- CPU TDP: 350 W
- TPM: Header (provision)
- CPU cores: 60
- CPU socket count: 2
Technical specifications
| BIOS | AMI 32MB UEFIPlug and Play (PnP) PCI FW 3.2 ACPI 6.4 UEFI 2.8A SMBIOS 2.8/3.5AMIBIOS™AMI SPI BIOS; EFI GUI, SPI dual/quad speed control, riser card auto detection support, Real Time Clock (RTC) wakeup, IPMIView, SMCIPMITOOL, IPMI CFG, Redundant power supply unit detection, SPM, and SU(UEFI) |
|---|---|
| CPU generation | 5th gen Scalable (Emerald Rapids)4ª/5ª gen Intel Xeon Scalable4th gen Scalable (Sapphire Rapids) |
| CPU TDP | 350 W |
| TPM | Header (provision) |
| CPU cores | 60 |
| CPU socket count | 2 |
| CPU class | Intel Xeon |
| Chipset | C741 |
| Graphics | Graphics controller and VGA support via ASPEED AST2600 BMC |
| CPU socket | LGA4677 |
| RAM type | DDR5 |
|---|---|
| ECC support | Yes |
| Memory | DDR5 (5600/4800 MT/s max.) |
| Storage | • One SlimSAS x8 connector (JS1 for SATA0 - 7) with support of eight Intel PCH SATA 3.0 connections (RAID 0, 1, 5, and 1ACPI power management Chassis intrusion detection Control of power-on for recovery from AC power loss M.2 NGFF connector Node manager supporPCIe 4.0 x2 M.2 NVMe SSDs in the 2280 and 22110 form factorsvia SlimSAS 2 SATA (6Gbps) via Intel® C741 |
|---|
| USB ports | Back Panel USB 3.0 Ports (5 Gbps, Type-A)Internal USB 2.0 Vertical Type-A Connector2 USB 2 port(s) (Header) 2 USB 3 port(s) (Header) 4 USB 3 port(s) (Rear) 1 USB 2 Type-A port(s) |
|---|---|
| Ethernet ports | Dual LAN with Broadcom BCM57416 10GBase-TTwo 10G BaseT Ethernet LAN ports supported by Broadcom 57416 on LAN Controller1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| Serial interfaces | One serial port on the rear I/O panel (COM1) |
| Form factor | E-ATX |
|---|
| Expansion | Two PCIe 4.0 x2 NVMe M.2 slots (with support of M-Key 2280 and 22110)Two PCIe 5.0 x8 slots (SLOT1 supported by CPU1, SLOT6 supported by CPU2)(PCIe-x8)Four PCIe 5.0 x16 slots (SLOT2/SLOT3 supported by CPU1, SLOT4/SLOT5 supported by CPU2)(PCIe-x16) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
