WAFER-EHL23.5" SBC with onboard Intel Celeron J6412 and independent triple display
- Manufacturer

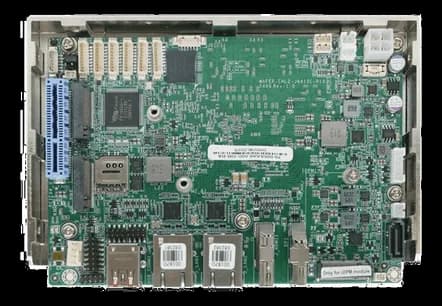

WAFER-EHL2 is a single board computer in 3.5" format, 146 mm x 102 mm, built on the Intel Elkhart Lake platform with soldered Atom x6000 series, Pentium or Celeron SoC. It is the board class that fits inside machines, kiosks and measuring equipment, where the mechanical volume is given and not negotiable.
Memory is onboard, not socketed: 8 GB LPDDR4x at 3200 MHz soldered, with support up to 16 GB. Wireless expansion goes through the M.2 A key (2230) slot for Wi-Fi and Bluetooth, which leaves the PCIe bus free for the application card.
Available configuration: WAFER-EHL2-J6412C-R10, with Intel Celeron J6412 SoC (up to 2.6GHz, quad-core, 10W TDP) and 8 GB LPDDR4x onboard by default.
At a glance
- Independent triple display DP, HDMI and iDPM
- PCIe x4 slot with Gen3 x2 signal
- M.2 B key 3042/2242 with SIM holder
- +12V DC input in AT/ATX mode
- SATA 6Gb/s with power connector
Technical specifications
| Processor | Onboard Intel® Atom™ x6000 series / Pentium® / Celeron® (Elkhart Lake platform)Intel® Celeron® J6412 on-board SoC (up to 2.6GHz |
|---|
| Memory | Onboard 8GB 3200MHz LPDDR4x, support up to 16GB |
|---|
| SATA ports | 1× SATA : 6Gb/s with 5V SATA power connector |
|---|
| Video outputs | 1 x Display Port : up to 4096 x 2160 @60Hz1 x HDMI™ : up to 4096 x 2160 @30Hz1 x iDPM : 3040 slot (only for iEi eDP/LVDS/VGA module) |
|---|
| Digital I/O | 1× DIO : 12-bit digital I/O (2x7 pin) |
|---|---|
| Audio | 1× HD Audio : 1× iAUDIO, support IEI AC-KIT-888S Audio Module（2 x 5 pin） |
| Ethernet ports | LAN1: Intel® I225V 2.5GbE controllerLAN2: Intel® I225V 2.5GbE controller |
| Serial interfaces | 4× Internal RS-232 1x9 pin, P=1.252 x Internal RS-232/422/485 1x9 pin, P=1.25 |
| USB ports | 4× Internal USB 2.0 2x4 pin, P=2.002 x External USB 3.2 Gen2x1 : 10Gb/s |
| Form factor | 3.5" SBC |
|---|
| Supply voltage | +12V DC input power (AT/ATX mode) |
|---|
| Dimensions | 146mm x 102mm |
|---|---|
| Weight | 0.35–0.85 kg |
| Operating temperature | 0–60 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
