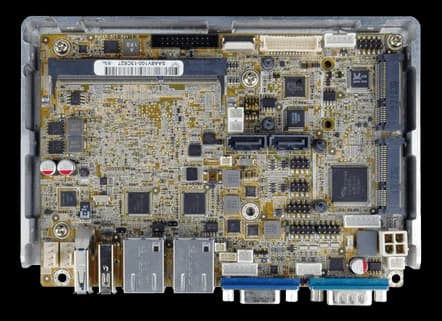

WAFER-BT3.5" SBC with on-board 22 nm Intel Atom or Celeron SoC, dual display
- Manufacturer
- Configurations
- 3 available configurations
WAFER-BT is a single board computer in 3.5" form factor designed for compact equipment: HMI, information kiosks, machine control and field terminals. It weighs 0.25 kg and is powered from a 12 V DC input, with selectable AT/ATX mode.
What sets it apart is the SoC choice: the same board accepts six soldered processors, from the single-core Atom E3815 (5 W TDP) to the quad-core Celeron J1900 (10 W TDP). You change the thermal budget, not the mechanical layout or the cabling.
Available in the configurations WAFER-BT-N29301-R22, WAFER-BT-N28071-R22, WAFER-BT-J19001-ECO-R22, WAFER-BT-N29301-R20, WAFER-BT-N28071-R20, WAFER-BT-J19001-R20 and WAFER-BT-J19001-ECO-R20; the ECO suffix indicates the variant with ECO packing.
At a glance
- Single-channel DDR3L SO-DIMM up to 8 GB
- VGA output up to 2560x1600 at 60 Hz
- 24-bit dual-channel LVDS up to 1920x1200
- IEI One Key Recovery for system backup
- CE and FCC compliance
Technical specifications
| Processor | Intel® Atom™ E3815 on-board SoC (1.46GHz(optional)Intel® Atom™ E3825 on-board SoC (1.33GHz(optional)Intel® Atom™ E3845 on-board SoC (1.91GHz(optional)Intel® Celeron® J1900 on-board SoC (2GHz(optional)Intel® Celeron® N2807 on-board SoC (1.58GHz(optional)Intel® Celeron® N2930 on-board SoC (1.83GHz(optional) |
|---|
| Memory | One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot supports up to 8 GB |
|---|
| SATA ports | 2× SATA :3Gb/s with 5V SATA power connector |
|---|
| Video outputs | 1 x VGA :up to 2560x1600@60Hz1 x iDP :for HDMI™, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)1 x LVDS :24-bit dual-channel LVDS connector (up to 1920x1200@60Hz) |
|---|
| Keyboard & pointing device | 1× PS/2 :1x6 pin |
|---|---|
| Audio | Description: Realtek ALC662 HD codec |
| Ethernet ports | 2× LAN :2 x PCIe GbE by Intel I210 controller |
| Serial interfaces | 2× Internal RS-232 :2x5 pin, P=2.01 x Internal RS-422/485 :1x4 pin, P=2.0 |
| USB ports | 4× Internal USB 2.0 :2x4 pin, P=2.0 |
| Form factor | 3.5" SBC |
|---|
| Supply voltage | 12V only DC input,1× internal power connector(2× 2 pin),Support AT/ATX mode |
|---|
| Dimensions | 146 x 102 mm |
|---|---|
| Weight | 0.25 kg |
| Operating temperature | -20–60 °C |
|---|
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| WAFER-BT-J19001-ECO-R22 |
| WAFER-BT-N28071-R22 |
| WAFER-BT-N29301-R22 |
