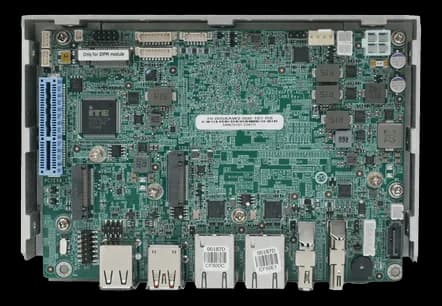

WAFER-ADL-N3.5" SBC with Intel Alder Lake-N SoC, optional Wi-Fi and Bluetooth
- Manufacturer
WAFER-ADL-N is a 3.5" form factor single board computer built around the on-board Intel Alder Lake-N/Amston Lake SoC of 12th and 13th generation, a quad-core from the Intel Processor N series with Intel UHD graphics. It fits in 146 mm x 102 mm at 0.35 kg and operates between −10 and 60 °C, for HMI, kiosks and machine control where the volume is defined before the board.
What sets it apart is expansion: a PCIe x4 slot with PCIe Gen3 x2 signal for riser cards and an M.2 M Key 2280 sit alongside SATA 6Gb/s. Power follows the ATX/AT standard with selectable AT/ATX mode, not a dedicated DC input.
Available configurations: WAFER-ADL-N97C-R10 with N97 SoC, WAFER-ADL-N200C-R10 and WAFER-ADL-N200C-R11 with N200 SoC.
At a glance
- Dual channel LPDDR5x, up to 16 GB
- Triple independent display via HDMI, DP and iDPM
- Two 2.5GbE LAN ports with Intel I225-V
- M.2 A Key 2230 for Wi-Fi and Bluetooth
- RoHS compliant
Technical specifications
| Processor | Support 12th Intel® mobile AlderLake-N on board SoC12th/13th Intel® Alder Lake-N/Amston Lake on board SoCQuad-Core Intel® Processror N SeriesIntel® Alder Lake-N N200 SoC(optional)Intel® Alder Lake-N N97 SoC(optional) |
|---|---|
| Graphics | Intel® UHD Graphics |
| Memory | Dual channal LPDDR5x 8G pre-installed (system max. 16G) · up to 4800Hz |
|---|
| SATA ports | 1× SATA : 6Gb/s |
|---|
| Video outputs | Support triple independent display via HDMI™, DP and iDPM slot1× iDPM (only for IEI eDP/LVDS/VGA module) |
|---|
| Audio | 1× HD Audio : 1× IAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin) |
|---|---|
| Ethernet ports | LAN1: Intel® I225V 2.5GbE controller · Suport two 2.5GbE LAN with i225-V · ranging from 100 Mbps to 2.5 Gbps |
| Serial interfaces | 2× Internal RS-232/422/485 (1x9 pin, P=1.25) |
| USB ports | 2× External USB 3.2 Gen2x1 (10Gb/s, Type A) |
| Wireless | Bluetooth(optional)Wi-Fi(optional) |
|---|
| Form factor | 3.5" SBC |
|---|
| Supply voltage | ATX/AT power supply |
|---|
| Dimensions | 146mm x 102mm |
|---|---|
| Weight | 0.35 kg |
| Operating temperature | -10–60 °C |
|---|
| Certifications | RoHS |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
