NANO-ADL-PEPIC SBC with Intel Alder Lake-P/Raptor Lake-P SoC and two 2.5GbE ports
- Manufacturer
- Configurations
- 4 available configurations

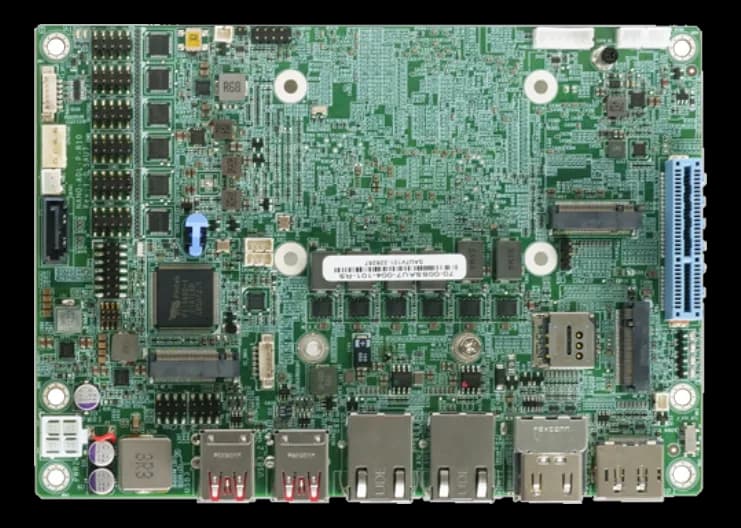

NANO-ADL-P is an industrial motherboard in EPIC form factor measuring 115 mm x 165 mm, net weight 0.4 kg, intended for integration into compact embedded systems where board footprint and thermal profile are design constraints.
Two architectural choices set it apart: the iDPM interface developed by IEI, which through dedicated converter modules adds eDP, LVDS, VGA or DisplayPort without taking up the HDMI outputs, and the integrated graphics section, Intel UHD Graphics for Celeron and Core i3, Intel Xe Graphics architecture for Core i5 and Core i7. Expansion runs through M.2 A key, M.2 B key and a PCIe x4 slot for riser cards.
Available configuration: NANO-ADL-P-i5EC-R11, with Intel Core i5-1245UE and 8 GB LPDDR4x on-board.
At a glance
- Two Intel I225V/I226V 2.5GbE LAN
- On-board LPDDR4x up to 32 GB
- Four external USB 3.2 Gen2x1
- Two internal RS-232/422/485 serial ports
- 12 V DC power input
Technical specifications
| Processor | Intel® Celeron® 7305E (1.0 GHz, 5-core, 15W TDP)Support 12th/13th Intel® mobile Alder Lake-P/Raptor Lake-P on board SoCIntel® Core™ i3-1215UE (up to 4.4GHz(optional)Intel® Core™ i5-1245UE (up to 4.4GHz(optional)Intel® Core™ i7-1265UE (up to 4.7GHz(optional) |
|---|---|
| Graphics | Intel® Xe Graphics architecture for Core i5 and Core i7 · Intel® UHD Graphics for Celeron® and Core i3 |
| Memory | On-board LPDDR4x 3200 MHz 8GB up to 32GB |
|---|
| SATA ports | 1× SATA (6Gb/s) |
|---|
| Video outputs | 2× HDMI™ : up to 4096× 2160 @ 30Hz1 x eDP/M 3040 slot (only for eDP/LVDS/VGA module) |
|---|
| Digital I/O | 1× 12-bit Digital I/O (2x7 pin) · 12-bit GPIO |
|---|---|
| Other I/O | 1× I²C (1x4 pin) |
| Audio | 1× HD Audio : 1× IAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin) |
| Ethernet ports | LAN1: Intel® I225V/I226V 2.5GbE controllerLAN2: Intel® I225V/I226V 2.5GbE controller |
| Serial interfaces | 4× Internal RS-232 (2x5 pin, P=2.0)2 x Internal RS-232/422/485 (2x5 pin, P=2.0) |
| USB ports | 4× Internal USB 2.0 (2x4 pin, P=2.0)4 x External USB 3.2 Gen2x1 : 10Gb/s(Type A) |
| Wireless | BluetoothWi-Fi |
|---|
| Form factor | EPIC |
|---|
| Supply voltage | 12V DC power supply |
|---|
| Dimensions | 115 mm x 165 mm |
|---|---|
| Weight | 0.4 kg |
| Operating temperature | -10–60 °C |
|---|
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NANO-ADL-P-CEC-R11 |
| NANO-ADL-P-i3C-R10 |
| NANO-ADL-P-i5EC-R11 |
| NANO-ADL-P-i7EC-R11 |
