WAFER-EHL-x60003.5" SBC with on-board Intel Elkhart Lake Atom x6000 and triple display
- Manufacturer

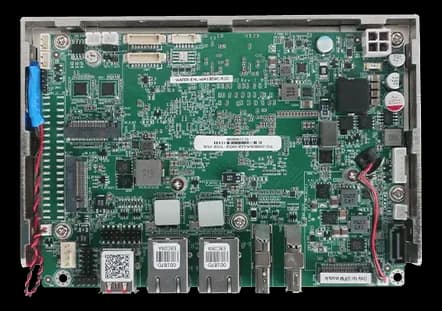

WAFER-EHL-x6000 is an embedded board in 3.5" form factor, 146 x 102 mm, with on-board Intel Elkhart Lake Atom x6000 series SoC: you integrate it into HMI, machine control and kiosks, where the mechanical volume is defined upstream.
The axis that sets it apart is video: three outputs with DisplayPort up to 4096 x 2160@60Hz, HDMI and an iDPM slot for IEI eDP/LVDS/VGA modules, so panels are connected without external converters. The data path stays high-bandwidth, with USB 3.2 Gen 2 and SATA 6Gb/s.
Available configurations: WAFER-EHL-x6425EWC-R11 and WAFER-EHL-x6425EWC-R10 with quad-core Atom x6425E, WAFER-EHL-x6413EWC-R11 and WAFER-EHL-x6413EWC-R10 with quad-core Atom x6413E, WAFER-EHL-x6211EWC-R10 with dual-core Atom x6211E.
At a glance
- LPDDR4x 8 GB on-board
- Dual 2.5 GbE Intel I225-IT/I226-IT
- M.2 A key and B key slots
Technical specifications
| Processor | » On board Intel® Elkhart Lake Atom™ x6000 series / Pentium® / Celeron®Intel® Atom™ x6211E on-board SoC (up to 3.0 GHz(optional)Intel® Atom™ x6413E on-board SoC (up to 3.0 GHz(optional)Intel® Atom™ x6425E on-board SoC (up to 3.0 GHz(optional) |
|---|
| Memory | On-board LPDDR4x 8GB - Memory Max. up to 8 GB |
|---|
| SATA ports | 1× SATA : 6Gb/s with 5V SATA power connector |
|---|
| Video outputs | 1 x HDMI™ : up to 4096 x 2160@30Hz1 x Display Port : up to 4096 x 2160@60Hz1 x iDP : IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA Module) |
|---|
| Audio | 1× HD Audio : iAUDIO, support IEI AC-KIT-888S Audio Module (2× 5 pin) |
|---|---|
| Ethernet ports | LAN1: Intel® I225IT/I226-IT controllerLAN2: Intel® I225IT/I226-IT controller |
| Serial interfaces | 2× Internal RS-232/422/485 : 1x9 pin, P=1.25 |
| USB ports | High speed I/O interface for USB 3.2 gen 2, SATA 6Gb/s2× External USB 3.2 Gen2x1 : 10 Gb/s4× Internal USB 2.0 : 2\*4 pin, P=2.0 |
| Form factor | 3.5" SBC |
|---|
| Supply voltage | +12V~28V DC input |
|---|
| Dimensions | 146mm x 102mm |
|---|---|
| Weight | 0.35–0.85 kg |
| Operating temperature | -20–85 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
