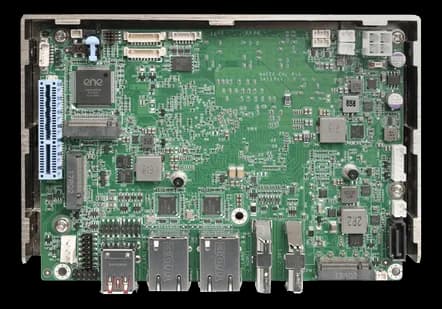

WAFER-EHL-J6412C-R11Fanless 3.5" SBC with on-board Intel Celeron J6412 SoC and triple display
- Manufacturer
WAFER-EHL-J6412C-R11 is a 3.5" single board computer from the WAFER-EHL series, designed for the industrial edge: AMRs, small factory cabinets, kiosks, digital signage, electric vehicle charging stations and medical imaging. At 146 x 102 mm and 0.35 kg, it fits into chassis where space is a design constraint, not a detail.
Its distinguishing feature is expansion: the PCIe x4 slot carries a PCIe Gen3 x2 signal and, with the IEI NWR-L2S-R10 (slot facing outward) or NWR-R2S-R10 (slot facing inward) riser cards, it splits into two x1 links for PoE, video capture or I/O cards. The IEI Heat Conduction Casing (IHCC) provides 13 holes on three sides, for mounting on a rear panel, cabinet door or DIN rail.
The same family includes the WAFER-EHL-J6412C-R10 configuration, available with the same on-board Celeron J6412 base and 8GB soldered LPDDR4x.
At a glance
- Dual Intel I225V 2.5GbE LAN
- +12V DC input, AT/ATX mode
- On-board LPDDR4x memory up to 16GB
- M.2 A Key for Wi-Fi and Bluetooth
Technical specifications
| Processor | Onboard Intel® Atom™ x6000 series / Pentium® / Celeron® (Elkhart Lake platform)Intel® Celeron® J6412 on-board SoC (up to 2.6GHz |
|---|---|
| Graphics | Intel® UHD Graphics |
| Memory | Onboard LPDDR4x 8GB default |
|---|
| SATA ports | 1× SATA : 6Gb/s with 5V SATA power connector |
|---|
| Video outputs | 1× iDPM : 3040× slot (only for iEi eDP/LVDS/VGA module)1 x Display Port : up to 3840 x 2160@60Hz1 x HDMI™ : up to 3840 x 2160@30Hz |
|---|
| Audio | 1× HD Audio : 1× iAUDIO, support IEI AC-KIT-888S Audio Module (2× 5 pin) |
|---|---|
| Ethernet ports | LAN1: Intel® I225V 2.5GbE controllerLAN2: Intel® I225V 2.5GbE controller |
| Serial interfaces | 2× Internal RS-232/422/485 : 1x9 pin, P=1.25 |
| USB ports | 4× Internal USB 2.0 : 2x4 pin, P=2.002 x External USB 3.2 Gen2x1 : 10Gb/s |
| Form factor | 3.5" SBC |
|---|
| Supply voltage | +12V DC input power (AT/ATX mode) |
|---|
| Dimensions | 146mm x 102mm |
|---|---|
| Weight | 0.35 kg |
| Operating temperature | 0~60 |
|---|
| Certifications | RoHS |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
