WAFER-ADL-P3.5" SBC with onboard Intel Alder Lake-P/Raptor Lake-P SoC and two 2.5GbE LAN
- Manufacturer
- Configurations
- 3 available configurations

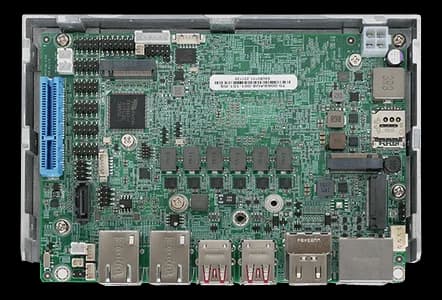

WAFER-ADL-P is a single board computer in the 3.5" SBC form factor, 146 mm x 102 mm and 0.35 kg: it integrates inside the machine chassis or a box PC, not in a separate cabinet.
Wireless and storage expansion goes through the three M.2 slots: A Key 2230 for Wi-Fi and Bluetooth, B Key 3042 with onboard SIM socket for 4G/LTE, M Key 2242/2280 for the drive. Power is ATX/AT, with AT and ATX modes and ErP/EuP compliance; the board is RoHS.
Available configurations: WAFER-ADL-P-i7C-R10, -i5C-R10, -i3C-R10 and -CC-R10, plus revisions -CC-R11, -CEC-R11, -i3C-R11, -i3EC-R11, -i5C-R11, -i7C-R11 and -i7EC-R11.
At a glance
- Onboard LPDDR4x memory at 3200 MT/s
- Two DisplayPort up to 4096 x 2160
- Integrated Intel Iris Xe graphics
- PCIe x4 Gen3 for riser card
Technical specifications
| Processor | Support 12th Intel® mobile AlderLake-P on board SoC · 12th/13th Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC |
|---|---|
| Graphics | Intel® Iris® Xe |
| Memory | 4× ON-BOARD LPDDR4x 3200 MT/s |
|---|
| SATA ports | 1× SATA : 6Gb/s |
|---|
| Video outputs | 2 x HDMI™ : up to 4096x2160 @ 30Hz2 x Display Port : up to 4096 x 2160 @60Hz |
|---|
| Audio | 1× HD Audio : 1× IAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin) |
|---|---|
| Ethernet ports | LAN1: Intel® I225V/I226V 2.5GbE controllerLAN2: Intel® I225V/I226V 2.5GbE controller |
| Serial interfaces | 2× Internal RS-232/422/485 : 2x5 pin, P=2.0 |
| USB ports | 4× Internal USB 2.0 : 2x4 pin, P=2.04 x External USB 3.2 Gen2x1 : 10Gb/s(Type A)4 x Internal RS-232 : 2x5 pin, P=2.0 |
| Wireless | 4G/LTEBluetoothWi-Fi |
|---|
| Form factor | 3.5" SBC |
|---|
| Supply voltage | ATX/AT power supply |
|---|
| Dimensions | 146mm x 102mm |
|---|---|
| Weight | 0.35 kg |
| Operating temperature | −10~60 |
|---|
| Certifications | RoHS |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| WAFER-ADL-P-CEC-R11 |
| WAFER-ADL-P-i3EC-R11 |
| WAFER-ADL-P-i7EC-R11 |
