WAFER-AL3.5" SBC with on-board Intel Apollo Lake SoC, triple display and fanless operation
- Manufacturer
- Configurations
- 2 available configurations

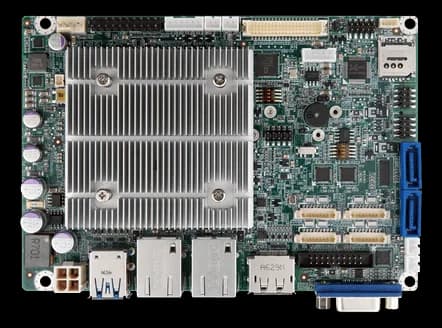

WAFER-AL is a single board computer in 3.5" form factor (146 x 102 mm) built on the Intel Apollo Lake platform with the SoC soldered on-board. IEI positions it in electric vehicle charging stations, factory automation, smart home and medical equipment manufacturing.
The video block combines the dual-mode DP++ output, which detects the connected cable type on its own, with VGA (co-lay with iDP on request) and dual-channel LVDS: three selectable outputs on a 0.25 kg board. The two PCIe Mini slots, one with mSATA support co-lay on the second SATA port and one with a SIM holder, host Wi-Fi or LTE modules on the board itself, not on an external carrier.
Three catalogue configurations: WAFER-AL-N2-R12, WAFER-AL-N2-R10 with quad-core Pentium N4200 and WAFER-AL-N1-R10 with dual-core Celeron N3350.
At a glance
- Intel Pentium N4200 or Celeron N3350 SoC
- Single 12 V DC input
- Operating temperature −20~70 °C
- Single-channel DDR3L up to 8 GB
- Selectable AT/ATX power mode
Technical specifications
| Processor | Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)(optional)Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)(optional) |
|---|---|
| Graphics | Intel® HD Graphics Gen9 |
| Memory | One 204-pin 1866/1600MHz Single-channel DDR3L DIMMs support up to 8GB |
|---|
| SATA ports | 2× SATA :6Gb/s with 5V SATA power connector (no RAID) |
|---|
| Video outputs | 1 x VGA :up to 1920x1200@60Hz1 x iDP :colay with VGA, support by request1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz) |
|---|
| Other I/O | High speed I/O interface for USB 3.0, SATA 6Gb/s |
|---|---|
| Audio | Description: Realtek ALC662 HD codec |
| Ethernet ports | 2× Description: PCIe GbE LAN Realtek RTL8111 Controller |
| Serial interfaces | 2× Internal RS-232/422/485 :1x9 pin, P=1.252 x Internal RS-232 :1x9 pin, P=1.25 |
| USB ports | 4× Internal USB 2.0 :2x4 pin, P=2.0 |
| Form factor | 3.5" SBC |
|---|
| Supply voltage | Support AT/ATX mode |
|---|
| Dimensions | 146 x 102 mm |
|---|---|
| Weight | 0.25 kg |
| Operating temperature | -20–70 °C |
|---|
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
