WAFER-IMX8MP-A3.5" SBC with NXP i.MX 8M Plus Quad SoC and integrated NPU
- Manufacturer
- Configurations
- 3 available configurations

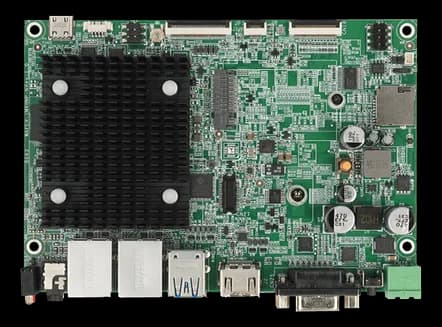

WAFER-IMX8MP-A is a single board computer in 3.5" format built around the NXP i.MX 8M Plus Quad SoC, for HMI, kiosks and data acquisition nodes where power consumption and footprint matter. The 4-lane MIPI CSI camera input and the 4-lane MIPI DSI output work directly with the panel and the camera, without conversion boards.
Inference relies on the eIQ framework, which addresses NPU, CPU and GPU. The software stack comes with SELinux fully enabled, A/B partitions and OTA update engine: BSP work that does not fall on the integrator.
Available configurations: WAFER-IMX8MP-A/BD and WAFER-IMX8MP-A/BD-R10 on Android platform, WAFER-IMX8MP-Y/BD on Yocto platform.
At a glance
- Integrated NPU up to 2.3 TOPS
- 4GB LPDDR4 onboard
- Optional Wi-Fi 5 or Wi-Fi 6
- RS-232/422/485 on DB9 port
- 12V DC input
Technical specifications
| Processor | NXP i.MX 8M Plus Quad (Quad-core Cortex-A53 up to 1.8 GHz) |
|---|---|
| Graphics | GPU: GC7000UL 3D (2 shaders), GC520L |
| Security & watchdog | Fully SELinux enabled |
| Memory | 4GB LPDDR4 memory (up to 8GB) |
|---|
| Video outputs | 1× MIPI DSI : 4× lanes (40-pin 0.5mm FPC 90°)1 x HDMI™ : output 2.0a Type A, up to 4K |
|---|
| Digital I/O | GPIO : 8 bit (4 in / 4 out, pin header) |
|---|---|
| Connectors | 1× Pluggable female terminal block |
| Other I/O | 1 x I²C (for Touch, 8-pin 2.0mm FPC) |
| Audio | Description: 1× 3.5mm Audio Jack (Mic-in & Line out) · 2 x Speaker (3W/8Ω) |
| Ethernet ports | 2× LAN : GbE RJ45 |
| Serial interfaces | 1× Internal RS-232/422/485 : RS-232/RS-485 (2x3 pin header)1 x External RS-232/422/485 (DB9 Port) |
| USB ports | 2 x Type-A (5 Gb/s)1 x Type-C (Support USB 2.0 for download) |
| Wireless | 4G/LTE5GBluetooth3G/WCDMA(optional)Wi-Fi(optional)Wi-Fi 5 (802.11ac)(optional)Wi-Fi 6 (802.11ax)(optional) |
|---|
| Form factor | 3.5" SBC |
|---|
| Supply voltage | 12V DC |
|---|
| Dimensions | 146 × 102 mm |
|---|
| Operating temperature | 0–70 °C |
|---|
| Driver & SDK | eIQ framework (NPU, CPU, GPU) |
|---|---|
| Operating systems | AndroidLinux |
| Ordering variants | WAFER-IMX8MP |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| WAFER-IMX8MP-D/BD-R10 |
| WAFER-IMX8MP-U/BD-R10 |
| WAFER-IMX8MP-Y/BD-R10 |
