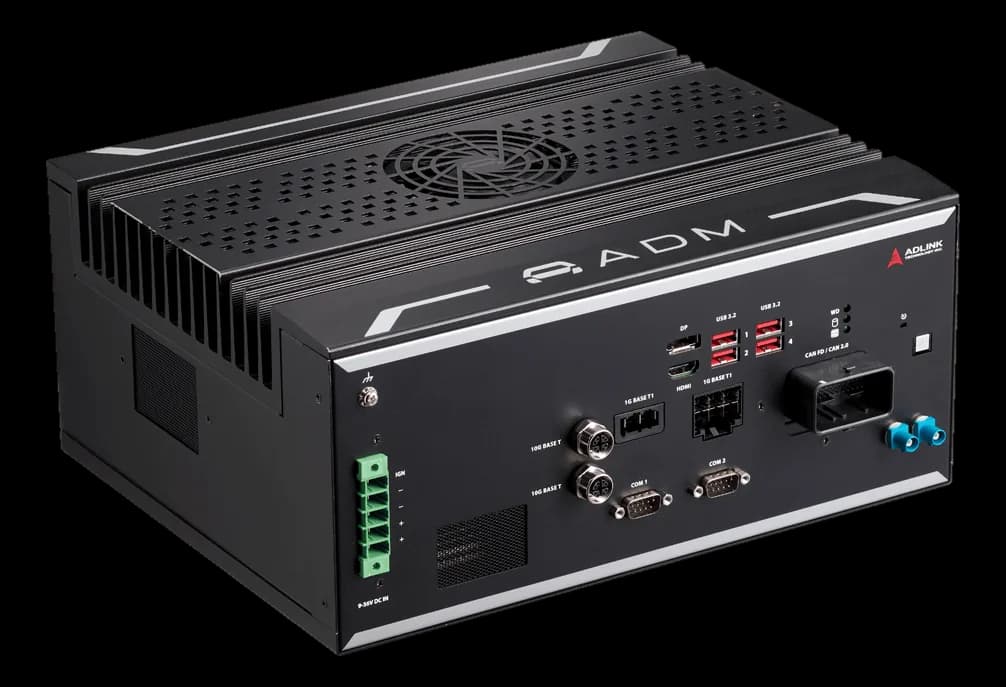

ADM-AL30ADLINK ADM-AL30 Autonomous Driving AI Decision Making ECU
- Manufacturer
- Configurations
- 1 available configurations
ADM-AL30 is the AI decision-making unit that ADLINK designs for autonomous vehicles: automotive connectors, onboard vehicle power and CE, FCC, EN 55032, EN 55035 and E-Mark compliance. On the software side, support for Ubuntu 22.04.03 is declared.
Two aspects set it apart. Storage is dual, M.2 NVMe plus 2.5" SATA: in the ADM-AL30/i9-12900E/RTX 4000 SFF/128G configuration these are a 512G SSD and a 2T SSD. The operating range depends on the graphics card, not the chassis: −20~60 °C without the GPGPU card, 0~45 °C with the GPGPU card installed, with vibration resistance of 3Grms, 5-500 Hz on 3 axes (with SSD).
At a glance
- Up to 128G DDR5 with ECC
- Integrated ignition control
- Optional CAN FD via M.2 modules
- 2x 10G BASE-T on M12 connector
- Integrated TPM 2.0
Technical specifications
| CPU generation | 12th gen (Alder Lake) |
|---|---|
| Processor | Intel® 12th Gen Core™ i9 (LGA 1700) |
| TPM | TPM 2.0 |
| CPU class | Intel Core i3/i5/i7/i9 |
| Graphics | 1× NVIDIA RTX 4000 SFF Ada |
| CPU socket | LGA1700 |
| RAM type | DDR5 |
|---|---|
| Maximum RAM | 128 GB |
| Memory | 4x 32G DDR5 SO-DIMM, up to 128G, with 2 channel ECC |
| Storage | 1× 2T 2.5" SATA SSD |
|---|
| Video outputs | 1× HDMI1× DisplayPort |
|---|
| USB ports | 4× USB 3.2 Gen2, type A |
|---|---|
| Ethernet ports | 8× 1G Base-T1 (TE MATEnet Connector)2x 10G BASE-T (M12 connector) |
| Serial interfaces | 2× RS-232 |
| Expansion | 1× M.2 2230, E-key, PCIe gen3 x1 (for WiFi/BT module)2x M.2 2280, M-key, PCIe gen3 x2 (for optional CAN FD modules |
|---|
| PSU power | 450 W(optional) |
|---|---|
| AC/DC input | DC(optional) |
| Supply voltage | 9-36 VDC |
| Dimensions | 325mm x 258mm x 145mm |
|---|---|
| Front panel buttons | 1× Hardware reset button |
| Storage temperature | -40–85 °C |
|---|---|
| Operating temperature | -20–60 °C0–45 °C |
| Certifications | CEE-MarkEN 55032EN 55035FCC |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| ADM-AL30/i9-12900E/RTX 4000 SFF/128G_50 |
