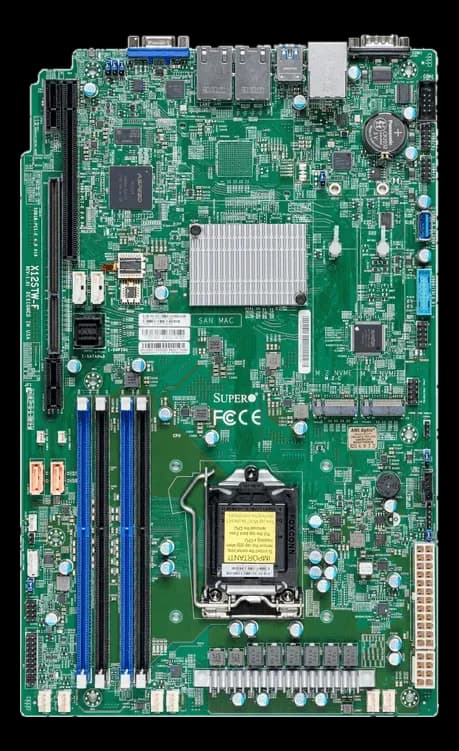

MBD-X12STW-FScheda madre workstation con chipset Intel C256 e socket LGA1200
- Produttore
- Configurazioni
- 2 configurazioni disponibili
MBD-X12STW-F è una scheda madre workstation in formato WIO: accetta processori Intel Xeon, Pentium e Celeron di 10ª generazione (Comet Lake), con TDP fino a 95 W. La memoria DDR4 arriva a 128 GB, con correzione d’errore.
L'espansione offre slot PCIe x16, PCIe x8, PCIe x4 e M.2. Le uscite video comprendono VGA. Lo storage copre M.2 NVMe, M.2 SATA e SATA. L'esercizio è dichiarato fra 0 e 50 °C.
In sintesi
- Generazione CPU: 10ª gen (Comet Lake)
- Processore: 10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor; Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP
- TDP CPU: 95 W
- TPM: Header (predisposizione)
- Core CPU: 1–8
Specifiche tecniche
| BIOS | 256MB UEFI · ACPI 6.0; SMBIOS 3.3; Plug and Play (PnP); RTC (Real Time Clock) Wakeup; UEFI 2.7; USB Keyboard support; PCI 3.0 · 256Mb AMI BIOS SPI Flash BIOS; ACPI 6.0 or later, PCI F/W 3.0 or later, Plug and Play (PnP), SPI dual speed support, riser card auto detection support, SMBIOS 2.7 or later, real time clock (RTC) wakeup |
|---|---|
| Generazione CPU | 10ª gen (Comet Lake) |
| Processore | 10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor; Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP |
| TDP CPU | 95 W |
| TPM | Header (predisposizione) |
| Core CPU | 1–8 |
| N° socket CPU | 1–1 |
| Thread CPU | 16–16 |
| Watchdog | sì |
| Classe CPU | Intel Celeron/PentiumIntel Xeon |
| Chipset | C256 |
| Grafica | 1 ASPEED AST2600 BMC port(s) · Graphics controller via ASpeed AST2600 BMC |
| Socket CPU | LGA1200 |
| Tipo RAM | DDR4 |
|---|---|
| Supporto ECC | sì |
| RAM massima espandibile | 128–128 GB |
| Memoria RAM | 4 DIMM slots; Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s · 3200/2933/2666 MT/s SDRAM · 4GB, 8GB, 16GB, 32GB · 1.2V · Corrects single-bit errors · Supports up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz in four memory slots. Note: Speed support is up to 2666MHz when a Pentium processor is installed. Speed support is up to 2933 MHz for 2R2R configurations. · Up to 32GB at 1.2V |
| Storage | Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 · 8 SATA3 (6Gbps) port(s) · M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4; Form Factor: 2280/22110; Key: M-Key; Double Height Connector · M.2 PCIe 4.0 x4 Slot (2280/22110) (M.2-C is not supported when a Pentium processor is installed) · Intel PCH SATA 3.0 Port (I-SATA0-3) |
|---|
| Uscite video | 1 VGA port(s) · JCOM1: COM Port, JCOM2: COM Header; Eight SATA 3.0 ports (JSATA1, I-SATA4 - I-SATA7) (Two SuperDOM); One VGA connection on the I/O back panel |
|---|
| Altri I/O | 2 SATA DOM (Disk on Module) power connector support · 6x 4-pin fan headers (up to 6 fans); Thermal control tachometer fan connectors; Fan speed control; 6 fans with tachometer status monitoring; Overheat LED indication |
|---|---|
| Porte USB | 1 USB 3.2 Gen2 port(s) (1 rear type A) · Two USB 2.0 ports on the back I/O panel (USB0/1); Two front accessible USB 2.0 headers with two USB connections each (USB2/3, USB4/5); Two USB 3.2 Gen 1 ports on the back I/O panel (USB6/7); One USB 3.2 Gen 2 Type-A header (USB8); One front accessible USB 3.2 Gen 1 header with two USB connections (USB9/10) |
| Porte Ethernet | Dual LAN with Intel® Ethernet Controller I210-AT · 2 RJ45 · Intel i210 (-F SKU) · Dedicated BMC LAN Port |
| Interfacce seriali | 1 COM; 1 COM · This motherboard supports two serial communication connections. COM port 1 and COM header 2 can be used for input/output. The UART provides legacy speeds with a baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support high-speed serial communication devices. |
| Formato modulo | WIO |
|---|
| Espansione | 1 PCIe 4.0 x16 Left Riser Slot, 1 PCIe 3.0 x4 (in x8 slot) · One SMC-Proprietary WIO-L PCIe 4.0 x16 Slot (JSXB1A, JSXB1B, JSXB1C); One SMC-Proprietary WIO-R PCIe 3.0 x4 Slot (JSXB2); One M.2 slot for PCIe 4.0 x4 (Supports M-Key 2280 / 22110 FF); One M.2 slot for PCIe 3.0 x4 (Supports M-Key 2280 / 22110 FF) · SMC-Proprietary WIO_L (Left) PCIe 4.0 x16 Add-On Card Slots (WIO-L will run at PCIe 3.0 x16 when a Pentium processor is installed) |
|---|
| Alimentazione | ACPI Power Management · 24-pin ATX Power Connector · 8-pin Power Connector |
|---|
| Dimensioni | 330.2 × 203.2 |
|---|---|
| Altre caratteristiche | ASPEED AST2600 BMC · SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities · IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support · VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages · UID/remote UID LED; CPU/system overheat LED · WOL, UID, Node manager support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management · ASpeed AST2600 BMC · IPMI View, SMCIPMITOOL, IPMICFG; Trusted Platform Module (TPM) support; SuperDoctor® 5 |
| Temperatura di storage | -40–70 °C |
|---|---|
| Temperatura operativa | 0~50 |
Dati estratti dalle schede tecniche dei produttori: per la conferma finale fa fede lo spec sheet ufficiale del prodotto.
Configurazioni della famiglia
I codici d'ordine di questa famiglia: la scheda vale per tutti, il dettaglio di ogni configurazione è nel datasheet.
| Configurazione (PN) |
|---|
| MBD-X12STW-F-B |
| MBD-X12STW-F-O |
