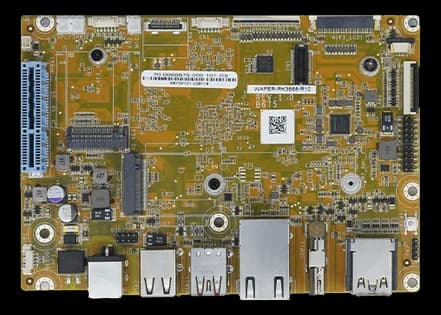

WAFER-RK35883.5" SBC with Rockchip RK3588, 2.5GbE and GbE LAN
- Manufacturer
- Configurations
- 4 available configurations
A 3.5" form factor measuring 146 x 102 mm for industrial HMIs, digital signage, kiosks and on-machine inference nodes: OS support covers Android and Linux, the operating temperature ranges from 0 to 60 °C and the board is RoHS compliant.
On the expansion side you get one M.2 B/M key and one M.2 A/E key, a SATA 3.0 port and an HDMI input alongside the video outputs: a 3.5" board that captures, not just drives displays.
Available configurations: A/DF and Y/DF with 16GB LPDDR5 and 64GB eMMC, A/EF and Y/EF with 32GB LPDDR5 and 64GB eMMC (A for Android, Y for Yocto), plus WAFER-RK3588-A/CE-R10, WAFER-RK3588-Y/CE-R10 and WAFER-RK3588-D/CE-R10.
At a glance
- ARM Mali-G610 MP4 GPU
- HDMI output up to 8K@60Hz
- 12V DC input
- PCIe x4 slot for expansion cards
Technical specifications
| Processor | Rockchip RK3588 (Quad core Cortex A76 + Quad core Cortex A55)3.5” SBC with Quad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz |
|---|---|
| Graphics | GPU: ARM Mali-G610 MP4 |
| Security & watchdog | OTA update, FIT verified boot |
| Memory | On-board 8GB LPDDR4x |
|---|
| SATA ports | 1× SATA : 3.0 up to 6 Gb/s |
|---|
| Video outputs | 1 x HDMI-output up to 8K@60Hz1 x HDMI-output up to 4K@60Hz1 x LVDS |
|---|
| Other I/O | 2.5GbE, GbE RJ45, USB 3.2 GEN 1, USB2.0 |
|---|---|
| Audio | Description: Pin header to Mic-in / line-out jack - 2 x Speaker (2pin header) |
| Ethernet ports | 1 x GHz LAN1 x 2.5 GHz LAN |
| Serial interfaces | 2× 10 pin header · UART (2x9pin header) |
| USB ports | 2× External USB 3.2 Gen1x2 |
| Wireless | BluetoothWi-Fi(optional)Wi-Fi 5 (802.11ac)(optional)Wi-Fi 6 (802.11ax)(optional) |
|---|
| Form factor | 3.5" SBC |
|---|
| Supply voltage | 12V DC |
|---|
| Dimensions | 146× 102 |
|---|
| Operating temperature | 0–60 °C |
|---|
| Certifications | RoHS |
|---|
| Driver & SDK | Wi-Fi wpa supplicant 2.11, connman 2.0；Bluetooth BlueZ 5.36（EDR/BLE)1. UART APP 3. Micro-G FCM serviceCNN: Mesa Teflon delegate 26.0.5, LLM/VLM: rknpu OOT driverPython 3.14.4RKNN Demo (NPU) |
|---|---|
| Operating systems | AndroidLinux |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| WAFER-RK3588-A/DF |
| WAFER-RK3588-A/EF |
| WAFER-RK3588-Y/DF |
| WAFER-RK3588-Y/EF |
