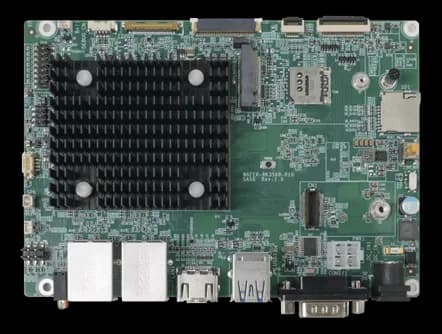

WAFER-RK35683.5" SBC with Rockchip RK3568, Wi-Fi 5/6 and Bluetooth on IEI modules
- Manufacturer
- Configurations
- 2 available configurations
WAFER-RK3568-R10 is a single board computer in 3.5" format, 146 mm x 102 mm, for HMI, kiosks and automation terminals built on an ARM platform. It operates from 0 to 60 °C with air flow and is declared EMC Class A.
It stands out for onboard cellular expansion: an M.2 B Key slot accepting a 4G (3042) or 5G (3052) module, alongside a Micro/Nano SIM slot. Storage is soldered eMMC, with an SD/MicroSD slot for field data.
The family includes three part numbers: WAFER-RK3568-R10 with 4GB LPDDR4/4X, 32GB eMMC and Debian 10; also available as WAFER-RK3568-A-R10 with Android 12, or as WAFER-RK3568-2/16GB-R10 with 2GB RAM and 16GB eMMC.
At a glance
- Triple display HDMI 2.0, MIPI DSI and eDP
- 12V DC input
- 14-bit GPIO with 7 in and 7 out
- Integrated watchdog timer
Technical specifications
| Processor | Rockchip RK3568 (Quad-code Cortex-A55 up to 2.0Ghz) |
|---|---|
| Security & watchdog | Yes |
| Memory | 2/4GB LPDDR4/4X |
|---|
| Video outputs | 1× HDMI™ : 2.0 Type A , Up to 4K1 x eDP : Up to 2560 x 1650@60Hz |
|---|
| Digital I/O | GPIO : 14-bit (7 in/7 out, pin header) |
|---|---|
| Other I/O | 1× I²C (8pin, 90°, P=0.5mm) |
| Audio | 1× Speaker : 2pin Socket (1× 1.3W) |
| Ethernet ports | LAN : 2× 1GbE RJ45 By YT8521 |
| Serial interfaces | External RS-422/485 : 1× DB9 Port , 2 x (RS232+RS485) |
| USB ports | 2× External USB 3.2 Gen1x1 : USB 3.0 Type A (1× OTG,1× HOST)3 x Internal USB 2.0 : HOST (1 x 4 with FRAME,180° P=1.25mm, 2 x 4Pin pin header p= 2.0 mm) |
| Wireless | BluetoothWi-Fi 5 (802.11ac)Wi-Fi 6 (802.11ax) |
|---|
| Form factor | 3.5" SBC |
|---|
| Supply voltage | 12V DC |
|---|
| Dimensions | 146mm x102mm |
|---|
| Operating temperature | 0–60 °C |
|---|
| Operating systems | AndroidLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| WAFER-RK3568-2/16GB-R10 |
| WAFER-RK3568-A-R10 |
