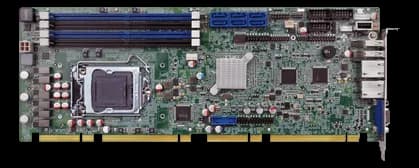

PCIE-Q370PICMG 1.3 CPU card with LGA1151 socket and Intel Q370 chipset
- Manufacturer
- Configurations
- 1 available configurations
The board takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors of the 8th and 9th generation; memory runs on four dual-channel DIMMs at 2666 MHz.
Towards the backplane the golden finger carries one PCIe x16 slot, four PCIe x1 and four PCI slots. Networking pairs the Intel I219LM PHY with an I211-AT controller; video outputs include HDMI and an internal DisplayPort, with 7.1-channel audio supported through a dedicated kit.
The board measures 338 × 126 mm and operates from -20 to 60 °C, with CE and FCC compliance.
At a glance
- CPU socket: LGA1151
- CPU class: Intel Celeron/Pentium
- TPM: Header (provision)
- CPU generation: 9th gen (Coffee Lake-R)
- Processor: LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | Q370 |
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| TPM | Header (provision) |
| BIOS | AMI UEFI BIOS |
| CPU generation | 9th gen (Coffee Lake-R)8th gen (Coffee Lake) |
| Processor | LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor |
| Watchdog | Yes(sec · 1-255) |
| Maximum RAM | 64 GB |
|---|---|
| RAM type | DDR4 |
| Memory | 64GB GB |
| Storage | 6 x SATA :6Gb/s (RAID 0/1/5/10 supported) |
|---|
| Video outputs | 1 x Display Port :up to 4096x2304@60Hz,Internal1 x VGA (up to 1920 x 1080@60Hz)PCIE-Q370-HDMI-R12** ● Support M.2 M key for storage (PCIe x4)Support VGA/HDMI and internal DP display(DisplayPort) |
|---|
| USB ports | 1 x USB 2.0 (Type-A 180°)2 x USB 3.2 Gen 1 (5Gb/s) (Rear IO Type-A)2 x USB 3.2 Gen 1 (5Gb/s) (2x10 pin)2 x External USB 3.2 Gen1x11 x External USB 2.0 :5Gb/s(Rear I/O type A)6 x Internal USB 2.0 :2x4 pin, p=2.541 x Internal USB 3.2 Gen1x1 :2x10 pin,5Gbs |
|---|---|
| Audio | 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button) |
| Serial interfaces | 3 x Internal RS-232 :2x5 pin, P=2.541 x Internal RS-422/485 :1x4 pin, p=2.0 |
| Expansion | 1 x M.2 M key (2280, PCIe Gen3 x4)4 x PCI Slot :PCI signal via golden finger4 x PCIe x1 :signal via golden finger1 x PCIe x16 & 4 x PCIe x1 signal via golden finger1 x M.2(NGFF) :2280,Gen 3 PCLe X 4 |
|---|
| Weight | 0.5 kg1 kg(net) |
|---|
| Operating temperature | -20–60 °C |
|---|
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
