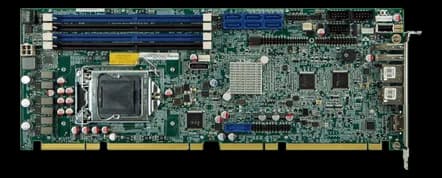

SPCIE-C246Full-size PICMG 1.3 CPU card with Intel C246 chipset and LGA1151 socket

Manufacturer

SPCIE-C246 is a full-size PICMG 1.3 CPU card: it takes Intel Xeon, Core i9/i7/i5/i3, Pentium and Celeron processors, 8th Gen (Coffee Lake) and 9th Gen (Coffee Lake-R). Memory reaches 64 GB, with error correction.

Expansion offers PCIe x16, PCIe x4, PCIe x1, PCI and M.2 slots. Video outputs cover HDMI and DisplayPort. Storage covers M.2 and SATA. Operating range is declared between -20 and 60 °C.

At a glance

CPU socket: LGA1151
CPU class: Intel Celeron/Pentium
TPM: Header (provision)
CPU generation: 8th gen (Coffee Lake)
Processor: LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor

Request information Full specifications ↓

Technical specifications

CPU socket	LGA1151
Chipset	C246
CPU class	Intel Celeron/PentiumIntel Core i3/i5/i7/i9Intel Xeon
TPM	Header (provision)
BIOS	AMI UEFI BIOS
CPU generation	8th gen (Coffee Lake)9th gen (Coffee Lake-R)
Processor	LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
Graphics	Intel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0

Maximum RAM	64–64 GB
RAM type	DDR4
ECC support	sì
Memory	Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC · 64GB

Storage	6 x SATA :6Gb/s (RAID 0/1/5/10 supported) / 1 x M.2(NGFF) :M key

Video outputs	Dual display supported / 1 x HDMI (up to 4096 x 2304@30Hz) / 1 x Internal DisplayPort (up to 4096 x 2304@60Hz)

USB ports	2 x USB 3.2 Gen 1 (5Gb/s) (Rear IO Type-A) · 1 x USB 2.0 (Type-A 180°) · 2 x USB 3.2 Gen 1 (5Gb/s) (2x10 pin) · 6 x USB 2.0 (2x4 pin, P=2.54)
Audio	Support 7.1 channel HD Audio by IEI AC-KIT-888S-R10 kit
Digital I/O	8-bit digital I/O (2x5 pin)
Ethernet ports	LAN1: Intel® I219LM PHY / LAN2: Intel® I211-AT PCIe controller (Co-lay I210-AT) · 2 x LAN LED (1x2 pin)
Serial interfaces	1 x RS-422/485 (1x4 pin, P=2.0) · 3 x RS-232 (2x5 pin, P=2.54)
Other I/O	1 x KB/MS (1x6 pin) · 6 x SATA 6Gb/s (RAID 0/1/5/10 supported) · 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button) · 1 x SMBus (1x4 pin) · 1 x I²C (1x4 pin) · 1 x CPU smart fan (1x4 pin) · 1 x System smart fan (1x3 pin)

Expansion	1 x M.2 M key (2280, PCIe Gen3 x4) / 1 x PCIe x16 & 4 x PCIe x1 signal via golden finger / 4 x PCI signal via golden finger

Power input	AT/ATX power supply / Support AT/ATX mode / ErP/EuP Compliant · 5V@3.12A, 12V@6.85A, 3.3V@1.13A, 5VSB@0.15A (4.0 GHz Intel® Core™ i7-8700K CPU with four 16 GB 2666 MHz DDR4 memory)
