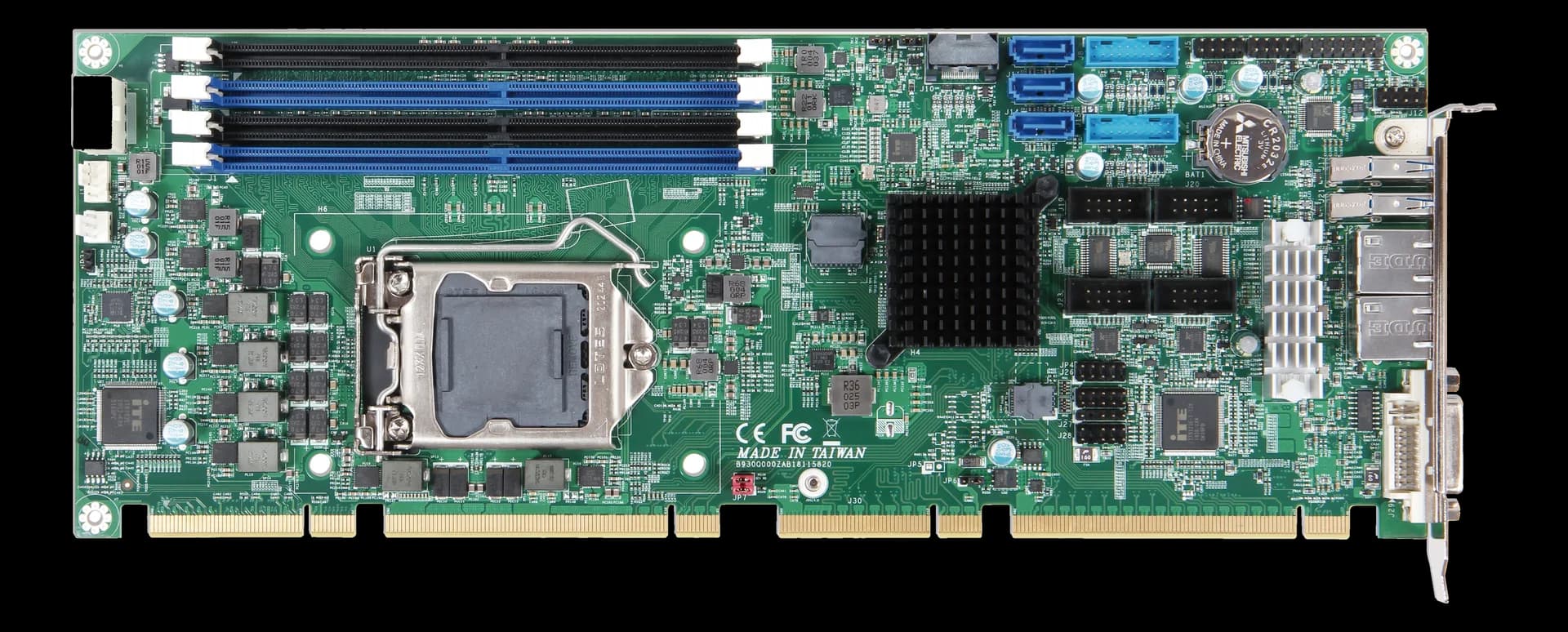

ROBO-8115VG2ARFull-size PICMG 1.3 CPU card with Intel W480E/Q470E chipset and LGA1200 socket

Manufacturer

ROBO-8115VG2AR is a full-size PICMG 1.3 CPU card: it takes Intel Xeon, Core i9/i7/i5/i3, Pentium and Celeron processors, 10th Gen (Comet Lake), with TDP up to 95 W. Memory reaches 128 GB, with error correction.

Expansion offers PCIe x16, PCIe x8, PCIe x4, PCIe x1 and PCI slots. Networking combines Gigabit and Fast Ethernet ports. Video outputs cover VGA, HDMI and DVI. Storage covers M.2. Operating range is declared between 0 and 60 °C.

At a glance

CPU socket: LGA1200
CPU class: Intel Celeron/Pentium
TPM: TPM 2.0
CPU generation: 10th gen (Comet Lake)
Processor: - Intel® Xeon® W family/ Core™ i3/i5/i7/i9/ Pentium® / Celeron® processors up to 4.8 GHz (35~95W) in LGA-1200 package - DMI x4 Link: 5.0GT/s - Support Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring, Trusted Execution and Speed Step Technology (depends on CPU sku) · Intel® Comet Lake-S W series and Core™ i Processors

Request information Full specifications ↓

Technical specifications

CPU socket	LGA1200
Chipset	W480EQ470E
CPU class	Intel Celeron/PentiumIntel Core i3/i5/i7/i9Intel Xeon
TPM	TPM 2.0
BIOS	AMI UEFI BIOS
CPU generation	10th gen (Comet Lake)
Processor	- Intel® Xeon® W family/ Core™ i3/i5/i7/i9/ Pentium® / Celeron® processors up to 4.8 GHz (35~95W) in LGA-1200 package - DMI x4 Link: 5.0GT/s - Support Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring, Trusted Execution and Speed Step Technology (depends on CPU sku) · Intel® Comet Lake-S W series and Core™ i Processors
Watchdog	sì
CPU TDP	35–95 W
Graphics	- Intel® processors integrated graphics engine - Provides improved 3D multimedia capabilities including Microsoft DirectX 12, OpenGL 4.5 · - Controller: Intel® Gfx Gen 9, HD graphics 630 - VGA: Resolution up to 1920 x 1200 @ 60Hz - DVI-D: Resolution up to 1920 x 1200 @ 60Hz (VGA+DVI-D on bracket by DVI-I port) - HDMI: Resolution up to 4096 x 2160 @ 30Hz

Maximum RAM	128–128 GB
RAM type	DDR4
ECC support	sì
Memory	- Supports up to 128GB DDR4 2666 SDRAM on four 288-pin DIMM sockets - Supports ECC (W480E) / Non-ECC (Q470E)

Storage	- 5x SATAIII drives (Dual ports via Backplane) - Supports RAID 0, 1, 5, 10 - 1x M.2 Type M 2280 (on bottom side)

Video outputs	Triple independent displays by -VGA on bracket: Resolution up to 1920x1200 @ 60Hz - DVI-I on bracket: up to 1920x1200 @ 60Hz (VGA + DVI-D on bracket by DVI-I port) - HDMI on board: up to 4096x2160 @ 30Hz

USB ports	- 4x USB 2.0 ports through backplane (480Mb/s) - 4x USB 3.2 Gen 2 ports on board (10Gb/s) - 2x USB 3.2 Gen 2 ports on bracket (10Gb/s) · - USB Port: 2x USB 3.2(Gen2) on bracket, 4x USB 3.2(Gen1) on board header , 4x USB2.0 on board header and 4x USB2.0 via BP
Audio	- Intel® PCH built-in High Definition Audio up to 192-kHz 32-bit - Realtek ALC888S HDA codec, 7.1 channels - One on board audio pin header · - Audio Interface: Mic-In · Line-Out
Digital I/O	On board programmable 8-bit Digital I/Os · One pin-header for GPIO (8bit in &8bit out) · - GPIO connector: 8GPI + 8GPO
Ethernet ports	- Intel® WGI219LM + WGI225LM Gigabit Ethernet controller - Dual 10BASE-T / 100BASE-TX / 1000BASE-T Ethernet - PCI Express x1 interface based on Gigabit Ethernet - Dual RJ-45 connectors with two LED indicators
Serial interfaces	- 2x RS-232 ports - 2x RS-232/422/485 ports selectable - LPC to COM port IC: Fintek F81216DG · - Serial Ports: 2x RS-232 & 2x RS-232/422/485 selectable by bios
Other I/O	1x 10 pin box header for external PS/2 KB & MS · Line-in (on-board header)

Expansion	- From CPU: 1x PCIe x16 or 2x PCIe x8 or 1x PCIe x8 + 2x PCIe x4 by jumper setting (Gen 3 up to 8.0 GT/s) - From PCH: 1x PCIe x4 or 4x PCIe x1 by different BIOS support (Gen 3 up to 8.0 GT/s) - 4x PCI devices at 32bit 33MHz
