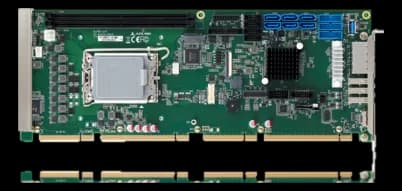

NuPRO-E47PICMG 1.3 SHB with Q670E, DDR5 ECC and four serial ports
- Manufacturer

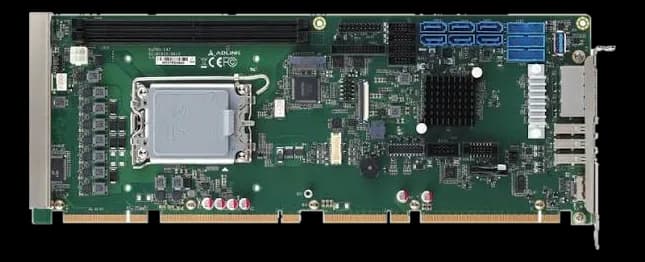

NuPRO-E47 is a PICMG 1.3 single board computer in SHB form factor: it plugs into a backplane and brings the computing into existing rack systems, leaving the installed expansion boards in place. The board measures 338 × 126 mm.
The Q670E chipset takes Intel Core i9, i7, i5, i3, Pentium and Celeron processors of the 12th and 13th generation, from 2 to 16 cores, with frequencies from 2.4 to 5 GHz and TDP from 35 to 65 W. The DDR5 memory works with error correction and four serial ports remain available for field instrumentation.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: 14th gen (Raptor Lake-R)
- Watchdog: Yes
- CPU frequency: 2.4–5 GHz
- CPU TDP: 35–65 W
Technical specifications
| Chipset | Q670E |
|---|---|
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| TPM | TPM 2.0(SLB 9670XQ2)TPM 2.0(Infineon TPM) |
| CPU generation | 14th gen (Raptor Lake-R)12th gen (Alder Lake)13th gen (Raptor Lake) |
| Watchdog | Yes |
| CPU frequency | 2.4–5 GHz |
| CPU TDP | 35–65 W |
| CPU cores | 2–16 |
| Maximum RAM | 64 GB |
|---|---|
| RAM type | DDR5 |
| ECC support | Yes |
| Memory | Memory Configuration Parameters |
| Storage | 6x SATA 3.0 onboard with RAID support |
|---|
| Video outputs | 1x VGA on rear I/O, resolution up to 1920 x1x HDMI on rear I/O, resolution up to 4096 x 2160 @ 60Hz1x VGA via onboard pin header, resolution up to 1920 x 1200 @ 60Hzup to 1920 x 1200@60Hz(DVI) |
|---|
| USB ports | 4x USB 2.0 to backplane1x USB 3.2 Gen1 x1 vertical type A port3x USB 3.2 Gen2 x1 ports (10Gbps) on rear I/O10x USB 3.x (3x USB 3.2 Gen2 x1 ports on rear I/O & |
|---|---|
| Audio | Realtek® ALC262 support by DB-Audio2 daughter board |
| Digital I/O | 1x box header for 8-bit in and 8-bit out(pin-header · bidir) |
| Ethernet ports | 2x PCIe x1 bus |
| Serial interfaces | 2x RS-232 via onboard 2.0 pitch box header4x COM ports (including2x RS-232/422/485 with auto flow control via onboard 2.0 pitch box header |
| Expansion | 1x PCIe x4 to backplane4x PCI to backplane1x PCIe x16 with Intel® PCIe slot bifurcation support and can be configured to: 1x PCIe x16 or 2x PCIe x8 to backplane (based on backplane) |
|---|
| Dimensions | 338 × 126 mm |
|---|
| Storage temperature | -40–80 °C |
|---|
| Certifications | FCCCE |
|---|
| Operating systems | LinuxWindows 11 IoTWindowsWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
