GOI-402A-IPC134U 19″ rack industrial PC on a PICMG 1.3 backplane for SHB boards
- Manufacturer

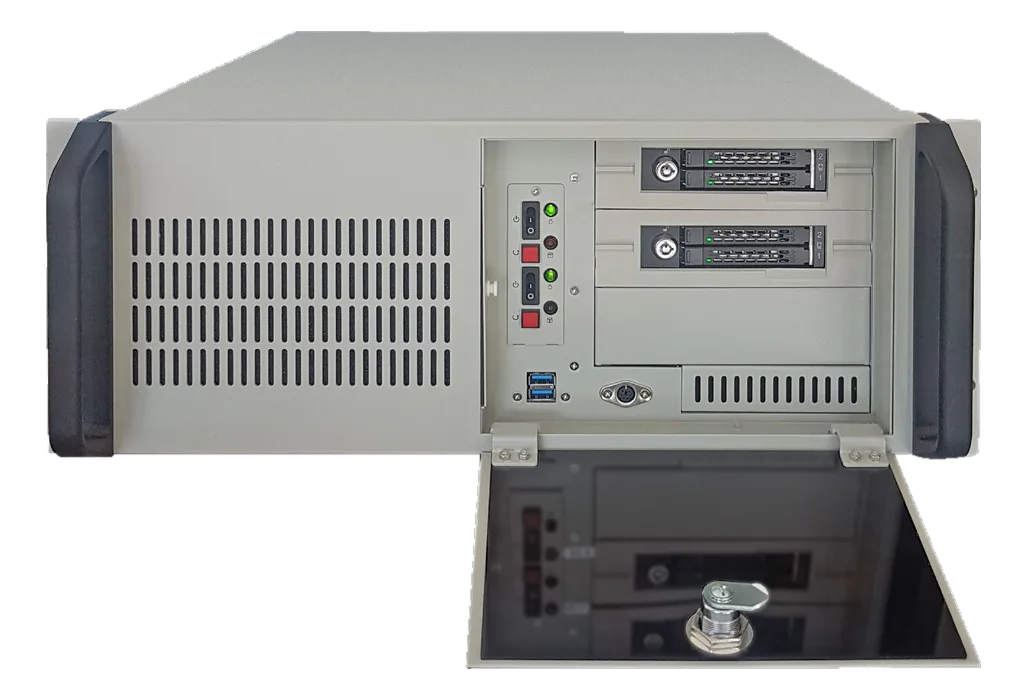

GOI-402A-IPC13 is the industrial PC on a PICMG 1.3 backplane configuration of the GOMA GOI-402A chassis, 4U 19″ rack. The chassis measures 480 × 177 × 451 mm. The rear provides 14 expansion slots.
The boards validated for this version include NuPRO-E43, NuPRO-E47, PCIE-Q370 and PCIE-Q470, for Intel Core, Pentium and Celeron processors. The front carries a removable, washable air filter.
At a glance
- Architecture standard: PICMG 1.3
- Number of slots: 14
- Mounting: Rack Mount
- Cooling: Fan (active)
- Operating temperature: 0~50
Technical specifications
| Other I/O | Fronte: Porta drives con serratura, connettore tastiera 2 x USB · Retro: Alloggiamento per 14 bracket full height, 2 x COM e 1 x PS |
|---|
| Architecture standard | PICMG 1.3 |
|---|---|
| Number of slots | 14 |
| Rack units | 4 |
|---|---|
| Dimensions | Chassis 4U - 480 x 177 x 451 mm |
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Beige o altri colori su richiesta |
| Front panel buttons | Doppi pulsanti Power On/Off e System Reset |
| Other features | Struttura per drives ammortizzata Barra di ritenzione schede ad altezza regolabile |
| Cooling | Fan (active) |
|---|---|
| Air filter | 1 filtro per l’aria rimovibile dal fronte lavabile |
| Humidity | 10–95 |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
