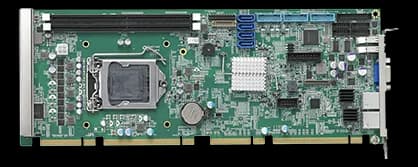

NuPRO-E43Full-size PICMG 1.3 CPU card with Intel Q170 chipset and LGA1151 socket
- Manufacturer
NuPRO-E43 is a full-size PICMG 1.3 CPU card: it takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors, 6th Gen (Skylake) and 7th Gen (Kaby Lake), with TDP up to 65 W. Memory reaches 32 GB.
Expansion offers PCIe x16, PCIe x8, PCIe x4 and PCI slots. Video outputs cover VGA and DVI. Storage covers SATA.
At a glance
- CPU socket: LGA1151
- CPU class: Intel Celeron/Pentium
- TPM: Header (provision)
- CPU generation: 7th gen (Kaby Lake)
- Processor: Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm, 51W TDP, LGA1151 (2C/4T) Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T) Intel® Pentium® G4400TE, 2.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900TE, 2.3GHz, 2M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T) Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T)
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | Q170 |
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| TPM | Header (provision) |
| BIOS | AMI® UEFI BIOS 128 Mbit SPI Flash Memory |
| CPU generation | 7th gen (Kaby Lake)6th gen (Skylake) |
| Processor | Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm, 51W TDP, LGA1151 (2C/4T) Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T) Intel® Pentium® G4400TE, 2.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900TE, 2.3GHz, 2M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T) Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) |
| Watchdog | sì |
| CPU TDP | 65–65 W |
| CPU cores | 2–4 |
| CPU threads | 2–700 |
| Graphics | Integrated Intel® HD Graphics series, based on CPU for different GPU |
| Maximum RAM | 32–32 GB |
|---|---|
| RAM type | DDR4 |
| Memory | Dual-channel DDR4 2133/2400 MHz, up to 32 GB · Two DIMM socket support up to 32 GB DDR4 2133 |
| Storage | 4x SATA 3.0 onboard with RAID support |
|---|
| Video outputs | 1x VGA on rear I/O, resolution up to 1920 x 1200 @60Hz · 1x DVI-D via onboard pin header, resolution up to 1920 x 1200@60Hz |
|---|
| USB ports | 8x USB 3.0 (2 on rear I/O& 6 onboard box header) 4x USB 2.0 to backplane · Dual DDR4 DIMMs, 4x SATA, DVI-D, 6x USB3.0, LPT, 4x COM, 2x USB 3.0, PS/2 KB&MS, LGA1151 Socket, Audio, TPM, Intel Q170 |
|---|---|
| Audio | 1x box header for audio module DB-Audio2 · Realtek® ALC262 support by DB-Audio2 daughter board · Intel® High Definition Audio via onboard box header |
| Ethernet ports | LAN1: Intel® I219LM PHY via RJ45 LAN2: Intel® I225-V via RJ45 · PCIe x1 bus · Support on LAN1 |
| Serial interfaces | 2x RS-232 via onboard 2.0 pitch box header 2x RS-232/422/485 with auto flow control via onboard 2.0 pitch box header |
| Other I/O | 1x LPT port via onboard box header · 1x pin header for PS/2 keyboard& Mouse |
| Expansion | 1x PCIe x16 with Intel PCIe slot bifurcation support and can be configured to: 1x PCIex 16 or 2x PCIe x8 or 1x PCIe x8 + 2x PCIe x4 to backplane (based on backplane) 1 x PCIe x4 to backplane 4 x PCI to backplane |
|---|
| Dimensions | 338 × 126 |
|---|---|
| Other features | CPU temperature, System temperature, System voltage, CPU fan speed · Support iAMT 11 · SEMA support with BMC |
| Certifications | FCCCE |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
