Industrial PCs with PICMG1.3 Backplane [PCIe/PCI]

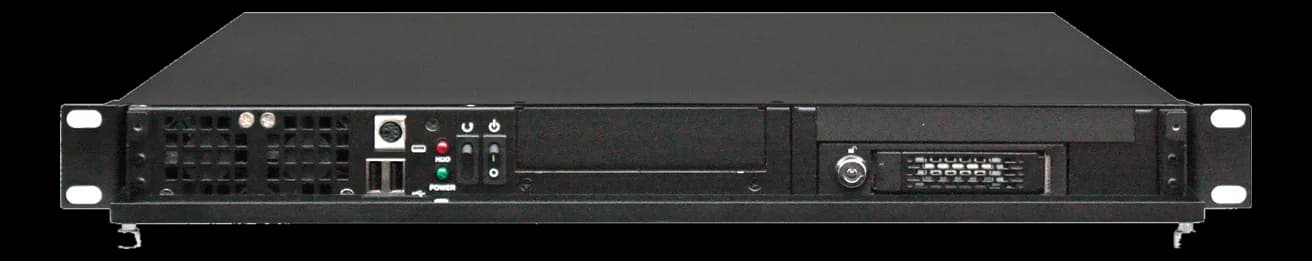

GO-110E-IPC131U industrial PC, 19″ rack, on PICMG 1.3 passive backplane
- Manufacturer
GO-110E is a series of 1U chassis for 19″ racks, on a PICMG 1.3 passive backplane. The frame is in pre-galvanized steel and measures 483 x 44 x 450 mm, and expansion reaches up to 2 slots. For the drives the series provides 1 x 5.25” Slim, 1 x 3.5” HDD or 1 x 5.25” (right bay only).
It is not a catalog code: GOMA composes it for the application, so the series is configured on request and is not compared with a catalog item. Every unit goes through climatic burn in and leaves with its acceptance Test Report. The series datasheet is a guideline: the final configuration is agreed with GOMA.
At a glance
- Storage: 1 x 5.25” Slim, 1 x 3.5” HDD oppure 1 x 5.25” (solo baia destra)
- Architecture standard: PICMG 1.3
- Number of slots: 3
- Mounting: Rack Mount
- Cooling: Fan (active)
Technical specifications
| Storage | 1 x 5.25” Slim, 1 x 3.5” HDD oppure 1 x 5.25” (solo baia destra) |
|---|
| Other I/O | Fronte: Porta drives con viti imperdibili, connettore PS2, 2 x USB · Retro: Alloggiamento per 3 bracket full height, COM e USB |
|---|
| Architecture standard | PICMG 1.3 |
|---|---|
| Number of slots | 3 |
| Rack units | 1 |
|---|---|
| Dimensions | Chassis 1U - 483 x 44 x 450 mm |
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero o altri colori su richiesta |
| Front panel buttons | Power On/Off e System Reset |
| Cooling | Fan (active) |
|---|
| Humidity | 10–95 |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
