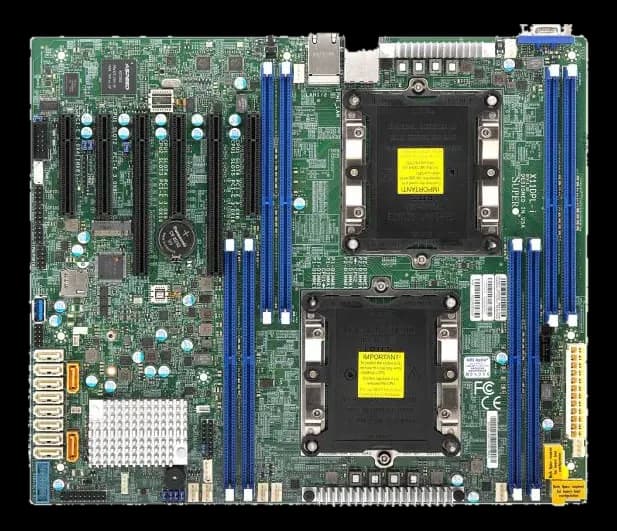

MBD-X11DPL-iServer motherboard with Intel C621 chipset and LGA3647 socket
- Manufacturer
- Configurations
- 1 available configurations
MBD-X11DPL-i is a server motherboard in ATX form factor: it takes Intel Xeon processors, 1st Gen Scalable (Skylake-SP) and 2nd Gen Scalable (Cascade Lake), with TDP up to 140 W. Memory reaches 2 TB, with error correction.
Expansion offers PCIe x16, PCIe x8 and PCIe x4 slots. Networking reaches Gigabit. Video outputs cover VGA. Storage covers M.2 NVMe, M.2 SATA and SATA. Operating range is declared between 10 and 35 °C.
At a glance
- CPU generation: 2nd gen Scalable (Cascade Lake)
- Processor: 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors; Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s
- CPU TDP: 140 W
- TPM: TPM 2.0
- CPU socket count: 2–2
Technical specifications
| BIOS | AMI UEFI |
|---|---|
| CPU generation | 2nd gen Scalable (Cascade Lake)1st gen Scalable (Skylake-SP) |
| Processor | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors; Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s |
| CPU TDP | 140 W |
| TPM | TPM 2.0 |
| CPU socket count | 2–2 |
| CPU class | Intel Xeon |
| Chipset | C621 |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| CPU socket | LGA3647 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 2048–2048 GB |
| Memory | 8 DIMM slots; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s · 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) · LRDIMM: 128GB; RDIMM: 64GB · 1.2V · Corrects single-bit errors |
| Storage | Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 · 10 SATA3 (6Gbps) port(s) · M.2 Interface: 1 SATA/PCIe 3.0 x4; Form Factor: 2280, 2260; Key: M-Key |
|---|
| Video outputs | 1 VGA port(s) |
|---|
| Other I/O | 2 Super DOM (Disk on Module) ports · 8x 4-pin fan headers (up to 8 fans); PWM fan speed control; Overheat LED indication |
|---|---|
| Ethernet ports | Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512 · 2 RJ45 |
| Serial interfaces | 1 COM |
| Form factor | ATX |
|---|
| Expansion | 2 PCIe 3.0 x16, 3 PCIe 3.0 x8, 1 PCIe 3.0 x4 (in x8 slot) |
|---|
| Power input | ACPI Power Management |
|---|
| Dimensions | 306.7 × 257.8 |
|---|---|
| Other features | ASPEED AST2500 · SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog · IPMICFG, IPMIView for Linux/Windows, SMCIPMITool · Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status · UID/remote UID LED; CPU/system overheat LED · UID, Node manager support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX power connector, ACPI power management, SDDC |
| Storage temperature | -40–70 °C |
|---|---|
| Operating temperature | 10~35 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
