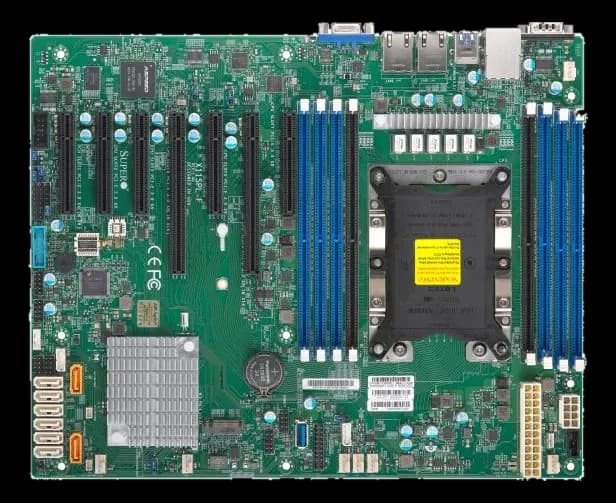

MBD-X11SPL-FServer motherboard with Intel C621 chipset and LGA3647 socket
- Manufacturer
- Configurations
- 2 available configurations
MBD-X11SPL-F is a server motherboard in ATX form factor: it takes Intel Xeon processors, 1st Gen Scalable (Skylake-SP) and 2nd Gen Scalable (Cascade Lake), with TDP up to 165 W. Memory reaches 2 TB, with error correction.
Expansion offers PCIe x16, PCIe x8 and PCIe x4 slots. Networking reaches Gigabit. Video outputs cover VGA. Storage covers M.2 NVMe, M.2 SATA and SATA. Operating range is declared between 0 and 50 °C.
At a glance
- CPU generation: 2nd gen Scalable (Cascade Lake)
- Processor: 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors; Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
- CPU TDP: 165 W
- TPM: TPM 2.0
- CPU cores: 28–28
Technical specifications
| BIOS | AMI UEFI · ACPI 6.0; RTC (Real Time Clock) Wakeup; SMBIOS 3.0 or later |
|---|---|
| CPU generation | 2nd gen Scalable (Cascade Lake)1st gen Scalable (Skylake-SP) |
| Processor | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors; Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP |
| CPU TDP | 165 W |
| TPM | TPM 2.0 |
| CPU cores | 28–28 |
| CPU socket count | 1–1 |
| CPU class | Intel Xeon |
| Chipset | C621 |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| CPU socket | LGA3647 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 2048–2048 GB |
| Memory | 8 DIMM slots; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s; Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only) · 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) · LRDIMM: 32GB, 64GB, 128GB; RDIMM: 8GB, 16GB, 32GB, 64GB · 1.2V · Corrects single-bit errors |
| Storage | Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 · 8 SATA3 (6Gbps) port(s) · M.2 Interface: PCIe 3.0 x4; SATA; Form Factor: 2280, 22110; Key: M-Key |
|---|
| Video outputs | 1 VGA port(s) |
|---|
| Other I/O | 2 SATA DOM (Disk on Module) power connector support · 7x 4-pin fan headers (up to 7 fans); System level control; PWM fan speed control; Fan speed control; Overheat LED indication |
|---|---|
| USB ports | 6 USB 2.0 port(s) (6 via header) |
| Ethernet ports | Dual LAN with 1GbE with Intel® I210 · 2 RJ45 |
| Serial interfaces | 1 COM; 1 COM |
| Form factor | ATX |
|---|
| Expansion | 2 PCIe 3.0 x8 (in x16 slot), 4 PCIe 3.0 x8, 1 PCIe 3.0 x4 (in x8 slot) |
|---|
| Power input | Power-on mode for AC power recovery, ACPI Power Management |
|---|
| Dimensions | 304.8 × 243.8 |
|---|---|
| Other features | ASPEED AST2500 · SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, IPMI2.0, Watchdog · VBAT, Supports system management utility, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status · UID/remote UID LED; Suspend static indicator LED; CPU/system overheat LED · WOL, UID, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management |
| Storage temperature | -40–70 °C |
|---|---|
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
