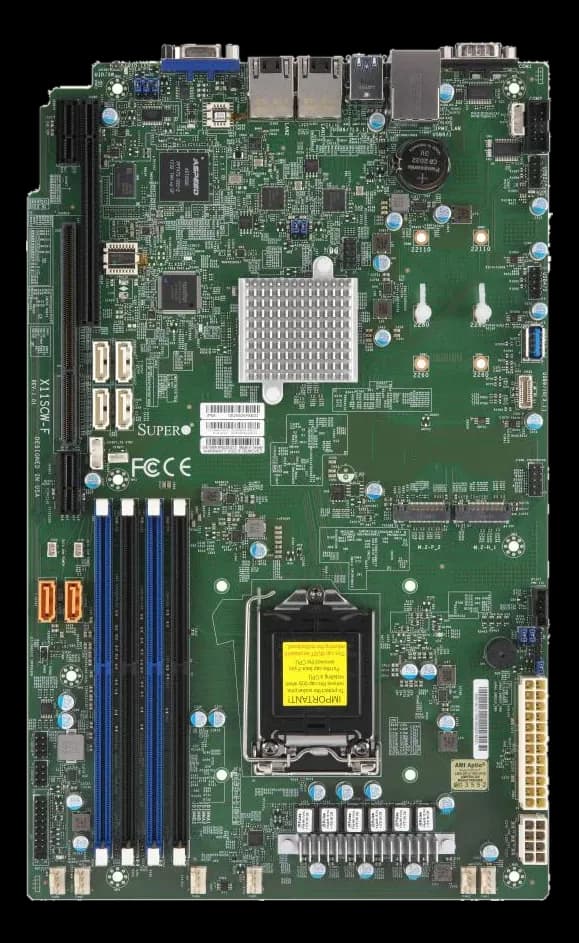

MBD-X11SCW-FScheda madre workstation con chipset Intel C246 e socket LGA1151
- Produttore
- Configurazioni
- 2 configurazioni disponibili
MBD-X11SCW-F è una scheda madre workstation in formato WIO: accetta processori Intel Xeon, Core i9/i7/i5/i3, Pentium e Celeron di 8ª generazione (Coffee Lake) e 9ª generazione (Coffee Lake-R), con TDP fino a 95 W. La memoria DDR4 arriva a 128 GB, con correzione d’errore.
L'espansione offre slot PCIe x16, PCIe x8, PCIe x4 e M.2. La rete arriva a Gigabit. Le uscite video comprendono VGA. Lo storage copre M.2 NVMe, M.2 SATA, SATA DOM e SATA. L'esercizio è dichiarato fra 0 e 50 °C.
In sintesi
- Generazione CPU: 8ª gen (Coffee Lake)
- Processore: 8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor; Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
- TDP CPU: 95 W
- TPM: TPM 2.0
- Core CPU: 8–8
Specifiche tecniche
| BIOS | 256MB UEFI · ACPI 6.0; SMBIOS 2.7; Plug and Play (PnP); RTC (Real Time Clock) Wakeup; UEFI 2.7; USB Keyboard support; PCI 3.0 · 256Mb AMI BIOS®SPI Flash BIOS; ACPI 6.0 or later, PCI F/W 3.0 or later, Plug and Play (PnP), SPI dual speed support, riser card auto detection support, SMBIOS 2.7 or later, real time clock (RTC) wakeup |
|---|---|
| Generazione CPU | 8ª gen (Coffee Lake)9ª gen (Coffee Lake-R) |
| Processore | 8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor; Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP |
| TDP CPU | 95 W |
| TPM | TPM 2.0 |
| Core CPU | 8–8 |
| N° socket CPU | 1–1 |
| Thread CPU | 16–16 |
| Watchdog | sì |
| Classe CPU | Intel Core i3/i5/i7/i9Intel XeonIntel Celeron/Pentium |
| Chipset | C246 |
| Grafica | 1 ASPEED AST2500 BMC port(s) · Graphics controller via ASpeed AST2500 BMC |
| Socket CPU | LGA1151 |
| Tipo RAM | DDR4 |
|---|---|
| Supporto ECC | sì |
| RAM massima espandibile | 128–128 GB |
| Memoria RAM | 4 DIMM slots; Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s · 2666/2400/2133 MT/s SDRAM 72-bit, · 4GB, 8GB, 16GB, 32GB · 1.2V · Corrects single-bit errors · Up to 128GB of unbuffered (UDMIM) DDR4 (288-pin) ECC memory with speeds of up to 2666MHz in four memory slots · Up to 32GB at 1.2V |
| Storage | Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 · 6 SATA3 (6Gbps) port(s) · M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x4; Form Factor: 2260/2280/22110; Key: M-Key · Six (6) SATA 3.0 ports at 6Gb/s (I-SATA 2~7 with RAID 0, 1, 5, 10) · SATA DOM Power Connectors |
|---|
| Uscite video | 1 VGA port(s) · One (1) VGA connection on the back I/O panel |
|---|
| Altri I/O | 6x 4-pin fan headers (up to 6 fans); Thermal control tachometer fan connectors; Fan speed control; 6 fans with tachometer status monitoring; Overheat LED indication |
|---|---|
| Porte USB | 4 USB 3.1 Gen2 port(s) (2 via header; 2 rear) · Two (2) USB 2.0 ports on the back I/O panel (USB0/1); Two (2) USB 3.1 Gen 2 ports on the back I/O panel (USB6/7); Two (2) front accessible USB 2.0 headers with two (2) USB connections each (USB2/3, USB4/5); One (1) front accessible USB 3.1 Gen 2 header with two (2) USB connections (USB9/10); One (1) USB 3.1 Gen 1 Type-A header (USB8) |
| Porte Ethernet | Dual LAN with Intel® Ethernet Controller I210-AT · 2 RJ45 · Intel i210 for Dual 1GbE BASE-T Ports; One (1) Dedicated IPMI LAN port located on the back I/O panel · Dedicated IPMI LAN Port |
| Interfacce seriali | 1 COM; 1 COM · One (1) serial port on the back I/O panel (COM1); One (1) front accessible serial port header (COM2) · The UART provides legacy speeds with a baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support high-speed serial communication devices. |
| Formato modulo | WIO |
|---|
| Espansione | 1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (in x8 slot) · One (1) SMC-Proprietary WIO-L Slot (JSXB1A, JSXB1B, JSXB1C); One (1) SMC-Proprietary WIO-R Slot (JSXB2); One (1) M.2 slot for PCIe 3.0 x4 (Supports M-Key 2260 / 2280 / 22110 FF and Intel Optane Memory); One (1) M.2 slot for PCIe 3.0 x4 or SATA 3.0 (Supports M-Key 2260 / 2280 / 22110 FF and Intel Optane Memory) |
|---|
| Alimentazione | ACPI Power Management · 24-pin ATX Power Supply Connector · 8-pin Power Connector · The X11SCW-F motherboard accommodates a 24-pin ATX power supply. [...] In addition, one 12V 8-pin power connection is also required to ensure adequate power to the system. |
|---|
| Dimensioni | 330.2 × 203.2 |
|---|---|
| Altre caratteristiche | ASPEED AST2500 · SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog · IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support · VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages · UID/remote UID LED; CPU/system overheat LED · WOL, UID, Node manager support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management · ASpeed AST2500 BMC · Trusted Platform Module (TPM) support; SuperDoctor® 5; Watchdog, Non-maskable Interrupt (NMI), RoHs; Chassis intrusion header and detection; Server Platform Service |
| Temperatura di storage | -40–70 °C |
|---|---|
| Temperatura operativa | 0~50 |
| Sistemi operativi | WindowsLinux |
|---|
