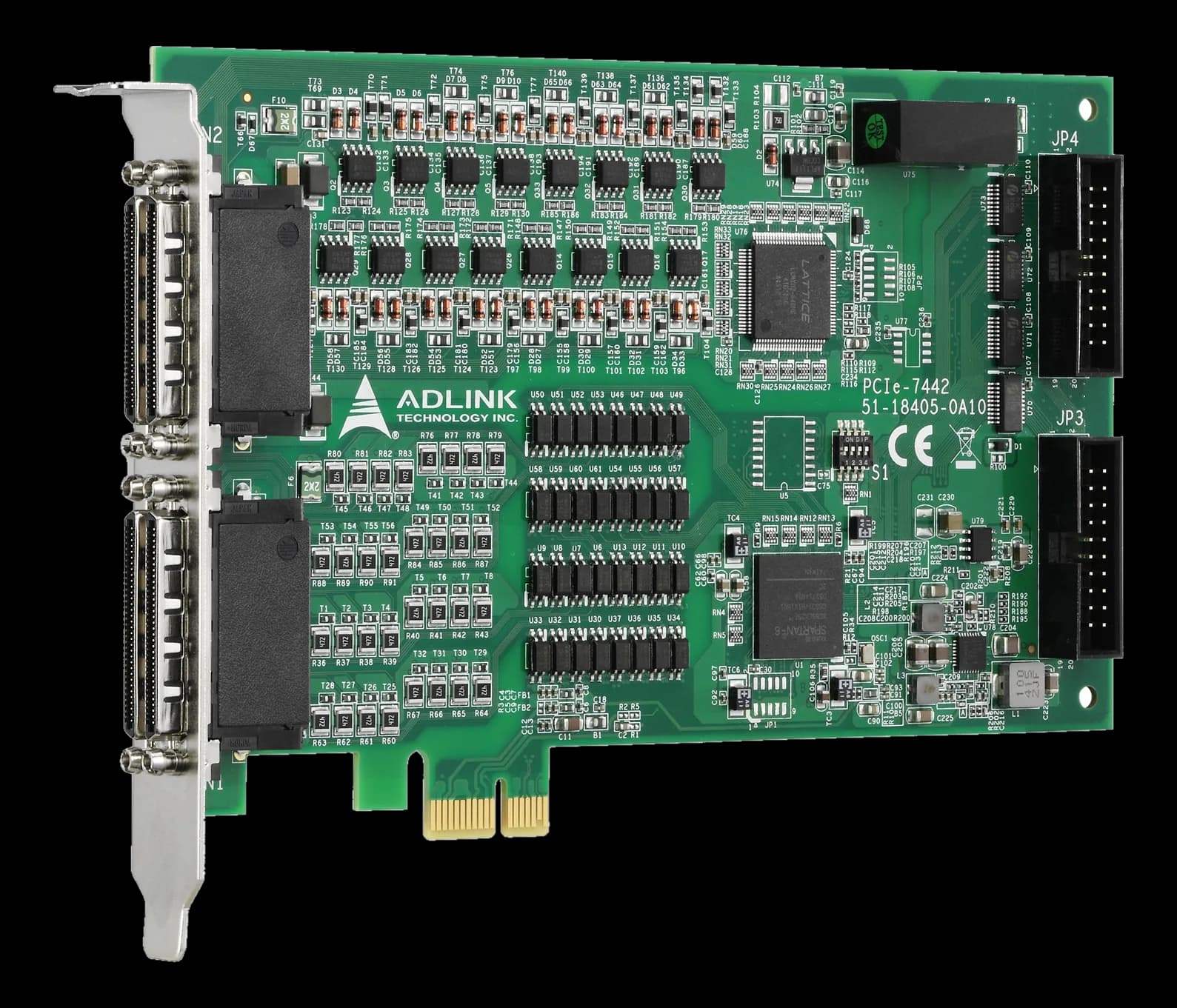

PCIe-7442High-density isolated I/O board with built-in watchdog
- Manufacturer
PCIe-7442 is an isolated digital input and output board for the PCI Express bus, meant for applications where many discrete signals have to be handled from a single slot of the control PC.
Isolation is 1250 VRMS between channels and system, with 28 V voltage protection on the inputs. A 32-bit watchdog with a 10 MHz clock watches over execution, with a trip interval programmable from software.
At a glance
- Watchdog: Yes
- Channels: 128 channel
- Acquisition specifications: Input ESD protection: CKT switch (forward)
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
Technical specifications
| Watchdog | Yes |
|---|
| Digital I/O | 64× isolated DI + 64× isolated DO (open drain MOSFET, sink 300 mA/channel) |
|---|---|
| Connectors | VHDCI |
| Channels | 128 channel |
|---|---|
| Counter | 0 to 429.496 seconds |
| Acquisition specifications | Input ESD protection: CKT switch (forward)33 MHz clock, pulse width must exceed 31ns(sample rate)Input current 10 mA nominal (max 50 mA)(range)0–28 V non-polarity inputs (logic H 5–28 V, L 0–1.5 V; 4.7 kΩ @ 0.5 W)(misc) |
| Isolation | Yes |
| Isolation voltage | 1250 VRMS channel-to-system V(ch sys) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | PCI Express x1PCI Express x1, Plug and Playprogrammed I/Ouniversal 32-Bit 3.3V and 5V PCI bus / PCI Express x1 |
| Power consumption | 0.003 W(+3.3V)2.04 W(+12V) |
|---|
| Dimensions | 175 × 107 mm |
|---|
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -20–80 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
