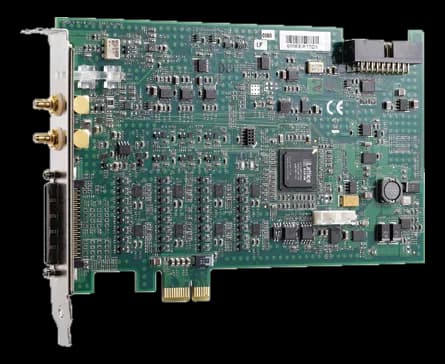

PCIe-7350High-speed digital I/O board with external clock
- Manufacturer
- Configurations
- 1 available configurations
PCIe-7350 is a high-speed digital I/O board for the PCI Express bus, used in device testing and in interfacing with logic that works at different voltages.
Logic levels are selectable in software among 1.8, 2.5 and 3.3 V and direction is set per group of channels. The clock can come from outside through SMB connectors, with AC coupling and an input impedance of 10 kΩ, and I2C and SPI master functions are available towards the connected devices.
At a glance
- Channels: 32 channel
- Acquisition specifications: Input protection: from −1 to +6 V
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
- Operating temperature: 0–55 °C
Technical specifications
| Digital I/O | 32× DIO high-speed (selectable 1.8/2.5/3.3 V levels, direction per group of 8) + 8× AFI |
|---|---|
| Connectors | SMBVHDCI |
| Channels | 32 channel |
|---|---|
| Input impedance | 10 KΩ ohm |
| Input coupling | AC |
| Trigger modes | SoftwareExternal digital trigger |
| Acquisition specifications | Input protection: from −1 to +6 VExternal clock phase shift: 16 steps of 22.5°(resolution)Input thresholds: V_IH min 1.2/1.6/2 V for 1.8/2.5/3.3 V levels(range) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | Supports I2C and SPI programmable serial interfaces for external device communicationProgrammable I/O, bus-mastering DMA with scatter-gatherx1 PCI Express interface |
| Power consumption | 7.5–8.16 W(+12V) |
|---|
| Dimensions | 168 × 112 mm |
|---|
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–70 °C |
| Operating systems | LinuxWindows |
|---|---|
| Driver & SDK | LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| PCIe-7350-SPI |
