PCIe-7300AHigh-speed PCI Express digital I/O board
- Manufacturer

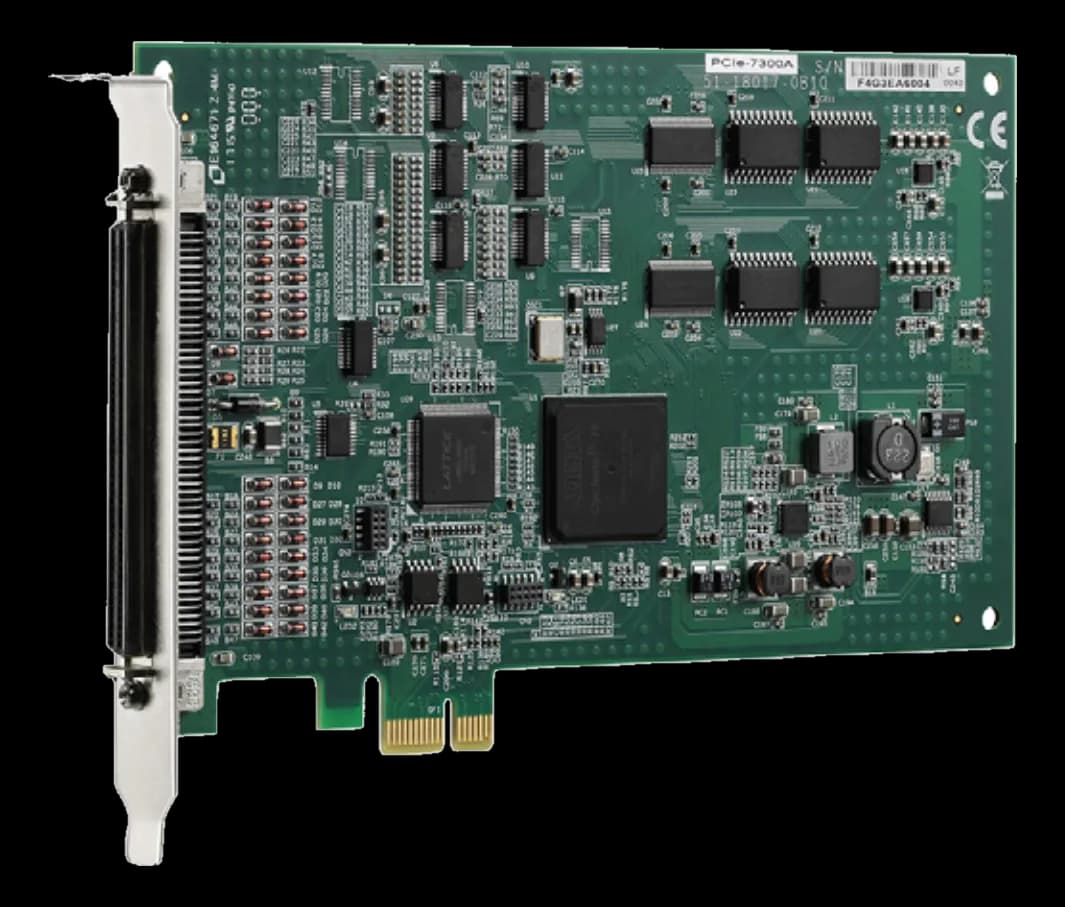

PCIe-7300A is a high-speed digital input and output board for the PCI Express bus, used in test systems and in the acquisition of continuous digital streams coming from external equipment.
The lines are 5 V/TTL compatible and the direction of the groups is configurable in software. Onboard, a 64 KB FIFO decouples the data stream from the bus, so that long acquisitions can be sustained without losing samples.
At a glance
- Channels: 32 channel
- Acquisition specifications: Trigger ADI_TRG (ingressi) e DO_TRG (uscite), fronte di salita o discesa
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
- Operating temperature: 0–60 °C
Technical specifications
| Digital I/O | 32× DIO TTL 5 V high-speed (configurabili: 16 DI + 16 DO, 32 DI o 32 DO) + 4× DI aux + 4× DO aux |
|---|---|
| Connectors | N-pin connector(female) |
| Other I/O | ADI_TRG for digital inputs, DO_TRG for digital outputs |
| Channels | 32 channel |
|---|---|
| Counter | 3 counter/timer 16 bit programmabili (8254: pacer DI, pacer DO, interrupt) |
| Acquisition specifications | Trigger ADI_TRG (ingressi) e DO_TRG (uscite), fronte di salita o discesaLivelli logici ingresso: H 2–5,25 V, L 0–0,8 V(misc)5 V/TTL(logic levels) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | programmed I/ONo limitation for chaining mode (scatter/gather) DMABus-mastering DMA with Scatter/Gather8/16/32-bit input or output (programmable)32-bit PCI busx1 lane PCI Express® Interface |
| Power consumption | 1.43 W(+12 V) |
|---|
| Dimensions | 168 × 112 mm |
|---|
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -20–80 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
