PCIe-7256PCI Express board with 16 latching relays and isolated inputs
- Manufacturer

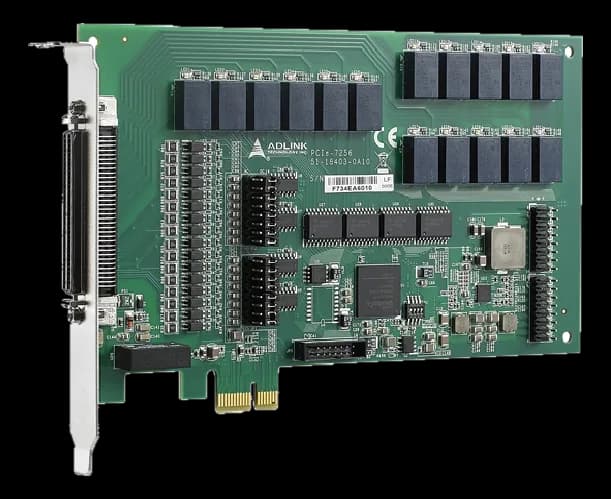

PCIe-7256 is a relay output and isolated digital input board for the PCI Express bus, meant for test benches and switching applications where the state of the contacts has to stay stable.
The relays are of the latching type: the state of the outputs stays unchanged when power drops, a condition that avoids unwanted switching when the PC restarts. The state of each relay stays readable from software, so the supervisor always knows the real position of the contacts.
At a glance
- Channels: 32 channel
- Isolation voltage: 2500 VRMS
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
- Operating temperature: 0–60 °C
Technical specifications
| Digital I/O | 16× uscite relè latching (SPDT Form C) + 16× DI isolati |
|---|---|
| Connectors | N-pin connector |
| Other I/O | Monitor SET/RESET status of each relay · external LED connectors applicable |
| Channels | 32 channel |
|---|---|
| Input impedance | 4,7 kΩ |
| Acquisition specifications | Livelli logici ingressi: 0–24 V non-polarity (H 10–24 V, L 0–2 V)(misc)Corrente d'ingresso 10 mA nominale (max 50 mA)(range) |
| Isolation | Yes |
| Isolation voltage | 2500 VRMS |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | programmed I/OPCI Express x1PCI Express x1, Plug and Play32-Bit 3.3V 5V PCI bus, Plug and Play |
| Power consumption | 0.12 W(+3.3V)1.69 W(+12V) |
|---|
| Dimensions | 175 × 107 mm |
|---|
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -20–80 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
