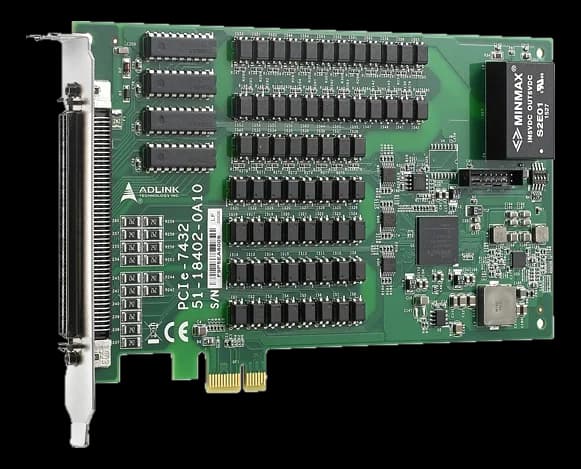

PCIe-7432Isolated digital I/O board with 32 inputs and 32 outputs
- Manufacturer
PCIe-7432 is an isolated digital input and output board for the PCI Express bus, suited to cabinets where the signals coming from the field side have to stay separate from the PC electronics.
Stated isolation is 2500 VRMS between channels and system. The outputs are open collector Darlington transistors with a supply voltage between 5 and 35 V, while the inputs accept non-polarized levels up to 24 V.
At a glance
- Channels: 64 channel
- Isolation voltage: 2500 VRMS V
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
- Operating temperature: 0–60 °C
Technical specifications
| Digital I/O | 32× DI isolati + 32× DO isolati (open collector, sink 500 mA) |
|---|---|
| Connectors | N-pin connector |
| Channels | 64 channel |
|---|---|
| Acquisition specifications | Resistenza d'ingresso 2,4 kΩ @ 0,5 W(misc)Ingressi 5–24 V non-polarity (logic H 5–24 V, L 0–1,3 V)(range) |
| Isolation | Yes |
| Isolation voltage | 2500 VRMS V |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | programmed I/OPCI Express x132-Bit 5 V PCI bus |
| Power consumption | 0.12 W(+3.3V)1.8 W(+12V) |
|---|
| Dimensions | 175 × 107 mm |
|---|
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -20–80 °C |
| Operating systems | LinuxWindows |
|---|---|
| Driver & SDK | LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
