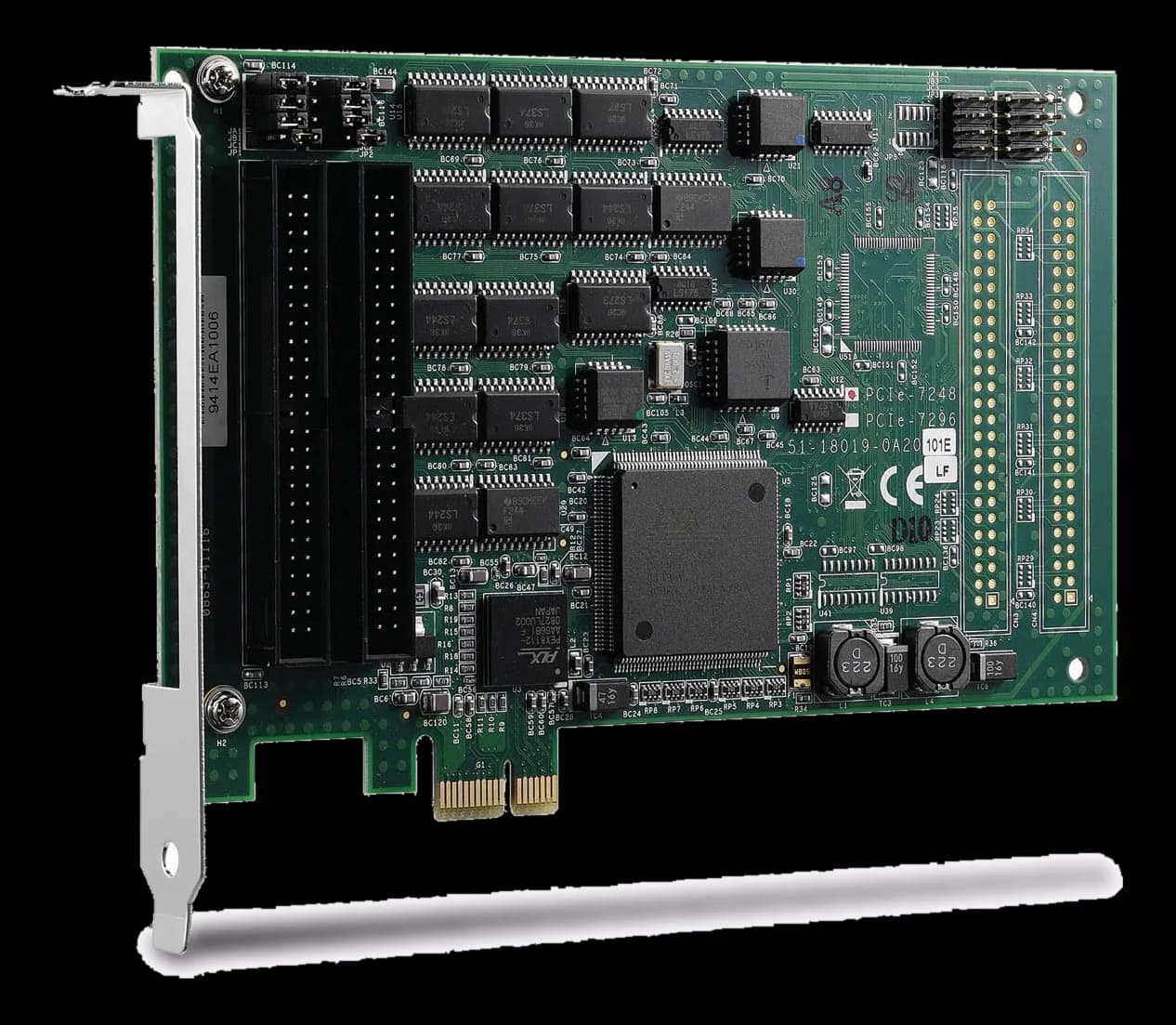

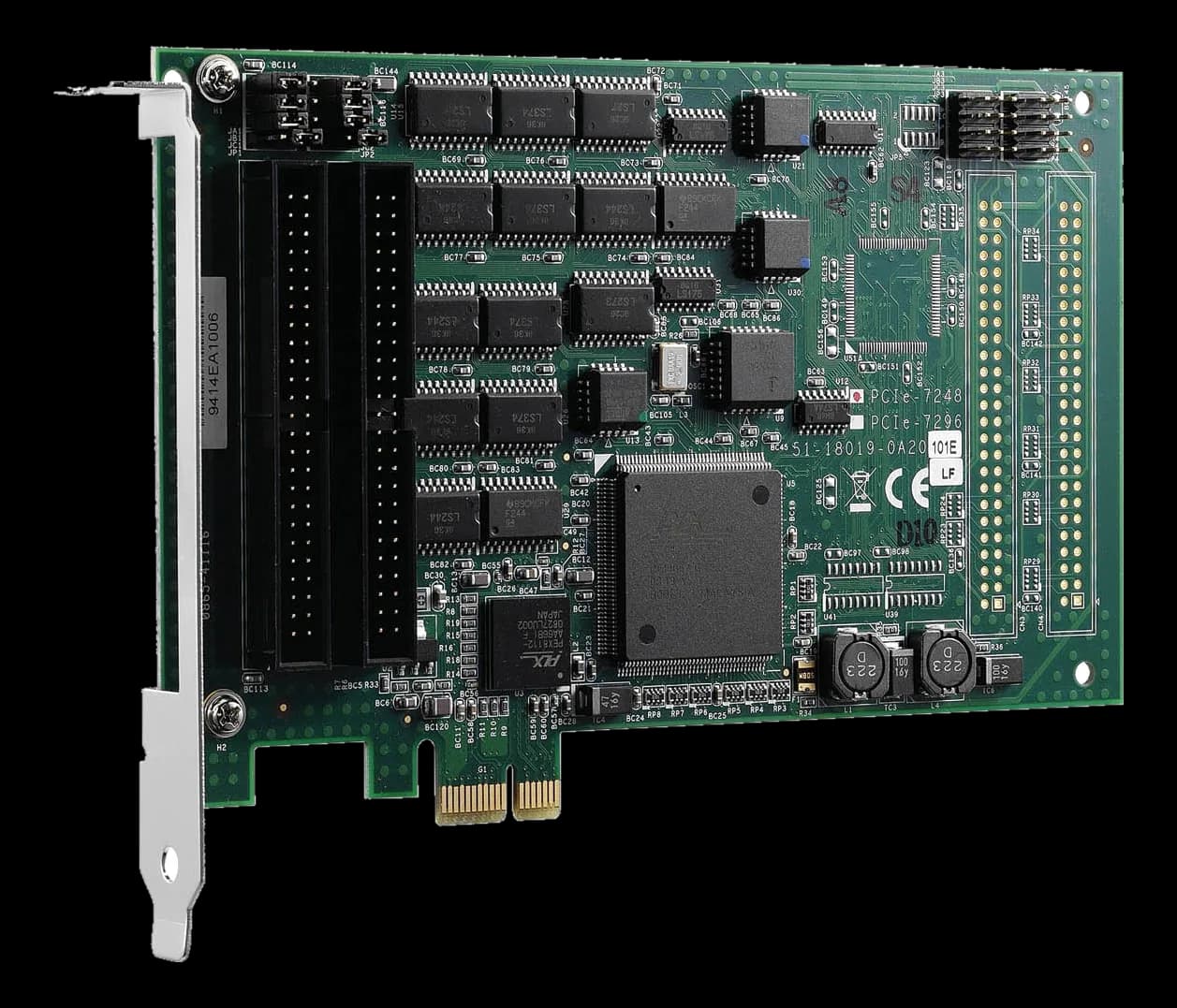

PCIe-7248PCI Express DIO board with 48 Opto-22 compatible channels
- Manufacturer
PCIe-7248 is a digital input and output board for the PCI Express bus, used in automation cabinets where the field signals pass through Opto-22 conditioning modules.
The Opto-22 standard connectors allow the module racks already in the plant to be landed directly, without intermediate adapters. Stated power draw is 5.12 W, a figure to weigh when the PCI Express slot is shared with other boards in a compact industrial PC.
At a glance
- Channels: 48
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
- Power consumption: 5.12 W
- Operating temperature: 0–60 °C
Technical specifications
| Digital I/O | 48× DIO TTL programmabili (2× 8255 PPI mode 0) |
|---|---|
| Connectors | OPTO-22N-pin connector(male) |
| Channels | 48 |
|---|---|
| Counter | A 32 bits timer to generate watchdog timer interrupt |
| Acquisition specifications | Livelli logici TTL — ingresso: H 2,0–5,25 V, L 0–0,8 V (I_H 20 µA, I_L −0,2 mA)(logic levels) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | x1 PCI Express |
| Power consumption | 5.12 W |
|---|
| Dimensions | 168 × 112 mm |
|---|
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -20–80 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
