AMP-104C4-axis motion controller with pulse output on PCI Express
- Manufacturer
AMP-104C is an ADLINK 4-axis motion controller with pulse-train command, used in machine automation and in positioning cells where motion is handled by stepper drivers or by servo drives with pulse input.

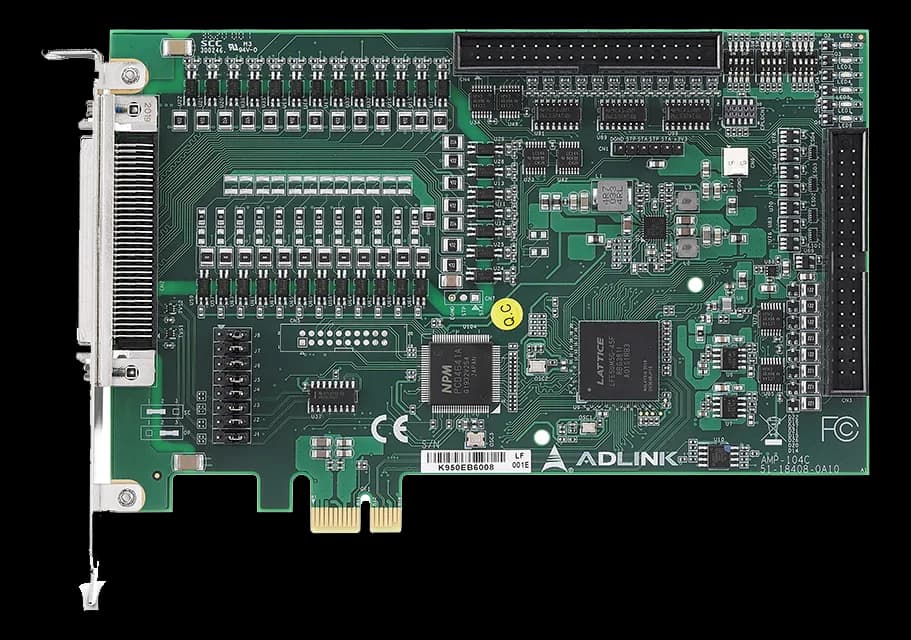

The board links to the host system through a PCI Express Gen1 x1 interface and carries opto-isolated GPIO onboard, with the field signals collected on a 68-pin SCSI connector. The control software runs under Windows.
At a glance
- Channels: 4 channel
- Acquisition specifications: 8× ingressi trigger di position latch
- Board function: Motion control
- Architecture standard: PCI Express
- Power input: DC V
Technical specifications
| Digital I/O | 16× DI isolati + 12× DO isolati (onboard); estesi: 16× DI TTL + 15× DO TTL |
|---|---|
| Connectors | N-pin connectorD-Sub |
| Channels | 4 channel |
|---|---|
| Acquisition specifications | 8× ingressi trigger di position latchRisoluzione contatore encoder 32 bit; contatore posizione 24 bit(resolution)Uscita impulsi 0,5 pps – 4,9 Mpps (CW/CCW, OUT/DIR; differenziale/single-end); ingresso encoder 5 MHz (fino a 20 MHz a 4× AB)(misc) |
| Board function | Motion control |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | PCI Express® Gen1x1 |
| Power input | DC V |
|---|
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -20–80 °C |
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
