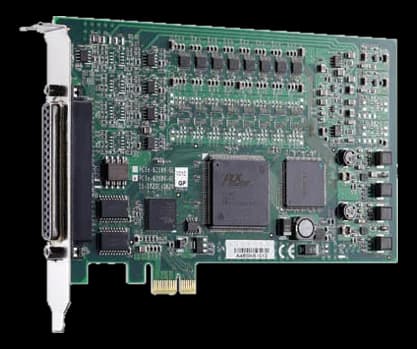

PCIe-6208V-GL16-bit analog output board for PCI Express
- Manufacturer
PCIe-6208V-GL is an analog output board for the PCI Express bus, used on calibration benches and in process control systems that have to generate reference voltages towards actuators and instruments.
The outputs cover a ±10 V range with a drive capability of ±5 mA, while four digital inputs and four digital outputs at 5 V/TTL stay available for handshaking with the rest of the machine. The board works between 0 and 50 °C and is supported on Windows and Linux.
At a glance
- Channels: 8 channel
- DAC resolution: 16 bit (15 bit garantiti)
- Analog output range: ±10 V
- Board function: Analog acquisition
- Architecture standard: PCI Express
Technical specifications
| Digital I/O | 4× DI TTL + 4× DO TTL (5 V/TTL) |
|---|---|
| Connectors | D-Sub(female) |
| Channels | 8 channel |
|---|---|
| DAC resolution | 16 bit (15 bit garantiti) |
| Analog output range | ±10 V |
| Acquisition specifications | Ingressi digitali TTL: livello basso 0–0,8 V, alto 2,0–5,5 V(range)Errore di guadagno 0,0025% FSR (a 25 °C)(accuracy)5 V/TTL(logic levels)Settling time 130 µs (step 20 V) · DNL ±1 LSB · pilotaggio ±5 mA max(misc) |
| Board function | Analog acquisition |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | programmed I/OProgrammed I/Ox1 lane PCI Express® Interface |
| Power consumption | 4.56 W(+12 V)1.02 W(+3.3 V) |
|---|
| Dimensions | 168 × 112 mm |
|---|
| Operating temperature | 0–50 °C |
|---|---|
| Storage temperature | -20–80 °C |
| Operating systems | LinuxWindows |
|---|---|
| Driver & SDK | LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
