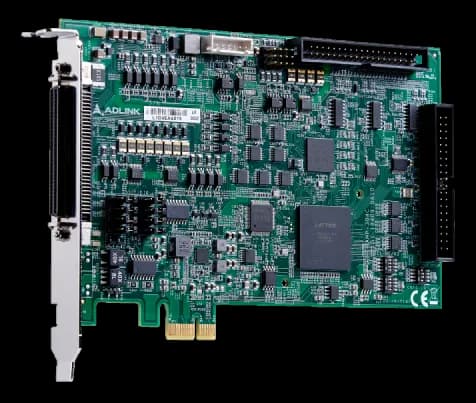

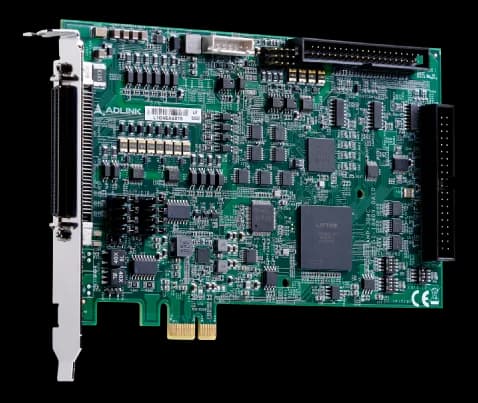

AMP-304CMotion controller with 32-bit position counters
- Manufacturer
AMP-304C is an ADLINK motion controller for the PCI Express bus, used in positioning machines and automatic inspection systems where multi-axis motion is commanded by pulse train.
The position and encoder counters work at 32 bits, while field and servo signals are collected on a main 68-pin SCSI connector. Compliance stated by the manufacturer covers the CE, FCC and RoHS marks.
At a glance
- Channels: 4 channel
- Acquisition specifications: Uscite trigger comparazione posizione fino a 1 MHz: 4× CMP dedicate + 8× DO isolate / 4× TTL configurabili
- Board function: Motion control
- Architecture standard: PCI Express
- Operating temperature: 0–60 °C
Technical specifications
| Digital I/O | 16× DI isolati (source, 24 VDC) + 16× DO isolati (sink 5–24 V, max 100 mA); estesi: 16× DI TTL + 16× DO TTL |
|---|---|
| Connectors | N-pin connector |
| Channels | 4 channel |
|---|---|
| Acquisition specifications | Uscite trigger comparazione posizione fino a 1 MHz: 4× CMP dedicate + 8× DO isolate / 4× TTL configurabiliUscita impulsi fino a 9,99 Mpps; ingresso encoder 4 MHz (fino a 16 MHz a 4× AB); contatori posizione/encoder 32 bit; latch posizione 12 ingressi(misc)Tensione uscite trigger CMP selezionabile: 5 V, 24 V o open collector(range) |
| Board function | Motion control |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | PCI Express® Gen1 x1 |
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -20–80 °C |
| Certifications | CERoHSFCC |
|---|
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
