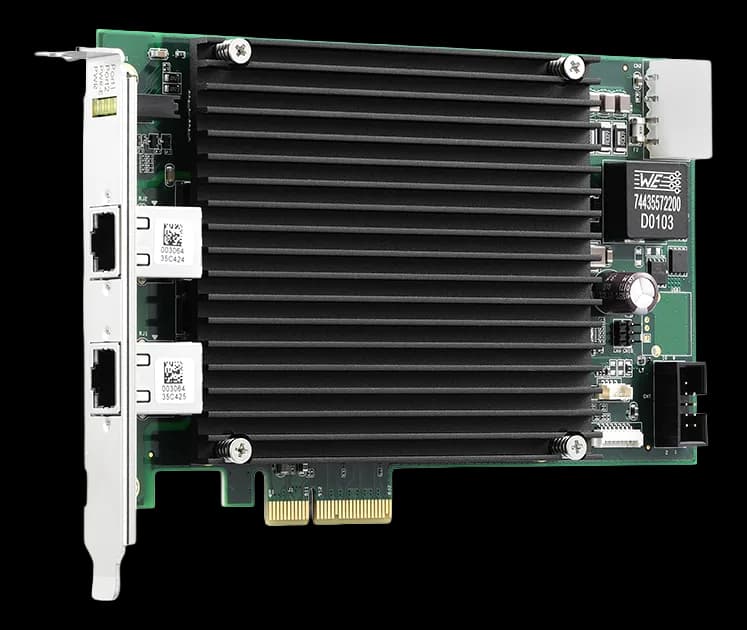

PCIe-10GPoE2-channel PCI Express frame grabber for 10 GigE Vision cameras with PoE+
- Manufacturer
PCIe-10GPoE brings acquisition from GigE Vision cameras into the vision PC, with data and power on the same CAT6 or CAT6a cable. It accepts PoE, PoE+ and non-PoE cameras, and you can install multiple boards and multiple cameras in the same system. You develop in C++, C# or VB.NET on Windows and Linux, with ADLINK Vision Software (AVS) compatibility.
The PoE budget depends on how you power the board: up to 20 W from the PCIe slot alone, up to 60 W by adding the 4-pin Molex connector. PoE overcurrent and overvoltage protection is built in. An API switches PoE on and off and monitors its status in real time, alongside a hardware switch: you power-cycle a camera from software, without unplugging the cable.
At a glance
- PCI Express x4 Gen 3 bus
- NBASE-T at 2.5 and 5 Gbps
- Hardware IEEE 1588 PTP
- Automatic PD detection and classification
- RJ45 with dual-screw cable lock
Technical specifications
| Memory | Dual-channel DDR4 RAM 8Gx2 |
|---|
| Connectors | 8-pin RJ45 Copper with Dual Screw Cable Lock |
|---|---|
| Ethernet ports | Jumbo frame, Link Aggregation, IEEE 1588 (PTP technology, Hardware)LAN Controller: Intel® server-grade X550-AT2 10GbE MAC+PHY Ethernet ControllerSpeed: 10G, 5/2.5 BASE-T, 1G, 100M (10M not supported)Supports NBASE-T technology (2.5 and 5.0 Gbps) |
| Other I/O | CAT6 or CAT6a |
| Board function | Frame grabber / video acquisition |
|---|---|
| Architecture standard | PCI Express |
| Dimensions | 167.65 mm x 111.15 mm (6.59” x 4.37”) (W x L) |
|---|
| Operating temperature | 0–60 °C |
|---|
| Certifications | CEEN 55032EN 61000-6-2FCCICES-003RoHS |
|---|
| Operating systems | LinuxWindows |
|---|---|
| Driver & SDK | API for Programmable PoE power on/off and PoE Status MornitoringC++, C#, VB.NETCompatible with ADLINK Vision Software (AVS) |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
