GO-431ATX-SRV4U rack chassis 671 mm deep with six optical bays
- Manufacturer
- Configurations
- 1 available configurations
GO-431ATX is a four rack unit chassis in cold rolled steel, sized for the equipment that requires many drives accessible from the front, such as the recording and archiving systems installed in a cabinet.

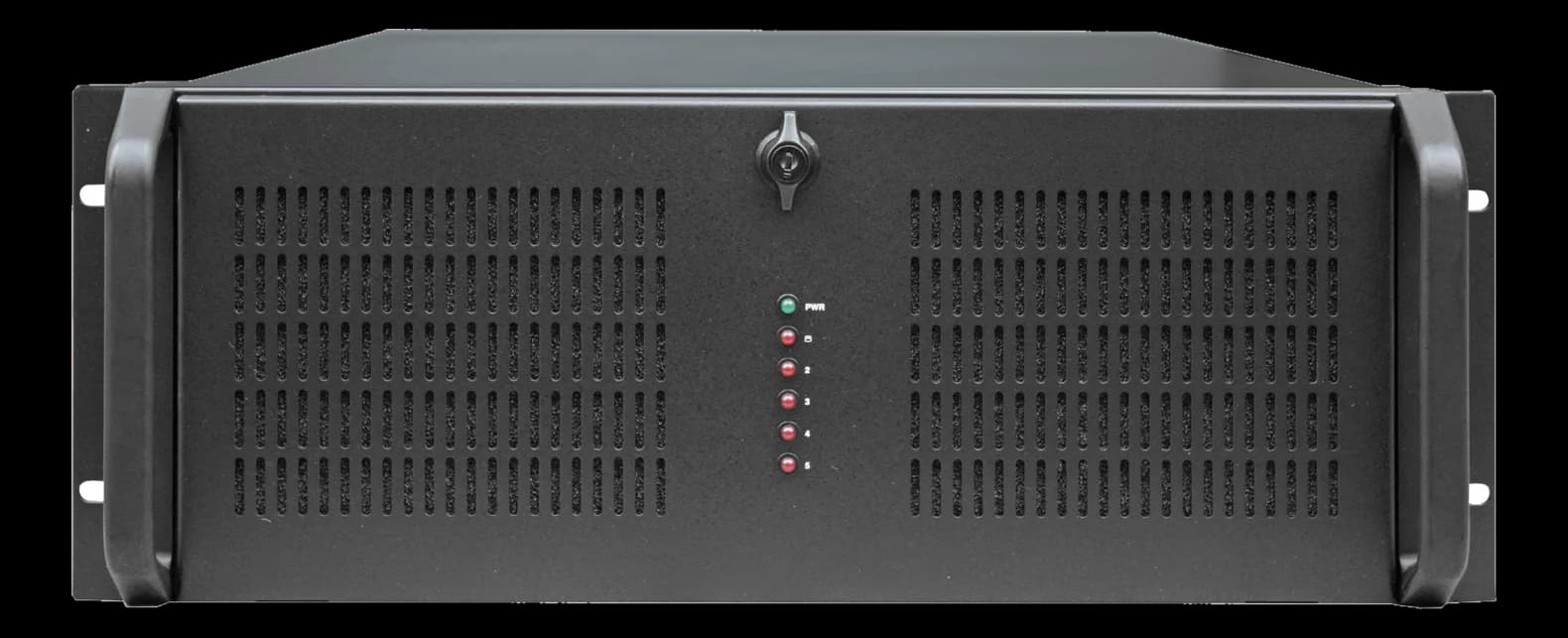

Behind the front door with a snap lock sit six 5.25" optical bays and a 3.5" floppy, together with the washable air filter. The rear bay accepts a single ATX power supply or a mini redundant one, while the front carries the power and drive activity LEDs.
At a glance
- Storage: 6 x 5.25” + 1 x 3.5” + 1 x 3.5” HDD; 2 x 3.5” (optional)
- Motherboard form factor: E-ATX
- Number of slots: 7
- Mounting: Rack Mount
- Cooling: Fan (active)
Technical specifications
| Storage | 6 x 5.25” + 1 x 3.5” + 1 x 3.5” HDD; 2 x 3.5” (optional) |
|---|
| Other I/O | Fronte: Porta frontale con serratura · Retro: Alloggiamento per 7 bracket full height |
|---|
| Motherboard form factor | E-ATX |
|---|---|
| Number of slots | 7 |
| PSU power | 500–700 W(optional) |
|---|
| Rack units | 4 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Dimensions | Chassis 4U - 483 x 177 x 671 mm |
| Chassis color | Nero, beige o altri colori su richiesta |
| Front panel buttons | Power On/Off e System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Air filter | 2 filtri per l’aria rimovibili dal fronte lavabili 30 ppi |
| Operating temperature | 0~45 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

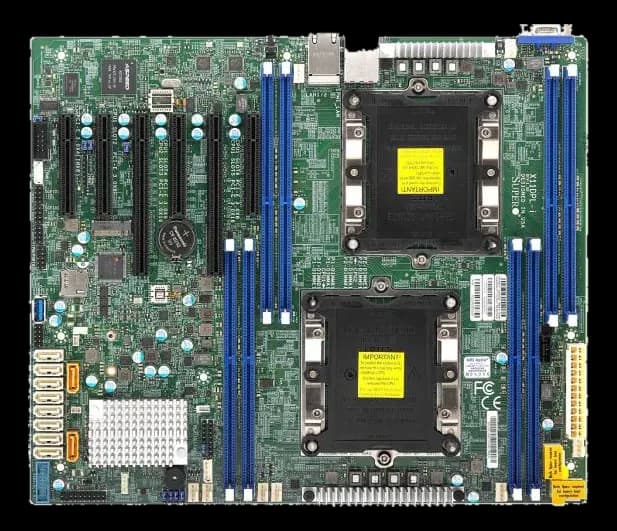

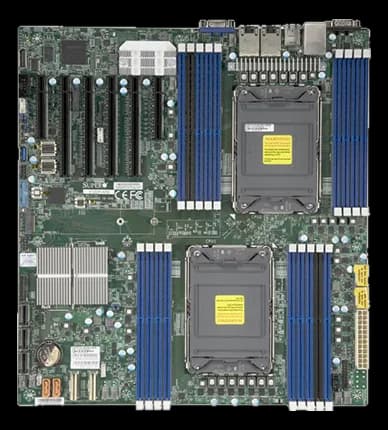

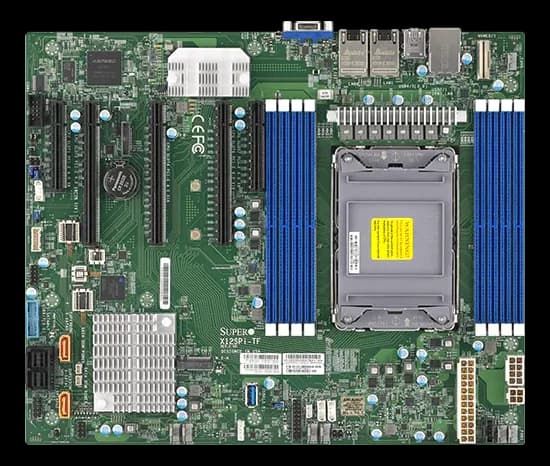

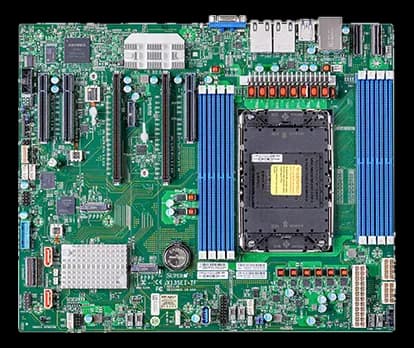

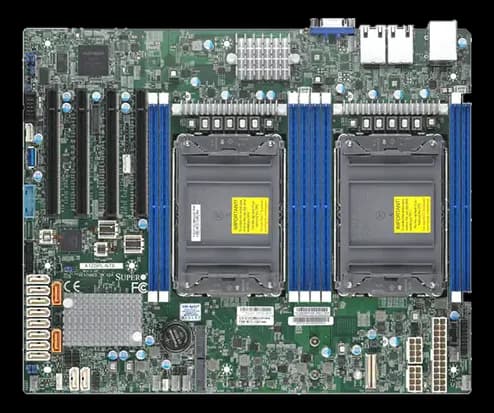

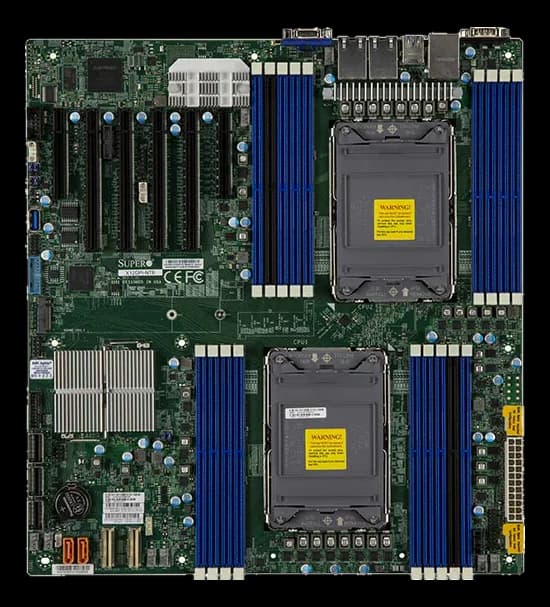

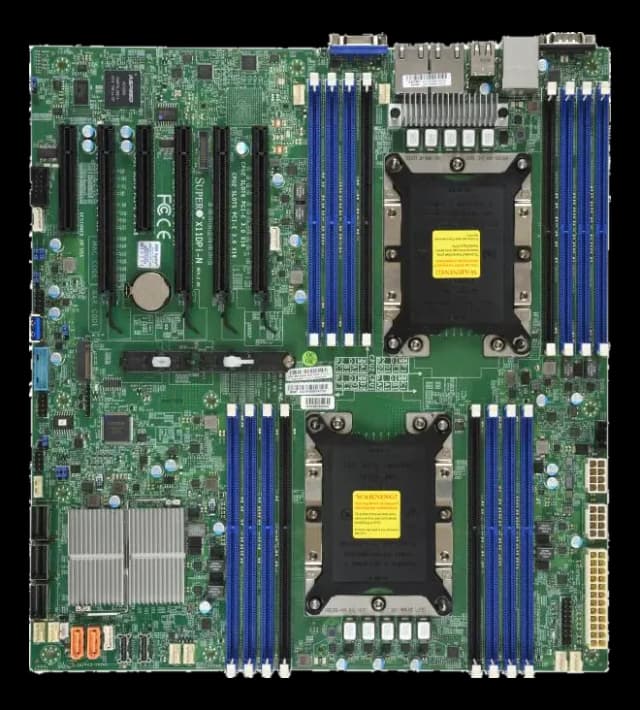

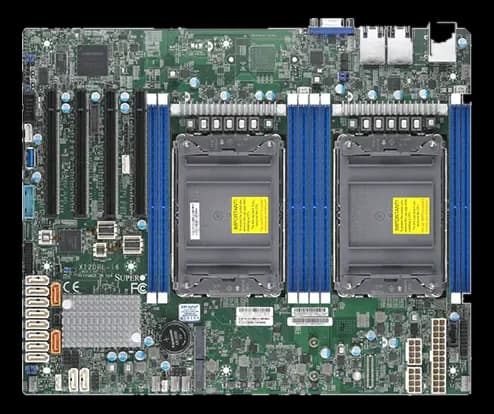

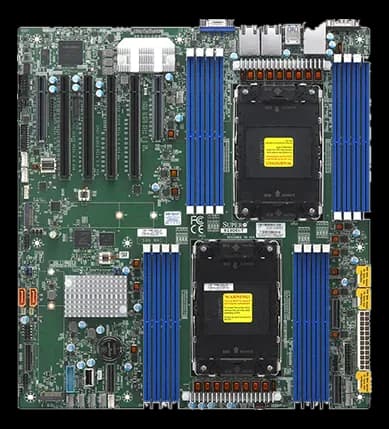

Compatible boards
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| GO-431ATX-PF |
