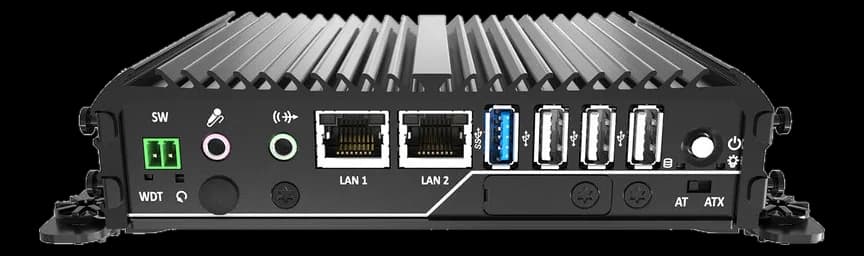

RCO-1000-J1900DIN rail embedded computer with two display outputs
- Manufacturer
- Configurations
- 1 available configurations
RCO-1000-J1900 is a Premio embedded computer for machine control and field visualization: fanless cooling, a 0.69 kg extruded aluminum chassis and DIN rail, VESA or wall mounting.
The quad-core Intel Celeron J1900 processor (up to 2 GHz) is paired with DDR3L up to 8 GB and mSATA storage; the set includes a DVI-I output, two GbE RJ45 ports, two RS-232/422/485 serial ports and a Mini PCIe slot for Wi-Fi/GSM, with overcurrent, overvoltage and reverse polarity protection and operation from -25 to 70 °C.
At a glance
- CPU generation: Bay Trail
- Processor: Intel Celeron J1900 (Quad Core, 2.0 GHz, 2MB Cache)
- Memory: 1× SODIMM DDR3L 1066/1333 MHz (204 pin), max 8 GB
- RAM type: DDR3L
- Maximum RAM: 8 GB
Technical specifications
| CPU generation | Bay Trail |
|---|---|
| Processor | Intel Celeron J1900 (Quad Core, 2.0 GHz, 2MB Cache) |
| Chipset | SoC |
| Memory | 1× SODIMM DDR3L 1066/1333 MHz (204 pin), max 8 GB |
|---|---|
| RAM type | DDR3L |
| Maximum RAM | 8 GB |
| Storage | 1× mSATA (shared with 1× Mini PCIe) |
|---|
| Number of displays | 2 |
|---|---|
| Video outputs | 1× DVI-I1× VGA (via adattatore DVI-VGA)1920 x 1080px, 30hz |
| Ethernet ports | 2× GbE (RJ45) |
|---|---|
| USB ports | 1× USB 3.0USB 2.0 (Type-A) |
| Serial interfaces | 2× RS-232/422/485 |
| Audio | 1× Line-out1× Mic-inRealtek ALC888S |
| Other I/O | 3x WiFi Antenna Holes · 1x Power Switch · 1x AT/ATX Switch · 1x Remote Power On/Off |
| Expansion | Socket Mini PCIe2× Mini PCIe full-size (Wi-Fi/GSM/espansione) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–48 V DC |
| Mounting | DIN Rail MountVESA MountWall Mount |
|---|---|
| Weight | 0.69 kg |
| Chassis material | Extruded aluminum with heavy-duty metal |
| Cooling | Fanless |
|---|---|
| Operating temperature | -25–70 °C |
| Storage temperature | -30–85 °C |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-1000-J1900 V.18 |
