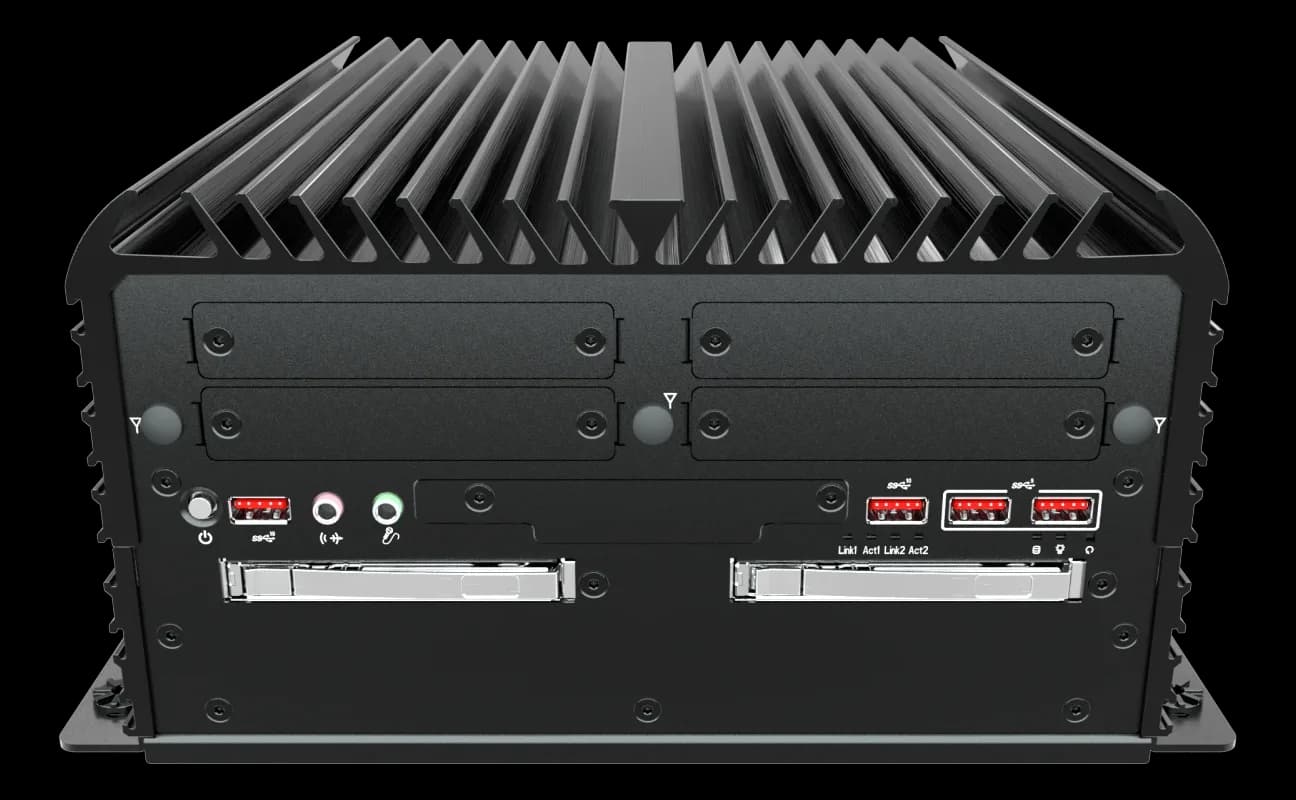

ACO-6000-CML-1Fanless computer for vehicles and railway with Intel 10th gen Comet Lake CPU
- Manufacturer
- Configurations
- 4 available configurations
Embedded computer for in-vehicle and rolling stock applications: extruded aluminium chassis with heavy duty metal and power ignition management. Compliance covers EN 50155, E-Mark, FCC Class A and CE, with shock verified to IEC 60068-2-27 and a design referenced to MIL-STD-810H.
The first focus is computing: 35 W TDP Intel TE CPUs, up to 10 cores (Xeon W-1290TE), and three independent displays across DisplayPort and DVI-I. The second is expansion: the universal I/O slot accepts a 4-port GbE Intel I350 module with RJ-45 or M12 connector (optional PoE), or a 4-port USB module with Renesas controller.
At a glance
- PCIe x16 slot in fanless chassis
- Two hot-swap 2.5" SATA bays
- Up to 64 GB DDR4 ECC
- Isolated digital I/O, 8 in and 8 out
- Two CAN bus interfaces
Technical specifications
| CPU generation | 10th gen (Comet Lake) |
|---|---|
| Chipset | W480E |
| Graphics | Intel® UHD Graphics 630 |
| Memory | 2× SODIMM DDR4 2666/2933 MT/s |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| ECC support | Max. up to 64GB (ECC and Non-ECC) |
| Storage | 2x External SIM socket (Mini PCIe attached)1x Internal 2.5" SATA HDD/SSD Bay (support H=9mm)(optional)2x Removable 2.5" SATA HDD/SSD Bay (support H=7mm, Hot-swappable)(optional) |
|---|
| Number of displays | 3 |
|---|---|
| Video outputs | 1× DVI-I, support resolution 1920× 12002x DisplayPort, support resolution 4096 x 2304, DP++ |
| Ethernet ports | GbE1: Intel I219 (Support Wake-on-LAN and PXE)GbE2: Intel I210 (Support Wake-on-LAN and PXE) |
|---|---|
| USB ports | 2× USB 2.0 header (internal) · 3× USB 3.2 Gen 1 (5 Gbps, 1× Internal)6× USB 3.2 Gen 2 (10 Gbps) |
| Serial interfaces | 2× RS-232/422/485 ; 6× RS-232/422/485 (internal) |
| Audio | 1× Mic-in, 1× Line-out |
| Digital I/O | 8 in / 8 out (Isolated) |
| CAN bus | 2× CAN 2.0 A/B 2-pin Internal header |
| Wireless | 4G/LTE5GBluetooth(5.0)Wi-Fi 6 (802.11ax)(optional) |
|---|
| Expansion | 1x PCI (Optional)1x M.2 (E Key, PCIe x1, USB 2.0, 2230)2x Full-size Mini PCIe4-port GbE module with Intel® I350 Chipset, RJ-45 or M12 connector (PoE optional)4-Port USB with Renesas uPD720201K8 host controller (share PCIe Gen2 x1 bandwidth)1x PCIe x16(optional) |
|---|
| Supply voltage | 48–110 V |
|---|
| Mounting | Wall Mount |
|---|---|
| Dimensions | 240 (W) x 261 (D) x 127.3 (H) mm |
| Weight | 6.9 kg |
| Chassis material | Extruded aluminum with heavy-duty metal |
| Cooling | Fanless |
|---|---|
| Operating temperature | -25–70 °C |
| Storage temperature | -30–85 °C |
| Certifications | CEE-MarkEN 50155FCC(class A) |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| ACO-6000-CML-1E |
| ACO-6000-CML-1E-110V |
| ACO-6000-CML-1E-110V-P |
| ACO-6000-CML-1E-P |
