RCO-1000-ASL-10Fanless mini computer with Intel Atom x7433RE/x7835RE, UL Listed
- Manufacturer
- Configurations
- 23 available configurations

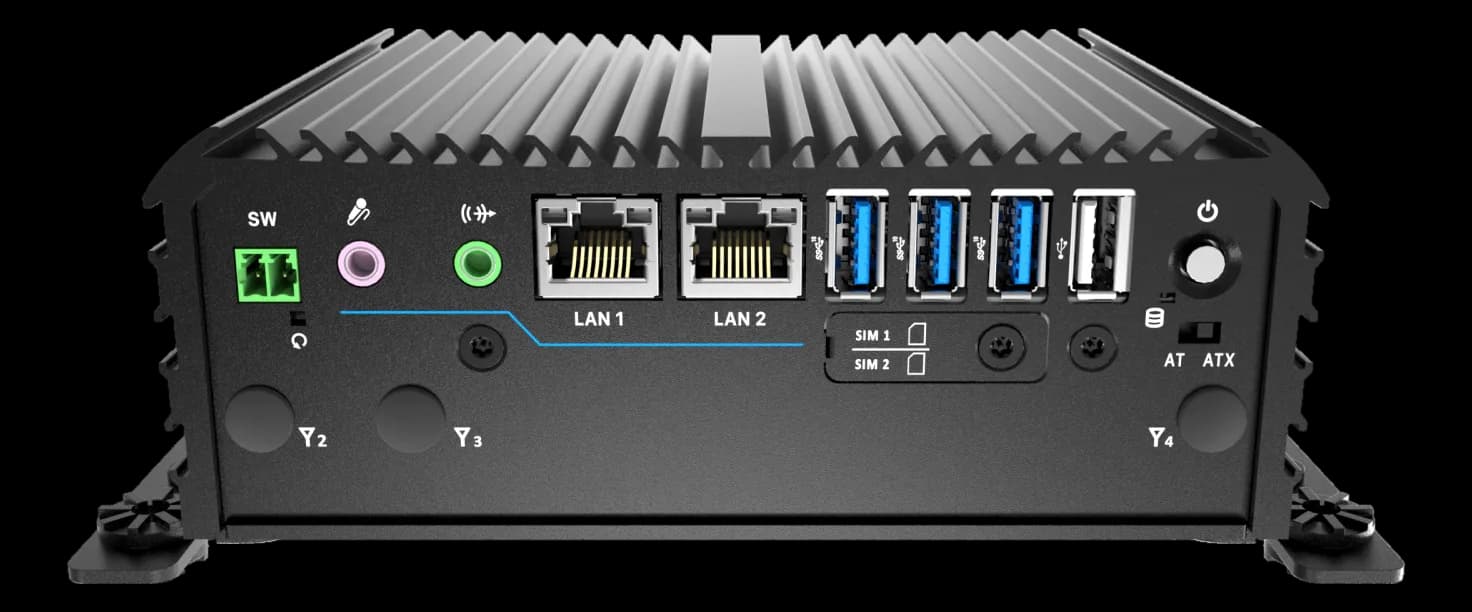

RCO-1000-ASL-10 is a rugged embedded system in extruded aluminium with heavy duty metal structure, 150 × 105 × 56 mm and 0.9 kg. It mounts on the wall as standard, with optional side, VESA or DIN rail kits, and withstands mobile installations thanks to adjustable power-on management (optional IGN module, configurable from BIOS).
Its distinguishing feature is the EDGEBoost I/O universal expansion slot: it can be configured with a 2-Port COM, 4-Port USB, 1-Port DP 1.4 with isolated DIO 4 in / 4 out, or 1-Port HDMI 2.0 with isolated DIO module. Shock resistance is verified according to IEC 60068-2-27, with design compliant with MIL-STD-810H.
Available configurations: RCO-1000-ASL-X7433RE-10-P and RCO-1000-ASL-X7835RE-10-P with power supply, RCO-1000-ASL-X7433RE-10 and RCO-1000-ASL-X7835RE-10 without.
At a glance
- Up to 16 GB DDR5 SODIMM
- Integrated TPM 2.0
- Internal bay for 2.5-inch SATA HDD
- OVP, OCP and reverse polarity protections
- Windows 10/11 and Ubuntu 22.04
Technical specifications
| Processor | Intel Atom® x7835RE 6M Cache(optional) |
|---|---|
| Chipset | SoC |
| Graphics | 1.2 GHz |
| Memory | 1× SODIMM DDR5 262-pin 4800 MT/s |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 16 GB |
| Storage | 1× Internal 2.5" SATA HDD Bay (support H=9.5 mm) |
|---|
| Video outputs | 1× HDMI 1.4b (Resolution up to 3840x2160 @ 30 Hz) |
|---|
| Ethernet ports | 2.5 GbE1: Intel I226 (Support Wake-on-LAN and PXE) |
|---|---|
| USB ports | 3× USB 3.2 Gen 2 (10 Gbps) |
| Serial interfaces | 2× RS-232/422/485 |
| Audio | 1× Mic-in, 1× Line-out |
| CAN bus | 2× CAN 2.0 A/B 2-pin Internal header |
| Other I/O | 1× Ground Screw |
| Wireless | 4G/LTE(optional) |
|---|
| Expansion | 1× M.2 (B Key 2242 / 3042 / 3052) for 4G/SATA Module1× HDMI, 1× DIO(optional)1× DP, 1× DIO(optional)4× USB(optional)2× COM (Port 5,6)(optional)4-Port USB module with USB hub(optional)2-Port COM module with Super I/O Chipset(optional)1-Port DP 1.4 and DIO (4 in / 4 out, Isolated)(optional)1-Port HDMI 2.0 and DIO (4 in / 4 out, Isolated)(optional)2× COM (Port 3,4)(optional) |
|---|
| Power input | 9–36 V |
|---|
| Mounting | Wall Mount(optional)VESA Mount(optional)DIN Rail Mount(optional) |
|---|---|
| Dimensions | 150 (W) x 105 (D) x 56 (H) mm |
| Weight | 0.9 kg |
| Operating temperature | -40–70 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | IEC 62368-1UL 62368-1FCCULCE |
|---|
| Operating systems | Linux(optional)Windows(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-1000-ASL-X7433RE-10 |
| RCO-1000-ASL-X7433RE-10 (BAREBONE) |
| RCO-1000-ASL-X7433RE-10-P |
| RCO-1000-ASL-X7433RE-10C (BAREBONE) |
| RCO-1000-ASL-X7433RE-10D (BAREBONE) |
| RCO-1000-ASL-X7433RE-10G (BAREBONE) |
| RCO-1000-ASL-X7433RE-10H (BAREBONE) |
| RCO-1000-ASL-X7433RE-10U (BAREBONE) |
| RCO-1000-ASL-X7433RE-20 (BAREBONE) |
| RCO-1000-ASL-X7433RE-20CC (BAREBONE) |
| RCO-1000-ASL-X7433RE-20DC (BAREBONE) |
| RCO-1000-ASL-X7433RE-20DU (BAREBONE) |
