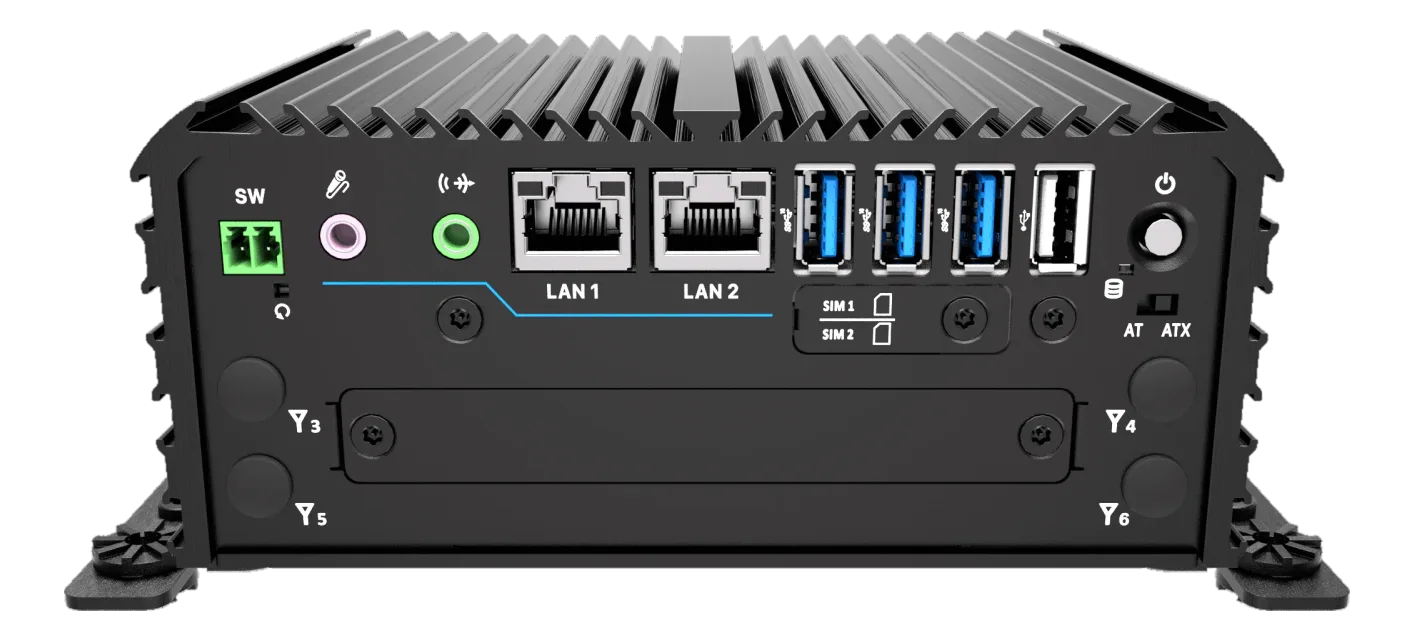

RCO-1000-ASL-20Fanless embedded computer with Intel Atom x7433RE/x7835RE and two EDGEBoost I/O slots
- Manufacturer
RCO-1000-ASL-20 is a rugged mini computer in extruded aluminium with a metal structure, 150 x 105 x 65 mm and 1 kg, designed for automation cabinets, IIoT gateways and on-machine installations. The wide-range power input works in AT and ATX mode, with OVP, OCP and reverse polarity protection.
Its distinguishing feature is the pair of EDGEBoost I/O slots: you can add a 2-Port COM module, a 4-Port USB module, DP 1.4 with isolated DIO or HDMI 2.0 with isolated DIO. The M.2 B-Key slot (2242/3042/3052) accepts storage or 4G/5G modules, with two external SIMs.
Available in the RCO-1000-ASL-X7433RE-20 and RCO-1000-ASL-X7835RE-20 configurations, and in the versions with power supply RCO-1000-ASL-X7433RE-20-P and RCO-1000-ASL-X7835RE-20-P.
At a glance
- Dual 2.5GbE Intel I226 with PXE
- DDR5 SODIMM up to 16 GB
- Shock and vibration per MIL-STD-810H
- UL 62368-1 certified
- TPM 2.0 supported
Technical specifications
| Processor | Intel Atom® x7433RE 6M Cache(optional)Intel Atom® x7835RE 6M Cache(optional) |
|---|---|
| Chipset | SoC |
| Graphics | Intel® UHD Graphics |
| AI module | Hailo-8(optional) |
| CPU TDP | 12 W |
| Memory | 1× SODIMM DDR5 262-pin 4800 MT/s |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 16 GB |
| Storage | 1× Internal 2.5" SATA HDD Bay (support H=9.5 mm) |
|---|
| Video outputs | 1× HDMI 1.4b (Resolution up to 3840x2160 @ 30 Hz) |
|---|
| Ethernet ports | 2.5 GbE1: Intel I226 (Support Wake-on-LAN and PXE) |
|---|---|
| USB ports | 3× USB 3.2 Gen 2 (10 Gbps)4× USB(optional) |
| Serial interfaces | 2× RS-232/422/485 |
| Audio | 1× Mic-in, 1× Line-out |
| CAN bus | 2× CAN 2.0 A/B 2-pin Internal headerCAN Bus, 1x/2× DB9, 2 Ch(optional) |
| Wireless | 4G/LTE5GBluetoothWi-Fi(optional) |
|---|
| Expansion | 1× M.2 (E-Key, 2230, PCIe x1 & USB2.0)2-Port COM module with Super I/O Chipset(optional)1-Port HDMI 2.0 and DIO (4 in / 4 out, Isolated)(optional)1-Port DP 1.4 and DIO (4 in / 4 out, Isolated)(optional)4-Port USB module with USB hub(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | Wall Mount(optional)DIN Rail Mount(optional)VESA Mount(optional) |
|---|---|
| Dimensions | 150 (W) x 105 (D) x 65 (H) |
| Weight | 1 kg |
| Chassis material | Extruded Aluminum with Heavy Duty Metal |
| Operating temperature | -40–70 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | UL 62368-1IEC 62368-1UKCACEFCCICES-003EN 61000-4-2EN 61000-4-3EN 61000-4-4IEC 61000-4-5IEC 61000-4-6 |
|---|
| Operating systems | Linux(optional)Windows(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
