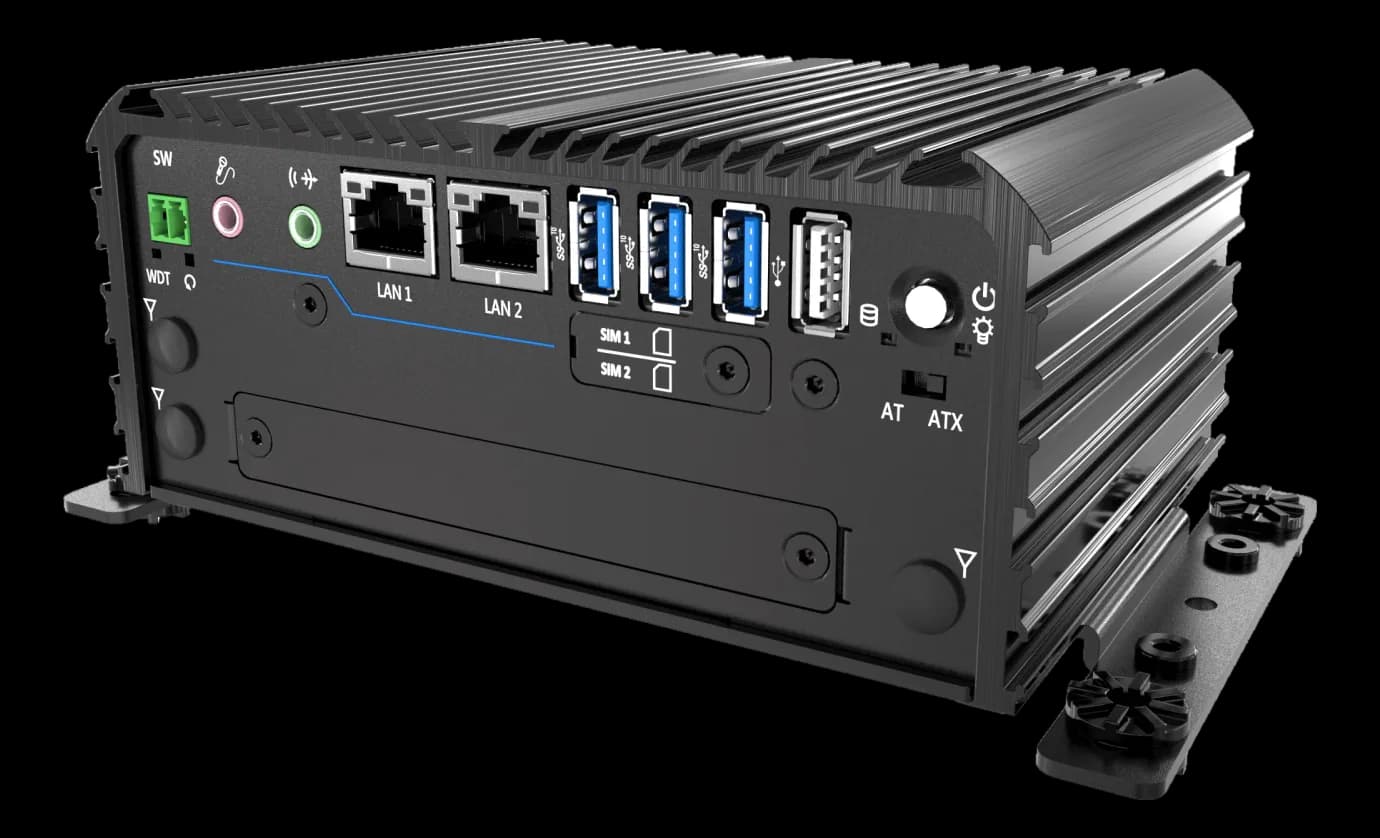

RCO-1000-EHL-20Fanless embedded computer with Intel Atom X6425E Elkhart Lake, UL 62368-1 certified
- Manufacturer
- Configurations
- 3 available configurations
RCO-1000-EHL-20 is a rugged embedded computer with an Intel Atom X6425E (Elkhart Lake) processor at 1.8 GHz and Intel UHD graphics. The fanless and cableless design, measuring 150 (W) x 105 (D) x 65 (H) mm, places it in electrical cabinets, IIoT gateways and automation stations where moving parts are a risk rather than a convenience.
The operating window runs from −40 to 70 °C and the system is designed to comply with MIL-STD-810H; wall mounting is standard, with optional SIDE, VESA and DIN rail kits. The dual independent display over DisplayPort 1.4 works in native dual display mode.
Available configurations: RCO-1000-EHL-X6425E-20-P with 2x EDGEBoost IO, RCO-1000-EHL-X6425E-20C-P with DIO, 1x DP and 4x COM, RCO-1000-EHL-X6425E-20D-P with 6x COM, all supplied with power adapter.
At a glance
- Optional Hailo-8 AI accelerator, 26 TOPS
- 9–36 VDC input
- Shock 50G half sine, IEC 60068-2-27
- DDR4 SODIMM up to 32 GB
- Extruded aluminium chassis, 1 kg
Technical specifications
| CPU generation | Elkhart Lake |
|---|---|
| Processor | Intel® Atom® X6425E |
| Chipset | SoC |
| Graphics | Intel® UHD Graphics |
| Memory | 1× SODIMM DDR4 260-pin 2400/2667/3200 MT/s |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 1× Internal 2.5" SATA HDD Bay (support H=9.5 mm)M.2 NVMe Storage Kit(optional) |
|---|
| Video outputs | 2× DisplayPort 1.4, DP++ (4096× 2160@60Hz)1× HDMI Port(optional) |
|---|
| Ethernet ports | 2.5 GbE2: Intel I225 (Support Wake-on-LAN and PXE) |
|---|---|
| USB ports | 3× USB 3.2 Gen 2 (10 Gbps)4× USB 2.0(optional) |
| Serial interfaces | 2× RS-232/422/4854× COM Ports(optional) |
| Connectors | 3-pin Terminal Block |
| Audio | 1× Mic-in, 1× Line-out |
| Digital I/O | 1× DisplayPort and 1× DIO(4 in / 4 out, Isolated)1× DP, 1× DIO(optional) |
| CAN bus | 2× CAN 2.0 A/B 2-pin Internal header |
| Wireless | 5GWi-Fi4G/LTEBluetooth(optional) |
|---|
| Expansion | 1× Full-size Mini PCIe1-Port HDMI 2.0, Support 1× Universal Slot Only(optional)1-Port DP 1.4 and DIO (4 in / 4 out, Isolated), Support 1× Universal Slot Only(optional)4-Port USB module with USB hub, Support 1× Universal Slot Only(optional)2-port COM module with Super I/O Chipset, Support 2× Universal Slot Only(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | Wall MountDIN Rail Mount(optional)VESA Mount(optional) |
|---|---|
| Dimensions | 150 (W) x 105 (D) x 65 (H) mm |
| Weight | 1 kg |
| Cooling | Fanless(optional) |
|---|---|
| Operating temperature | −40~70 |
| Storage temperature | -40–85 °C |
| Certifications | ULUKCAFCCCEEN 61000-4-2IEC 62368-1UL 62368-1ICES-003 |
|---|
| Operating systems | WindowsLinux |
|---|
| Ordering variants | 1× Wall Mount Kit |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-1000-EHL-X6425E-20-P |
| RCO-1000-EHL-X6425E-20C-P |
| RCO-1000-EHL-X6425E-20D-P |
