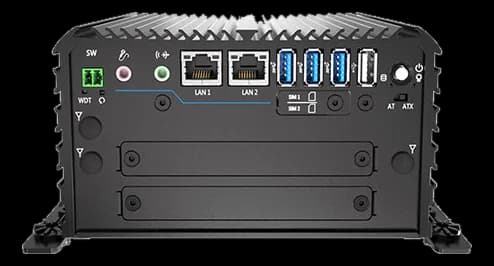

RCO-1000-EHL-30Wall mount embedded computer with Intel Atom x6425E SoC
- Manufacturer
- Configurations
- 1 available configurations
RCO-1000-EHL-30 is a Premio embedded computer for distributed control and plant data collection points: wall mounting and a 150 × 83 × 105 mm chassis at 1.2 kg.
The Intel Atom x6425E SoC (Elkhart Lake) with integrated Intel graphics is paired with DDR4 up to 32 GB and storage on a 2.5" SATA bay and mSATA; two DisplayPort, two GbE ports, three USB 3.2, two RS-232/422/485 serial ports and one Mini PCIe slot complete the set, with DC power input and operation from -40 to 70 °C.
At a glance
- CPU generation: Elkhart Lake
- Processor: Intel Atom x6425E
- Memory: DDR4, max 32 GB
- RAM type: DDR4
- Maximum RAM: 32 GB
Technical specifications
| CPU generation | Elkhart Lake |
|---|---|
| Processor | Intel Atom x6425E |
| Chipset | SoC |
| Graphics | Intel Graphics |
| Memory | DDR4, max 32 GB |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 1× mSATA1× bay 2.5" SATA HDD, interno |
|---|
| Video outputs | 2× DisplayPort |
|---|
| Ethernet ports | 2× GbE |
|---|---|
| USB ports | 3× USB 3.2 |
| Serial interfaces | 2× RS-232/422/485 |
| Audio | 1× Mic-in / Line-out |
| Expansion | 1× Mini PCIe |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 150 × 83 × 105 mm |
| Weight | 1.2 kg |
| Operating temperature | -40–70 °C |
|---|---|
| Storage temperature | -40–85 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-1000-EHL-30C-X6425E V.13 |
