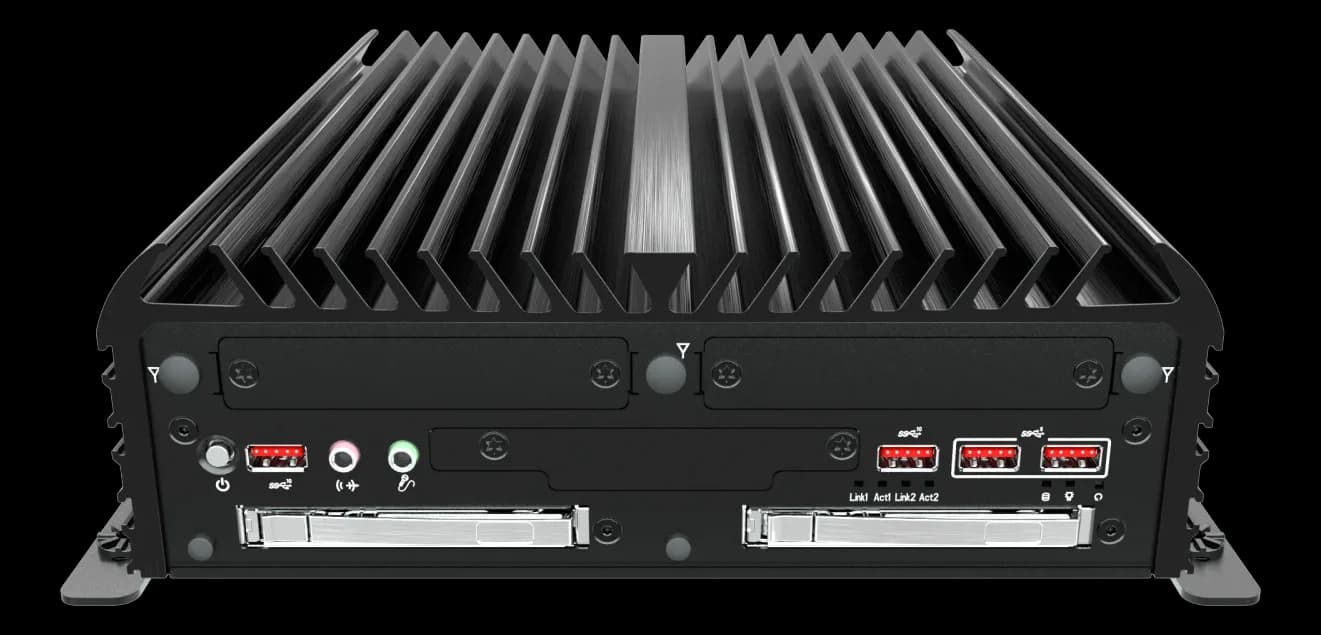

ACO-6000-CMLFanless embedded computer for rail and vehicles, Intel Core and Xeon 10th Gen Comet Lake
- Manufacturer
- Configurations
- 3 available configurations
ACO-6000-CML is an in-vehicle computer designed for installation on board trains and vehicles: extruded aluminum chassis with heavy-duty metal, wall mounting and passive cooling. It complies with CE, FCC Class A, EN 50155 and E-Mark, so it fits both the railway and the automotive framework.
The W480E chipset supports up to 64 GB of DDR4 memory on two SODIMMs, including ECC: protected data, not just capacity. The three 2.5" SATA bays operate in RAID 0, 1 or 5, and a Universal I/O slot accepts an optional GbE or 10GbE networking, USB or M.2 for 5G module, so you can adapt the system without changing platform.
At a glance
- CPU up to Intel Xeon W-1290TE
- Optional 48–110 VDC input
- Integrated power ignition management
- Designed to MIL-STD-810H
- Three independent displays
Technical specifications
| CPU generation | 10th gen (Comet Lake) |
|---|---|
| Processor | Intel® Core™ i3-10100TE(optional)Intel® Core™ i5-10500TE(optional)Intel® Core™ i7-10700TE(optional)Intel® Core™ i9-10900TE(optional)Intel® Xeon® W-1290TE(optional) |
| Chipset | W480E |
| Memory | 2× SODIMM DDR4 2666/2933 MT/s |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 2x External SIM socket (Mini PCIe attached)1x Internal 2.5" SATA HDD/SSD Bay (support H=9mm)(optional)2x Removable 2.5" SATA HDD/SSD Bay (support H=7mm, Hot-swappable)(optional) |
|---|
| Number of displays | 3 |
|---|---|
| Video outputs | 1× DVI-I, support resolution 1920× 12002x DisplayPort, support resolution 4096 x 2304, DP++ |
| Ethernet ports | GbE1: Intel I219 (Support Wake-on-LAN and PXE)GbE2: Intel I210 (Support Wake-on-LAN and PXE) |
|---|---|
| USB ports | 6× USB 3.2 Gen 2 (10 Gbps) · 3× USB 3.2 Gen 1 (5 Gbps, 1× Internal)2× USB 2.0 header (internal) |
| Serial interfaces | 2× RS-232/422/485 ; 6× RS-232/422/485 (internal) |
| Audio | 1× Mic-in, 1× Line-out |
| Digital I/O | 8 in / 8 out (Isolated) |
| CAN bus | 2x CAN 2.0 A/B 2-pin Internal header |
| Wireless | 4G/LTE5GWi-Fi 6 (802.11ax)Bluetooth(5.0) |
|---|
| Expansion | 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)2x Full-size Mini PCIe4-port GbE module with Intel® I350 Chipset, RJ-45 or M12 connector (PoE optional)1× M.2 for 5G (B Key, PCIe x4, USB 3.0, 3042/3052), Including 2× SIM socket, 1× SIM(optional)2-Port RJ45 10GbE with Intel X710 Chipset(optional)4-Port USB with Renesas uPD720201K8 host controller(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 48–110 V |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 240 (W) x 261 (D) x 79.2 (H) |
| Weight | 3.1–3.5 kg |
| Chassis material | Extruded aluminum with heavy-duty metal |
| Operating temperature | -25–70 °C |
|---|---|
| Storage temperature | -30–85 °C |
| Certified market sectors | Railway |
|---|---|
| Certifications | CEE-MarkEN 50155FCC(class A) |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| ACO-6000-CML-110V |
| ACO-6000-CML-110V-P |
| ACO-6000-CML-P |
