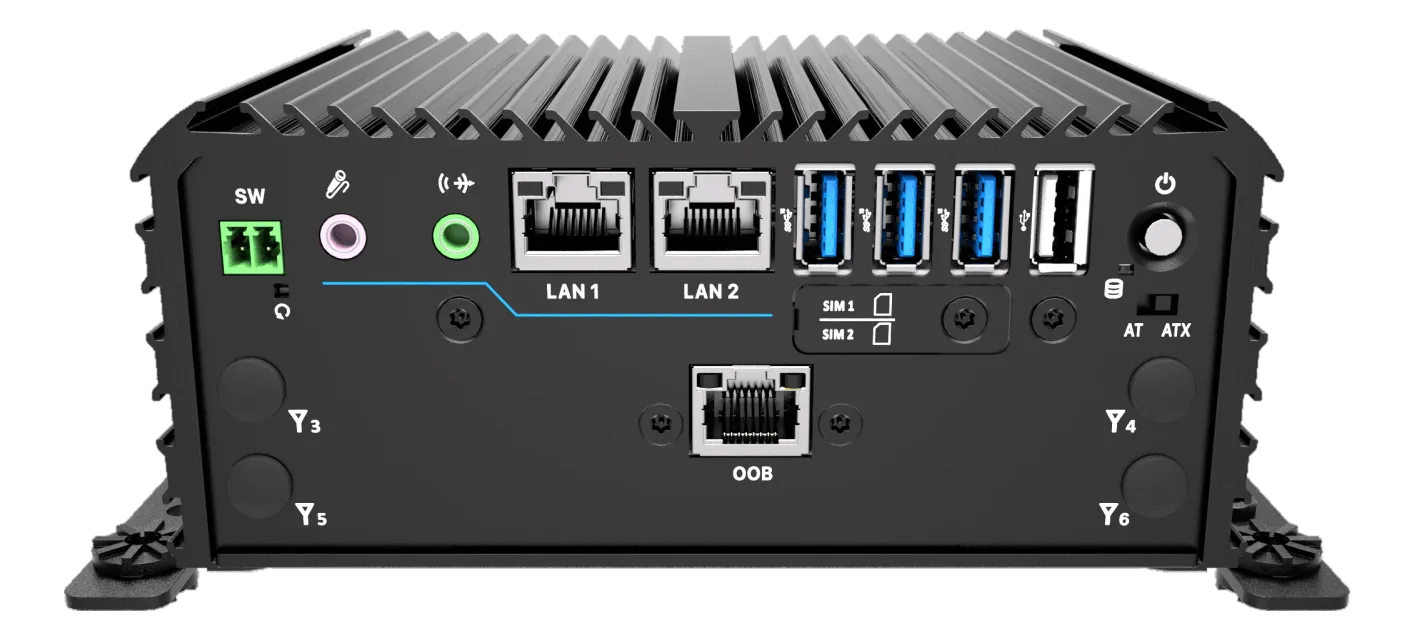

RCO-1000-ASL-20-OOBFanless mini computer Intel Atom x7433RE/x7835RE with OOB, UL 62368-1 certified
- Manufacturer
- Configurations
- 4 available configurations
RCO-1000-ASL-20-OOB is a fanless embedded computer with an extruded aluminium and heavy duty metal chassis measuring 150 x 105 x 65 mm and weighing 1 kg: it is installed in cabinets, on board machines and as an IoT gateway where there is neither space nor filtered air. Wall mounting is standard, while side, VESA and DIN-Rail mounting are optional.
The distinguishing axis is the CPU/environment pairing: Intel Atom x7433RE, 4 cores, 9 W as the default configuration, or x7835RE, 8 cores, 12 W, both in a fanless enclosure rated from −40 to 70 °C and designed according to MIL-STD-810H. The M.2 B-Key slot accepts 4G LTE MDG200, 5G MDG230 or Hailo-8 TPU modules, not only storage.
Configurations: RCO-1000-ASL-X7433RE-OOB and RCO-1000-ASL-X7835RE-OOB, also available in the RCO-1000-ASL-X7433RE-OOB-P and RCO-1000-ASL-X7835RE-OOB-P variants with a 60 W AC/DC 12 V/5 A power supply.
At a glance
- Out-of-band remote management on dedicated RJ45
- 9~36 VDC input
- DDR5 SODIMM up to 16 GB
- 50G half sine shock, IEC 60068-2-27
- UL 62368-1 4th Edition safety
Technical specifications
| Processor | Intel Atom® x7433RE 6M Cache(optional)Intel Atom® x7835RE 6M Cache(optional) |
|---|---|
| Chipset | SoC |
| Graphics | Intel® UHD Graphics |
| AI module | Hailo-8(optional) |
| Memory | 1× SODIMM DDR5 262-pin 4800 MT/s |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 16 GB |
| Storage | 1× Internal 2.5" SATA HDD Bay (support H=9.5 mm) |
|---|
| Video outputs | 1× HDMI 1.4b (Resolution up to 3840x2160 @ 30 Hz) 1x DisplayPort (3840 x 2160@60Hz) |
|---|
| Ethernet ports | 2x 2.5GbE (Wake-on-LAN and PXE) |
|---|---|
| USB ports | 3× USB 3.2 Gen 2 (10 Gbps) 1x USB 2.0 |
| Serial interfaces | 4× RS-232/422/485 |
| Audio | 1× Mic-in, 1× Line-out |
| CAN bus | 2× CAN 2.0 A/B 2-pin Internal header |
| Wireless | 5G(optional)4G/LTE(optional) |
|---|
| Expansion | 1× M.2 (E-Key, 2230, PCIe x1 & USB2.0) |
|---|
| Power input | AT, ATX Optional AC/DC 12V/5A, 60W |
|---|
| Mounting | DIN Rail Mount(optional)VESA Mount(optional)Wall Mount(optional) |
|---|---|
| Dimensions | 150 (W) x 105 (D) x 65 (H) |
| Weight | 1 kg |
| Chassis material | Extruded Aluminum with Heavy Duty Metal |
| Operating temperature | -40–70 °C |
|---|
| Certifications | ULUL 62368-1EN 61000-4-2IEC 62368-1CEFCCICES-003UKCA |
|---|
| Operating systems | Linux(optional)Windows(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-1000-ASL-X7433RE-OOB |
| RCO-1000-ASL-X7433RE-OOB-P |
| RCO-1000-ASL-X7835RE-OOB |
| RCO-1000-ASL-X7835RE-OOB-P |
