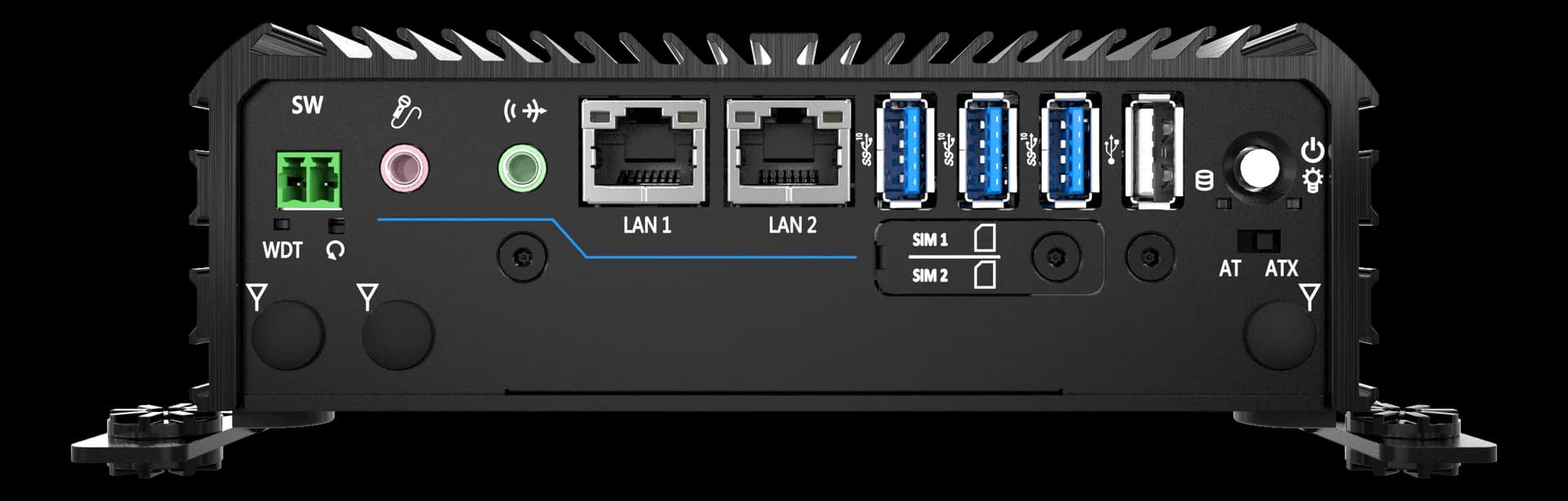

RCO-1000-EHL-10Ultra-compact fanless embedded computer with Intel Atom x SoC
- Manufacturer
- Configurations
- 6 available configurations
RCO-1000-EHL-10 is a Premio embedded computer for machine control and field data collection: passive fanless cooling, an ultra-compact 150 × 49 × 105 mm chassis at 0.9 kg, CE, FCC and UL certifications.
The quad-core Intel Atom x Elkhart Lake SoC runs at 1.8 GHz with a 12 W TDP, with DDR4 up to 32 GB; storage provides a 2.5" SATA bay and an mSATA slot, and the set includes two DisplayPort 1.4 (4K at 60 Hz), two COM ports, an M.2 B-Key slot for 4G/5G modules and DC power input.
At a glance
- CPU generation: Elkhart Lake
- Processor: Supports 11th Gen Intel® Atom® Processors X Series (Elkhart Lake)
- CPU TDP: 12 W
- Memory: 1× SODIMM DDR4 2400/2667/3200 MT/s (260 pin), max 32 GB
- RAM type: DDR4
Technical specifications
| CPU generation | Elkhart Lake |
|---|---|
| Processor | Supports 11th Gen Intel® Atom® Processors X Series (Elkhart Lake) |
| CPU TDP | 12 W |
| Memory | 1× SODIMM DDR4 2400/2667/3200 MT/s (260 pin), max 32 GB |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 1× mSATA (condiviso con 1× Mini PCIe)1× bay 2.5" SATA HDD1× bay 2.5" SATA HDD (H 9.5 mm), interno |
|---|
| Video outputs | 2× DP(DisplayPort)2× DisplayPort 1.4, DP++ (4096×2160@60Hz)(4096x2160) |
|---|
| Serial interfaces | 2× COM |
|---|
| Expansion | 1× Universal I/O Bracket (interfaccia Mini PCIe, modulo proprietario Premio)1× M.2 B-Key 2242/3042/3052 (PCIe x1 + USB 3.2 Gen2, moduli 4G/5G)(WWAN) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Dimensions | 150 × 49 × 105 mm |
|---|---|
| Weight | 0.9 kg |
| Cooling | Fanless |
|---|
| Certifications | FCCCEUL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-1000-EHL-10-X6425E V.13 |
| RCO-1000-EHL-10A-X6425E V.13 |
| RCO-1000-EHL-10B-X6425E V.13 |
| RCO-1000-EHL-10G-X6425E V.13 |
| RCO-1000-EHL-10H-X6425E V.13 |
| RCO-1000-EHL-10U-X6425E V.13 |
