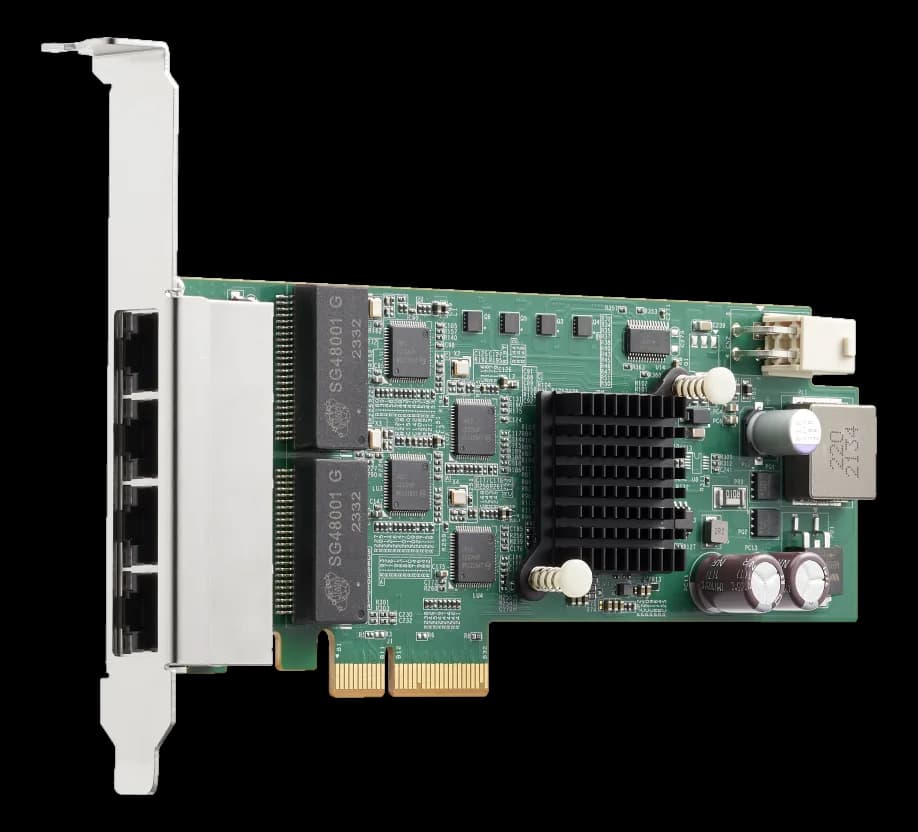

PCIe-GIE74V4-channel PCIe x4 GigE Vision frame grabber with IEEE 802.3af PoE
- Manufacturer
ADLINK PCIe-GIE74V is a 4-channel PCI Express x4 GigE Vision frame grabber with IEEE 802.3af PoE and overcurrent and overvoltage protection. Each port supports up to 1 Gb/s, with hardware IEEE 1588 PTP, 9 kB jumbo frames and link aggregation. Multiple boards and cameras can operate in the same system.
At a glance
- Up to 1 Gb/s per port
- Hardware IEEE 1588 PTP
- 9 kB jumbo frames
- Link aggregation supported
- Multiple boards and cameras in one system
Technical specifications
| Ethernet ports | 4 fully-integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports · up to 1 Gb/s per port |
|---|
| Channels | 4 |
|---|
| Board function | Frame grabber / video acquisition |
|---|---|
| Architecture standard | PCI Express(optional) |
| Bus interface | PCI Express® x4 compliant |
| Supply voltage | +3.3V max @ 3A |
|---|
| Dimensions | 167.6 mm x 64.9 mm (6.6” x 2.6”) (W x L) |
|---|---|
| Weight | 0.116 kg |
| Operating temperature | 0–50 °C0–55 °C |
|---|
| Operating systems | Windows |
|---|
| Ordering variants | PCIe-GIE74V (PN : 91-18531-4000) Power over Ethernet frame grabber(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
