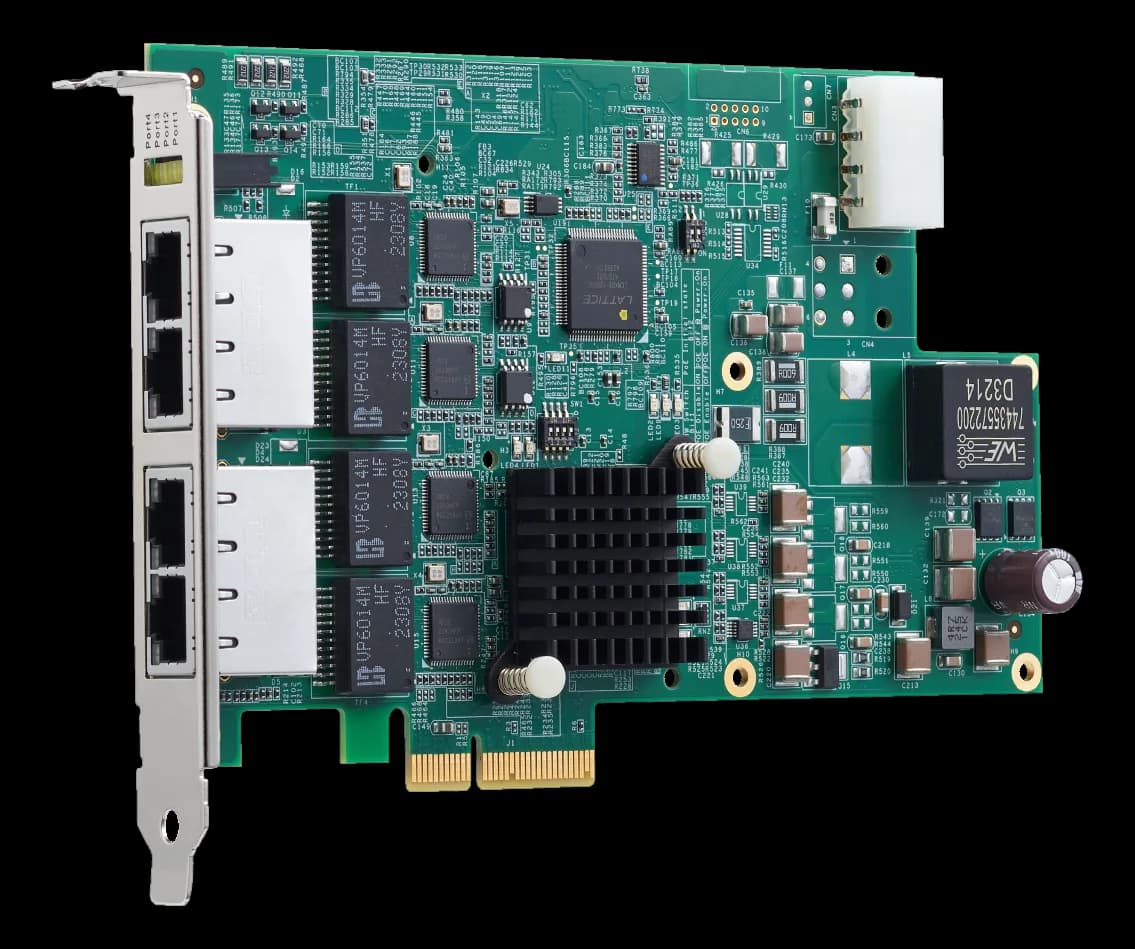

PCIe-GIE74P4-channel GigE Vision PoE+ frame grabber on PCI Express x4
- Manufacturer
- Configurations
- 3 available configurations
Acquisition card for machine vision systems with GigE Vision cameras powered over the same Ethernet cable. You can install multiple cards in the same system without occupying I/O resources and increase the number of cameras on a single industrial PC, including fanless ones, for industrial automation applications.
The first aspect that sets it apart is system protection: overcurrent, overvoltage and short-circuit protection on the PoE ports, overtemperature protection and automatic power budget control that regulates power port by port, rather than a fixed supply. The second is synchronization: IEEE 1588 (PTP) implemented in hardware, with Link Aggregation available on the ports.
At a glance
- Up to 30 W PoE+ per port
- 9 kB jumbo frames
- Operating temperature 0~70 °C
- Up to 20 W PoE from PCIe slot
- Drivers for Windows and Linux
Technical specifications
| Ethernet ports | PoE+ (Power over Ethernet Plus), IEEE 802.3at compliant, supporting 0, 1, 2, 3, and 4, up to 30W9 kB jumbo frame supportIEEE 802.3at for PoE+ (Power over Ethernet Plus)Link Aggregation, IEEE 1588 (PTP technology)Powered Device (PD) auto detection and classificationup to 1 Gb/s per portup to 30W power and automatic detection |
|---|---|
| Other I/O | Multiple cards, multiple cameras, in a single system · Multiple cards and multiple cameras |
| Board function | Frame grabber / video acquisition |
|---|---|
| Architecture standard | PCI Express(optional) |
| Bus interface | PCI Express® x4 compliant |
| Supply voltage | Max 20W PoE power w/ PCIe slot (+12V@2.1A) | +3.3V max @ 3A · Up to 20/60 power from PCIe |
|---|
| Dimensions | 167.6 mm x 106.6 mm (6.6” x 4.2”) (W x L) |
|---|
| Operating temperature | 0–70 °C |
|---|
| Operating systems | LinuxWindows(optional) |
|---|---|
| Driver & SDK | Easy-to-use utility and API provided for PoE power management · C#/VB.NET/VC++ |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
