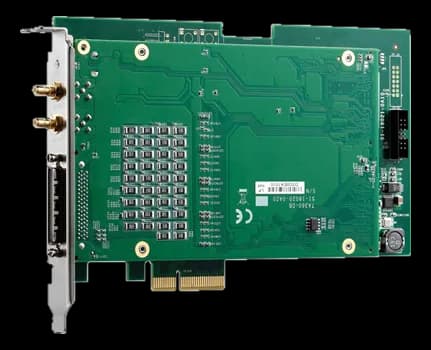

PCIe-7360High-speed PCI Express x4 digital I/O board
- Manufacturer
PCIe-7360 is a high-speed digital I/O board for the PCI Express bus, used in functional test and in the acquisition of synchronous digital streams coming from external equipment.
Logic levels are selectable in software among 1.8, 2.5 and 3.3 V, with direction set per group of channels. The sampling clock can enter or leave through the SMB connectors with AC coupling, while the internal clock reaches 100 MHz and its phase is adjustable in 80 steps.
At a glance
- Channels: 32 channel
- Acquisition specifications: Input protection: from −1 to +6 V
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
- Operating temperature: 0–55 °C
Technical specifications
| Digital I/O | 32× DIO high-speed (selectable 1.8/2.5/3.3 V levels, direction per group of 8) + 8× AFI |
|---|---|
| Connectors | SMBVHDCI |
| Other I/O | up to 100 MHz (support 8/16/24/32-bit data width for DI/DO) |
| Channels | 32 channel |
|---|---|
| Input impedance | 10 kΩ ohm |
| Input coupling | AC |
| Trigger modes | SoftwareExternal digital trigger |
| Acquisition specifications | Input protection: from −1 to +6 VExternal clock phase shift: 80 steps of 4.5°(resolution)Input thresholds: V_IH min 1.2/1.6/2 V for 1.8/2.5/3.3 V levels(range) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | 400 MB/sProgrammable I/O, bus-mastering DMA with scatter-gatherx4 PCI Express interface |
| Power consumption | 3.24–6.6 W(+12V) |
|---|
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–70 °C |
| Operating systems | LinuxWindows |
|---|---|
| Driver & SDK | LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
