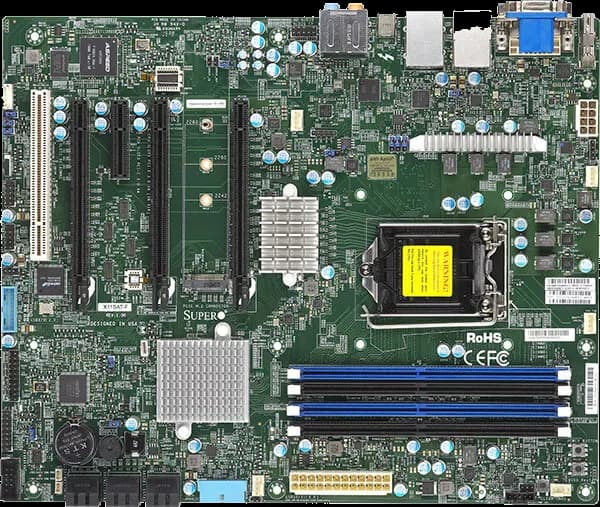

MBD-X11SAT-FATX C236 motherboard with LGA1151 socket and ECC memory
- Manufacturer
- Configurations
- 2 available configurations
MBD-X11SAT-F is a motherboard in ATX form factor for workstations and entry servers, to be integrated in standard enclosures without mechanical work.
The LGA1151 socket takes Intel Xeon, Core i7, i5 and i3, Pentium and Celeron processors of the 6th generation, with TDP up to 95 W, while the C236 chipset enables DDR4 memory with error correction. The board works from 0 to 50 °C and withstands storage from -20 to 60 °C; a serial port remains available for the service console.
At a glance
- CPU generation: 6th gen (Skylake)
- CPU TDP: 95 W
- CPU class: Intel Celeron/Pentium
- CPU socket: LGA1151
- RAM type: DDR4
Technical specifications
| BIOS | 128 Mb SPI AMI BIOS® SM Flash UEFI BIOSPlug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup |
|---|---|
| CPU generation | 6th gen (Skylake) |
| CPU TDP | 95 W |
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9Intel Xeon |
| Chipset | C236 |
| CPU socket | LGA1151 |
| RAM type | DDR4 |
|---|---|
| ECC support | Yes |
| Memory | 4 DIMM slots Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/sIntegrated memory controller supports up to 64 GB of DDR4 ECC/Non-ECC UDIMM memory with speeds of up to 2133MHz2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs |
| Storage | Six SATA 3.0 ports supported by Intel PCH (I-SATA 0-5)Intel® C236 controller for 6 SATA3 (6 Gbps) ports |
|---|
| Video outputs | 1 VGA port(s), 1 DVI - D port(s)VGA on X11SAT-F only |
|---|
| USB ports | 4 USB 3.1 Gen1 port(s) (4 via header) |
|---|---|
| Ethernet ports | Single LAN with Intel® Ethernet Controller I210-AT, + Single Intel Ethernet PHY i219LMIntel I219LM Gigabit Network Controller (vPro support)Intel I210AT Gigabit Network Controller (LAN2, shared with IPMI) |
| Serial interfaces | One COM header |
| Form factor | ATX |
|---|
| Expansion | One M.2 PCIe (M.2 SOCKET)3 PCIe 3.0 x16, 1 PCIe 3.0 x1 1 - 5V PCI 32bit ***3 PCIex16 slots are running at 16/NA/16 or 16/8/8.*** ***PCIe x1 is in x4 slot***One PCI 33MHz (SLOT1) |
|---|
| Storage temperature | -20–60 °C |
|---|---|
| Operating temperature | 0–50 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| MBD-X11SAT-F-B |
| MBD-X11SAT-F-O |
