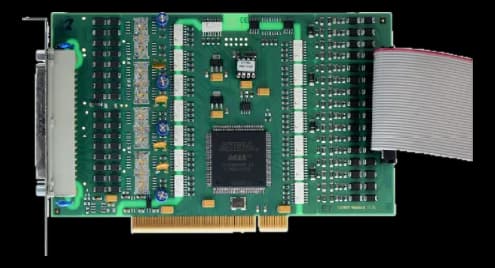

APCI-156432-channel PCI digital board with 1000 V isolation
- Manufacturer
APCI-1564 is a digital input and output board for the PCI bus, meant to connect an industrial PC to the status and command signals of a machine. The channels are opto-isolated, so the cabinet potential stays separate from the computer one.
The board carries protection against overvoltage and over-temperature, acting on the channels without external sacrificial parts.
The form factor is 171 × 99 mm and takes a single PCI slot, a size that fits cabinet-mounted industrial PCs and rack systems.
At a glance
- Watchdog: Yes
- Channels: 64 channel
- Acquisition specifications: High-side outputs (load to ground, IEC 1131-2)
- Isolation voltage: 1000 V (optoisolatori)
- Board function: Analog and digital I/O
Technical specifications
| Watchdog | Yes |
|---|
| Digital I/O | 32× isolated DI (24 V, 16 interruptible) + 32× isolated DO (high-side, 10–36 V, 500 mA/channel) |
|---|---|
| Connectors | D-Sub(male · front)D-Sub(male)Pin header(40-pin header (digital inputs)) |
| Channels | 64 channel |
|---|---|
| Counter | 3Timer 12-bit |
| Acquisition specifications | High-side outputs (load to ground, IEC 1131-2)24 V inputs: current 10.5 mA (ch 0–3) / 5 mA (ch 4–31); UH 19–26 V, UL max 14 V(range)RDS ON 0.4 Ω max; short/output 1.5 A (shutdown at 24 V, Rload<0.1 Ω); turn-on 94 µs, turn-off 8 µs(misc) |
| Isolation | Yes |
| Isolation voltage | 1000 V (optoisolatori) |
| I/O protection | OvertemperatureOvervoltage |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI |
| Bus interface | 32-bit, 33 MHz, PCI interfacePCI 32 bit, 5 V (spec. 2.1 PCISIG) |
| Supply voltage | 10–36 V |
|---|---|
| Power consumption | 2.05 W(+5 V) |
| Dimensions | 171 × 99 mm |
|---|---|
| Weight | 0.16 kg |
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -25–70 °C |
| Certifications | IEC 61010-1 |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
